REED now offers Pan Mixers!

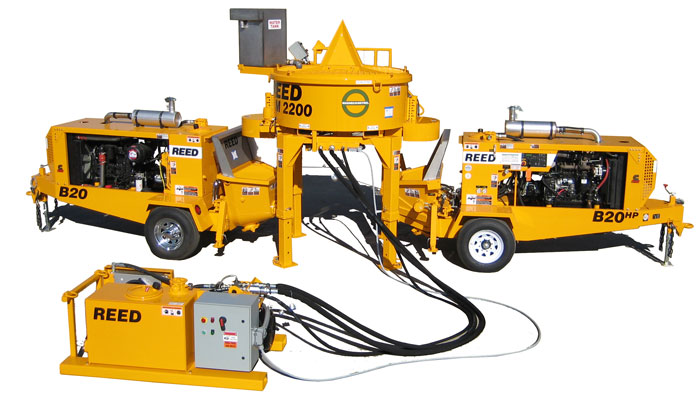

REED's new Pan Mixer can mix a 2200 lb (998 kg) batch of materials in 3 minutes. The mixer then quickly discharges the material into the pump hopper to be either sprayed or pumped.

The M2200 features:

  • Variable Speed Mixer Blade Rotation (Hydraulic Motor Drive, 59 RPM maximum, Torque 13762 Nm)
  • Manual Retractable Legs, 4 each
  • ForkLift Tubes and Lifting Eye Kit for Easy Lifting and Transport
  • Work Platform with Control Box and Safety Railing
  • Quarter Panel Safety Grates Cover with Cutoff Switch
  • Stainless Steel Water Tank for Precise Water Measurement (optional)(plastic is standard)
  • Bolt-on Style Paddles for Easy Change-Out
  • Bag splitter
  • NEMA 4 Fully Enclosed Weather Proof Control Box mounted on operator platform
  • Power On-Off, Mixer Stop-Start, E-Stop, Horn-Reset, Mixer RPM Control, Primary Discharge Open-Close, CleanOut Discharge Open-Close, CleanOut Tilt Up-Down, Hydraulic pressure gage and Amp meter


Dimensions:
  • Length: 96” (8 ft, 0 inches)
  • Width: 86” (7 ft, 2 inches)
  • Height:
  • minimum: 102” (8 ft, 6 inches) (for transport)
  • maximum: 154” (12 ft, 11 inches) (for operation at max height)
  • minimum clearance under discharge door: 47” (3 ft, 11 inches)
  • maximum clearance under discharge door: 77” (6 ft, 5 inches)
  • Weight: Mixer: 6600lbs*


*(Optional Hydraulic Power Pack)

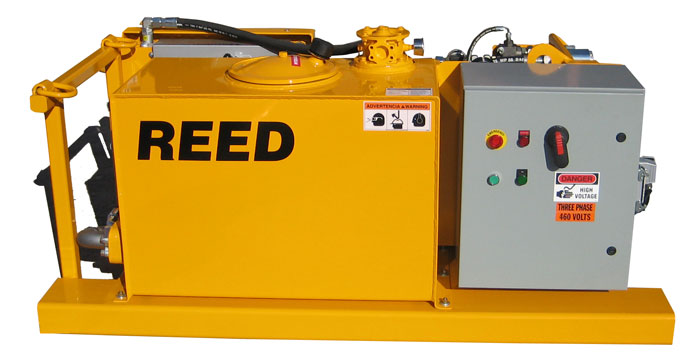

The M2200 Pan Mixer can also be powered by a small Hydraulic Power Pack (sold separately). Power Pack information is as follows:

  • Electric Power: 50 HP, 440 V, 3 Phase, 60 Hz (50 Hz is also available)
  • Diesel power (optional)
  • Variable Displacement Hydraulic Piston Pump (displacement 71cc)
  • Quick Disconnects (Hydraulic, Electrical) for ease of set-up and clean-up
  • Power Pack will store under the M2200 mixer during transport
The M2200 Pan Mixer was designed for easy to transport (as shown below). The four legs of the mixer quickly shorten to reduce the shipping height. The water tank folds downward for transport. The hydraulic Power Pack slides underneath the mixer. A forklift driver can quickly unload the M2200 from a flatbed truck using the forklift tubes on the mixer and the power pack (see below).


*(REED's M2200 Pan Mixer and optional power pack collapsed for transport)

*Specifications subject to change without prior notice.
