"Mine 30" - Mini Pump

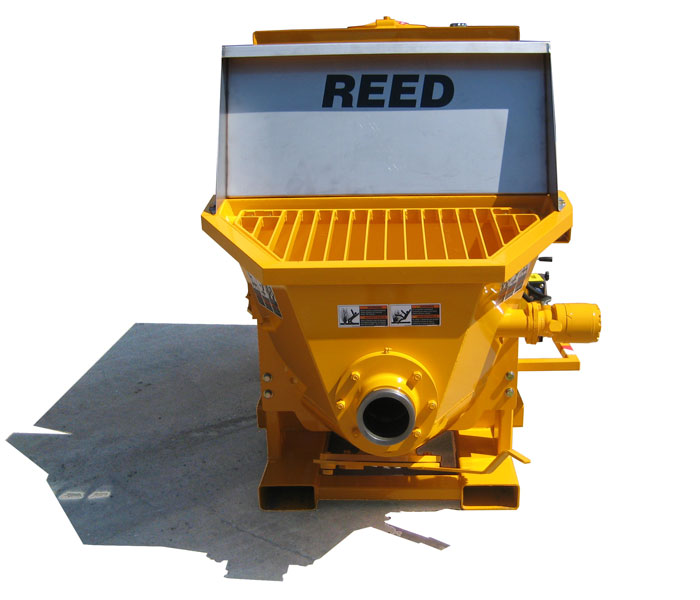

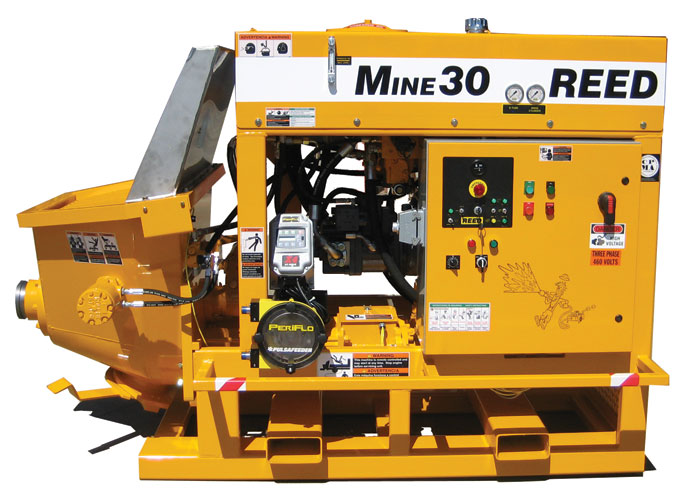

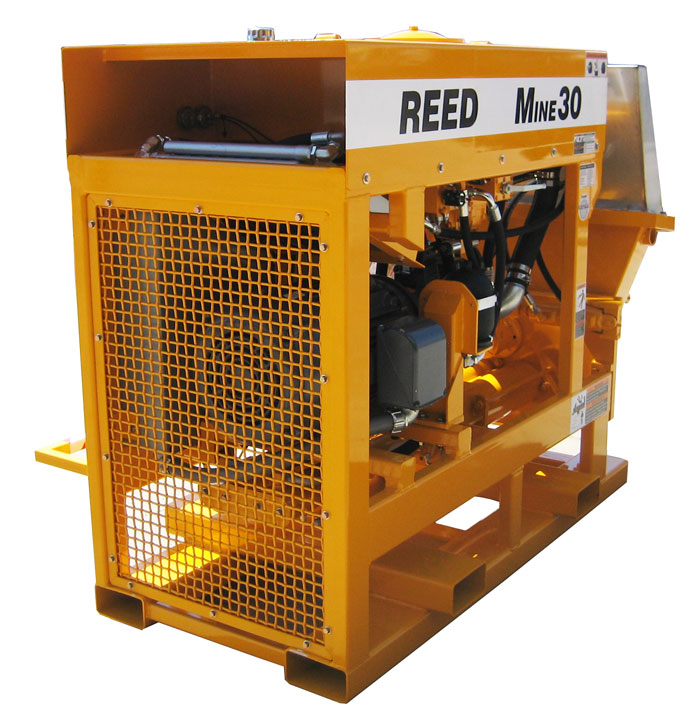

*(REED Mine30 Concrete Pump with Optional Chemical Dosing Pump)

REED's extremely compact Mine 30 Model Pump was designed for jobsites with very limited space. (dimensions length 96" (2438mm) x width 46.5" (1181mm) x height 64.7" (1643mm)) This mini concrete, grout, and shotcrete pump is small enough to be cross mounted on a truck or mine carrier for underground applications such as mining and tunnelling.

The Mine 30 features:

  • “S”-Tube (6" x 5") (152mm x 127mm) can pump grout, flowable fill, pea-gravel mixes, shotcrete mixes, steel fiber mixes, even “big rock” concrete with aggregates up to 1.5” (38mm).

  • ForkLift Tubes on the End and Side for easy lifting and transport (standard)

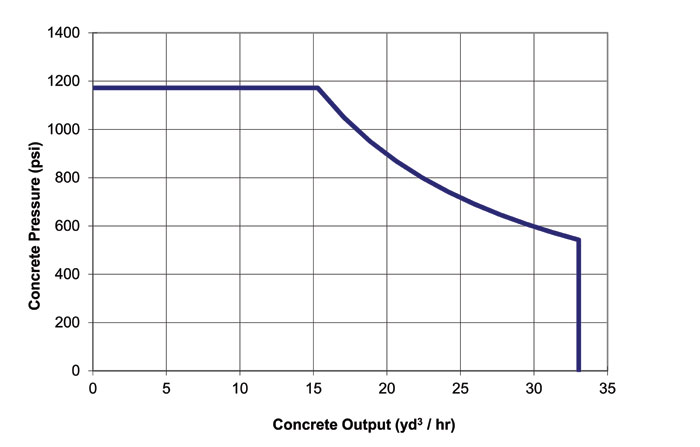

  • Maximum output of 30 cubic yards per hour (23 cubic meters per hour) and 1172 psi (81 bar) concrete pressure (with 50 hp (37 kW) 60Hz electric motor)

  • Chromed 6" (152 mm) Diameter Concrete Cylinders provide long service life

  • Polyurethane Piston Cups for inexpensive and simple wear part replacement




*Click HERE for Specification Sheet (PDF) for REED Mine 30 Mini Pump*

*Specifications subject to change without prior notice.
