REFERENCE ONLY!

*These photos and part numbers are all subject to change without prior notification.



HOPPER / S-TUBE DRAWINGS WITH NOTES - check the serial number log to see which version you have

PHOTOS OF BOOM PUMP PARTS - in numerical order

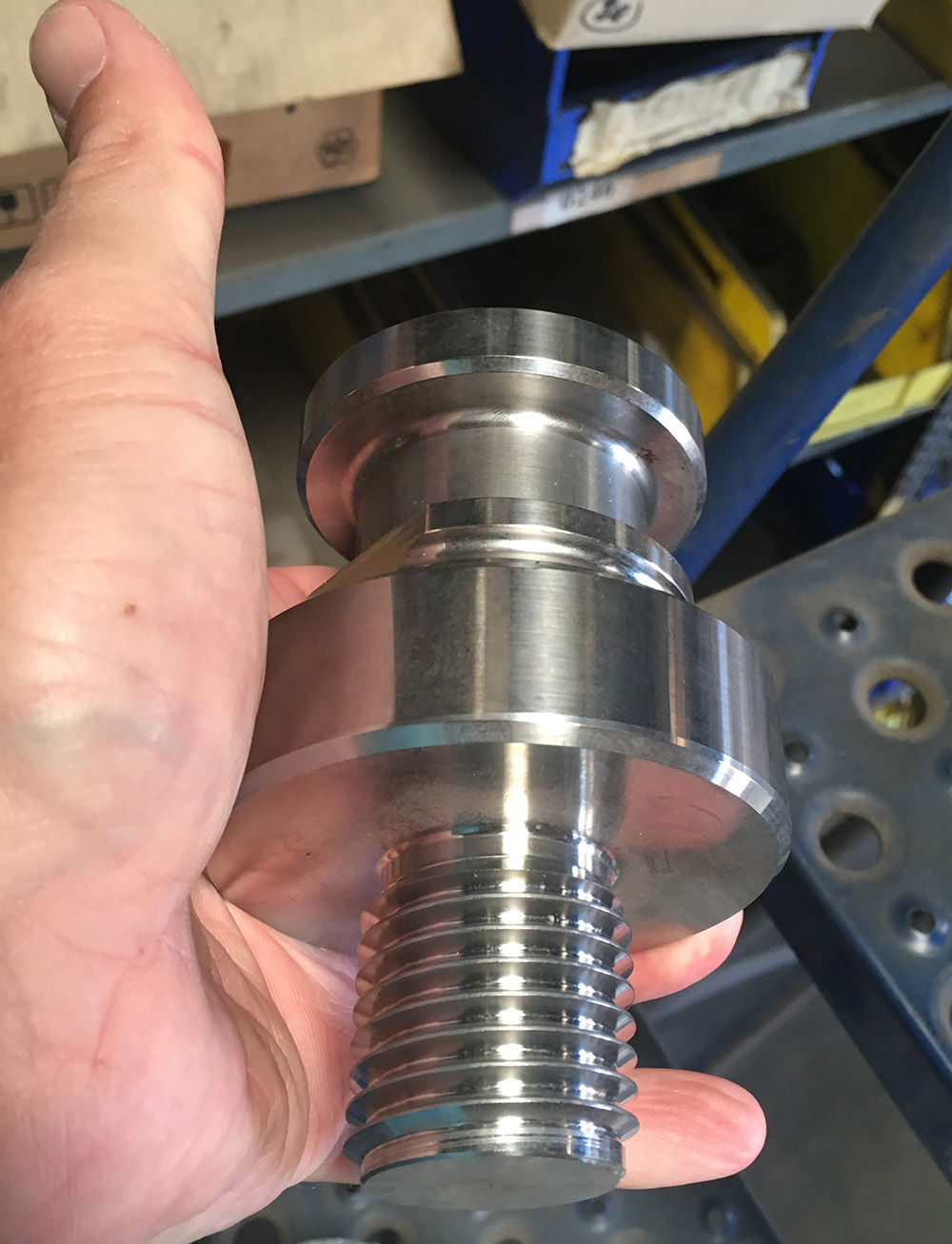

B-133018 - COUPLING BOLT, PISTON RAM

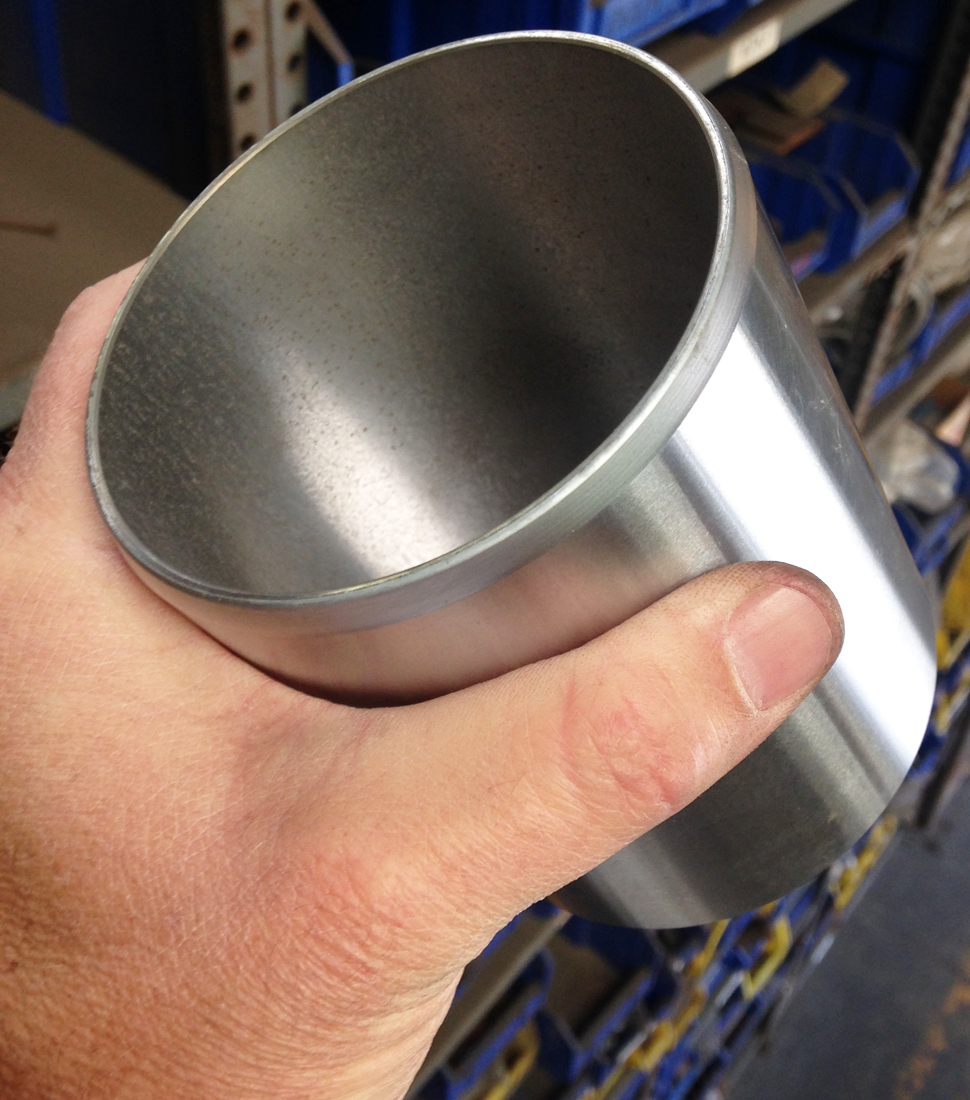

B-172105 - S-TUBE SHAFT WEAR BUSHING

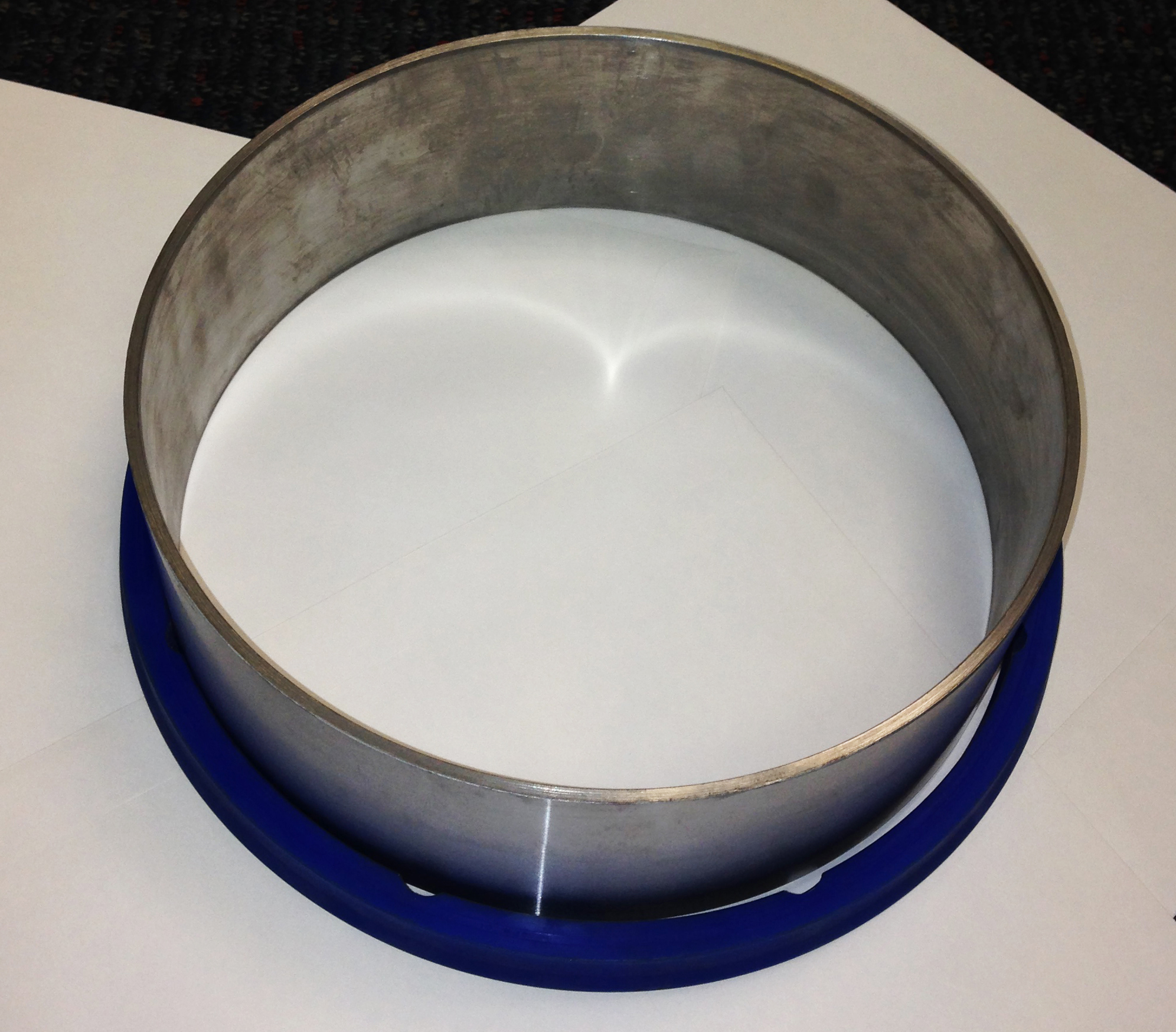

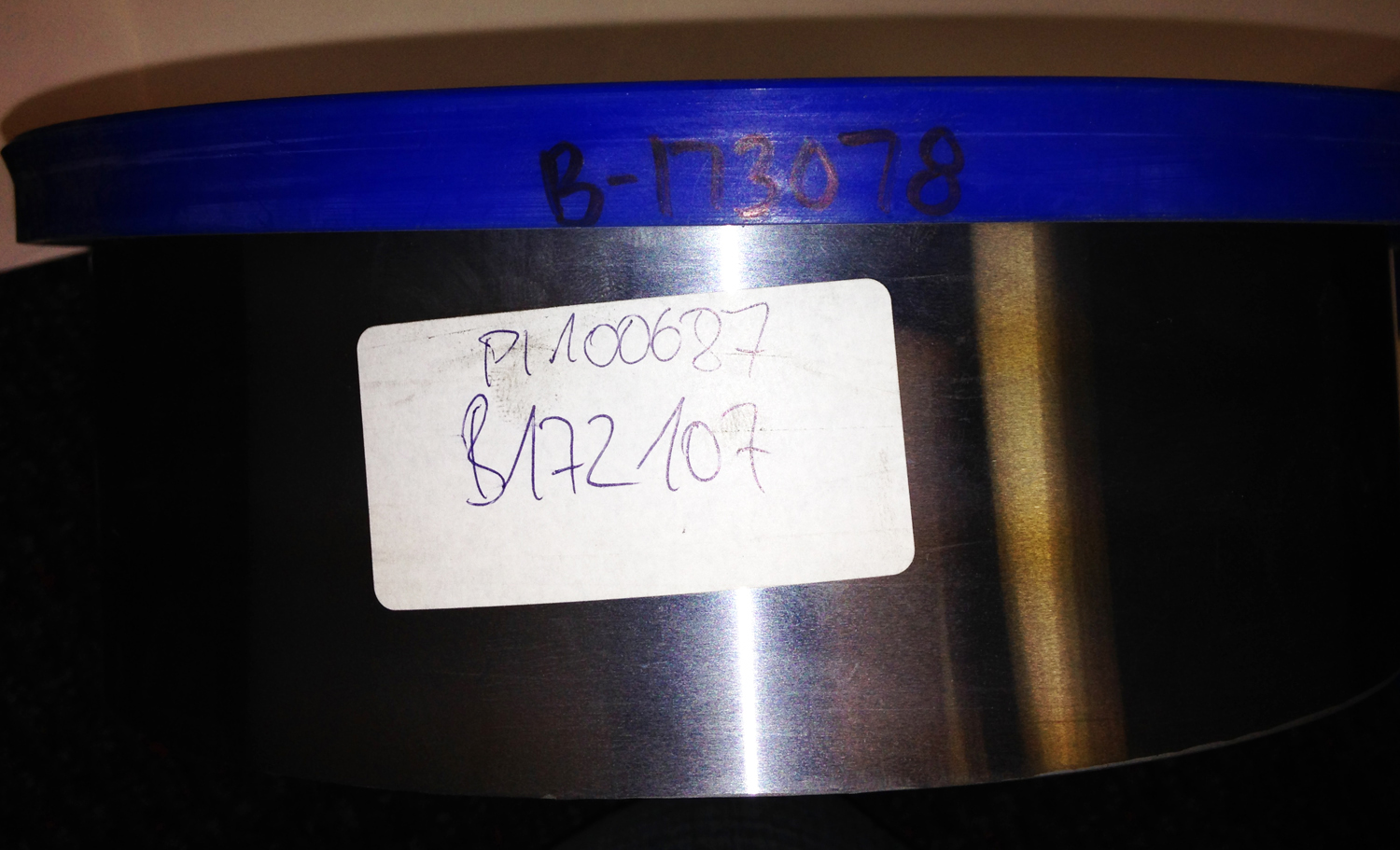

B-172107- WEAR BUSHING, OUTLET - PHOTO #1 , PHOTO #2

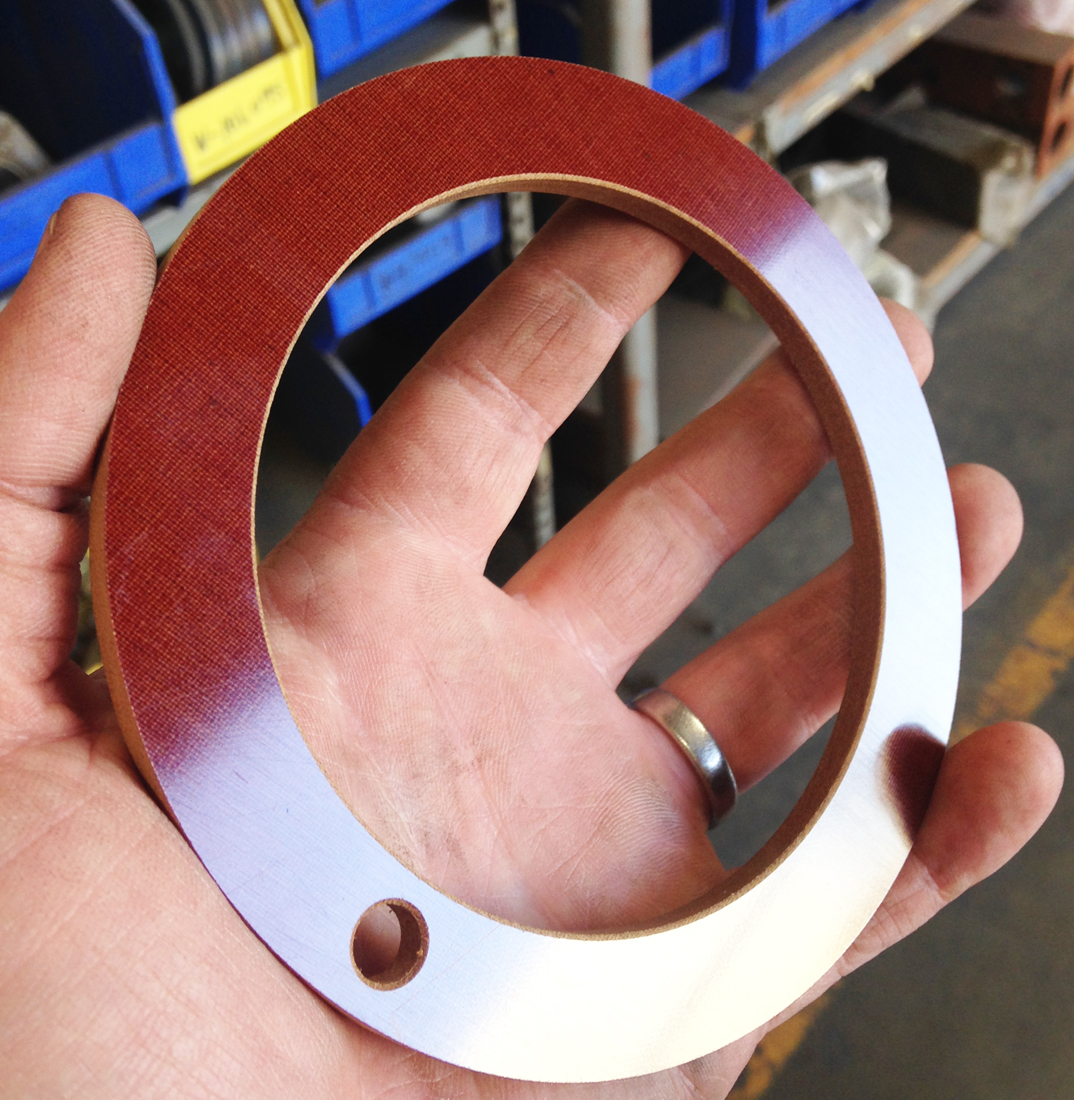

B-173012 - S-TUBE SHAFT WASHER

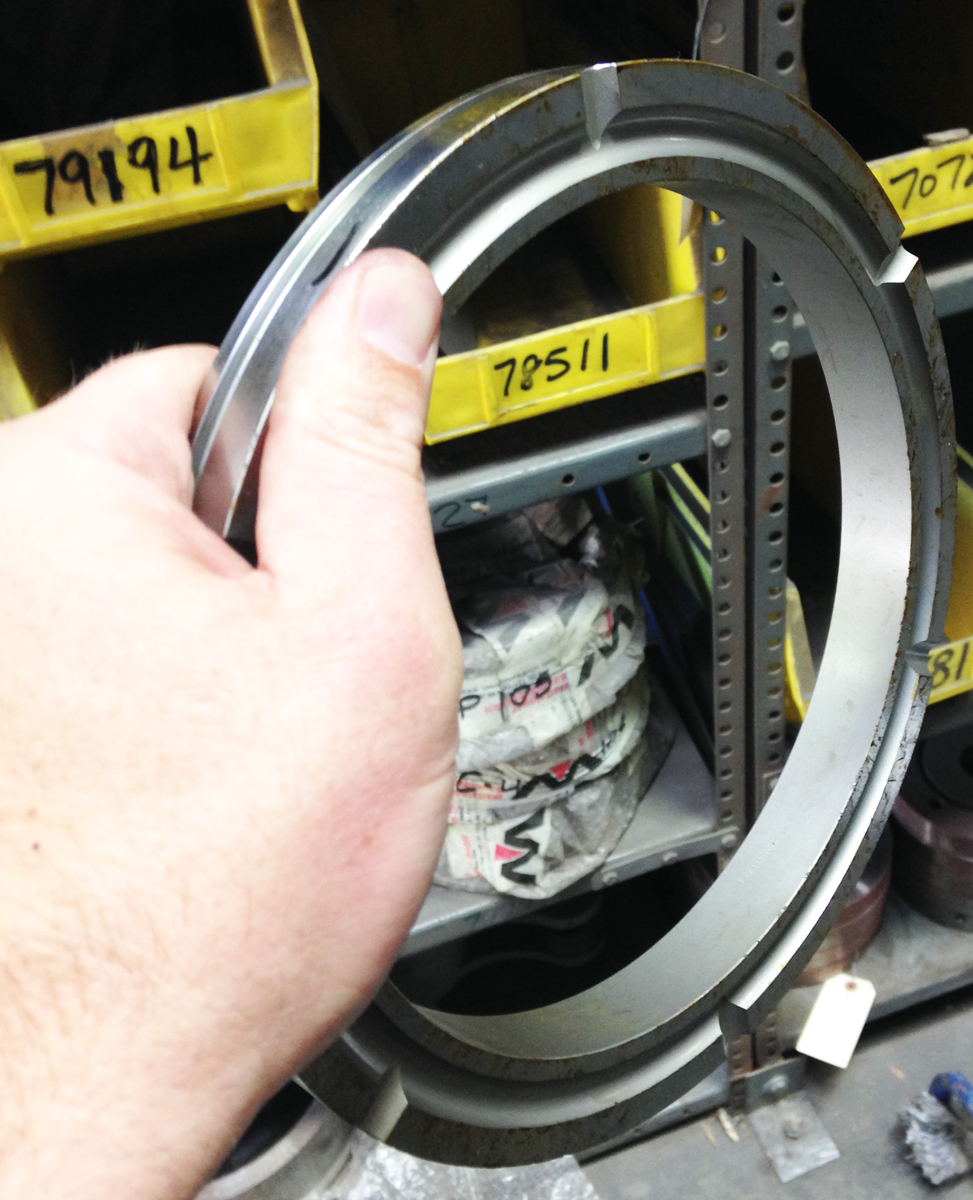

B-173013 - SLIDE RING

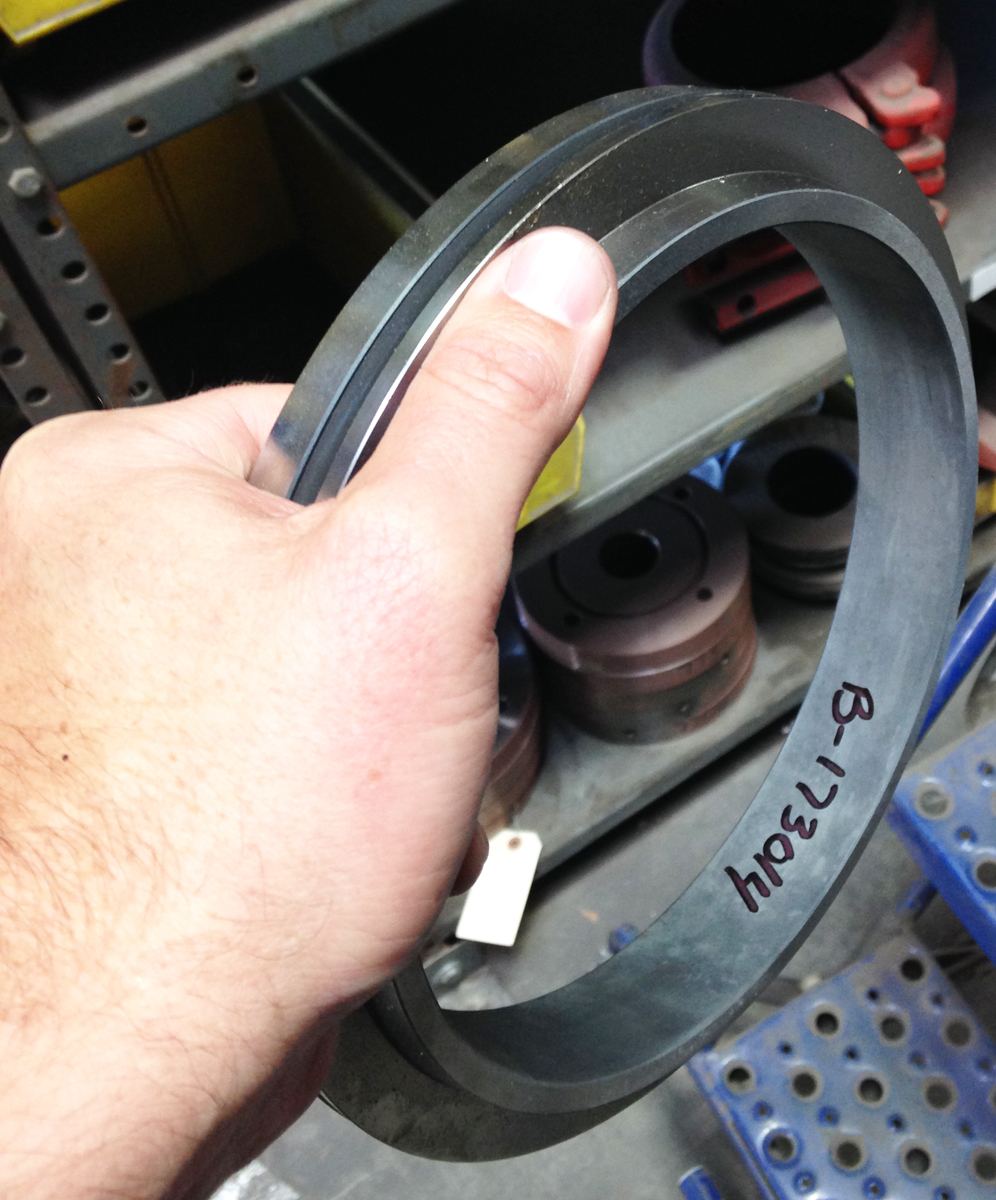

B-173014 - SLIDE RING

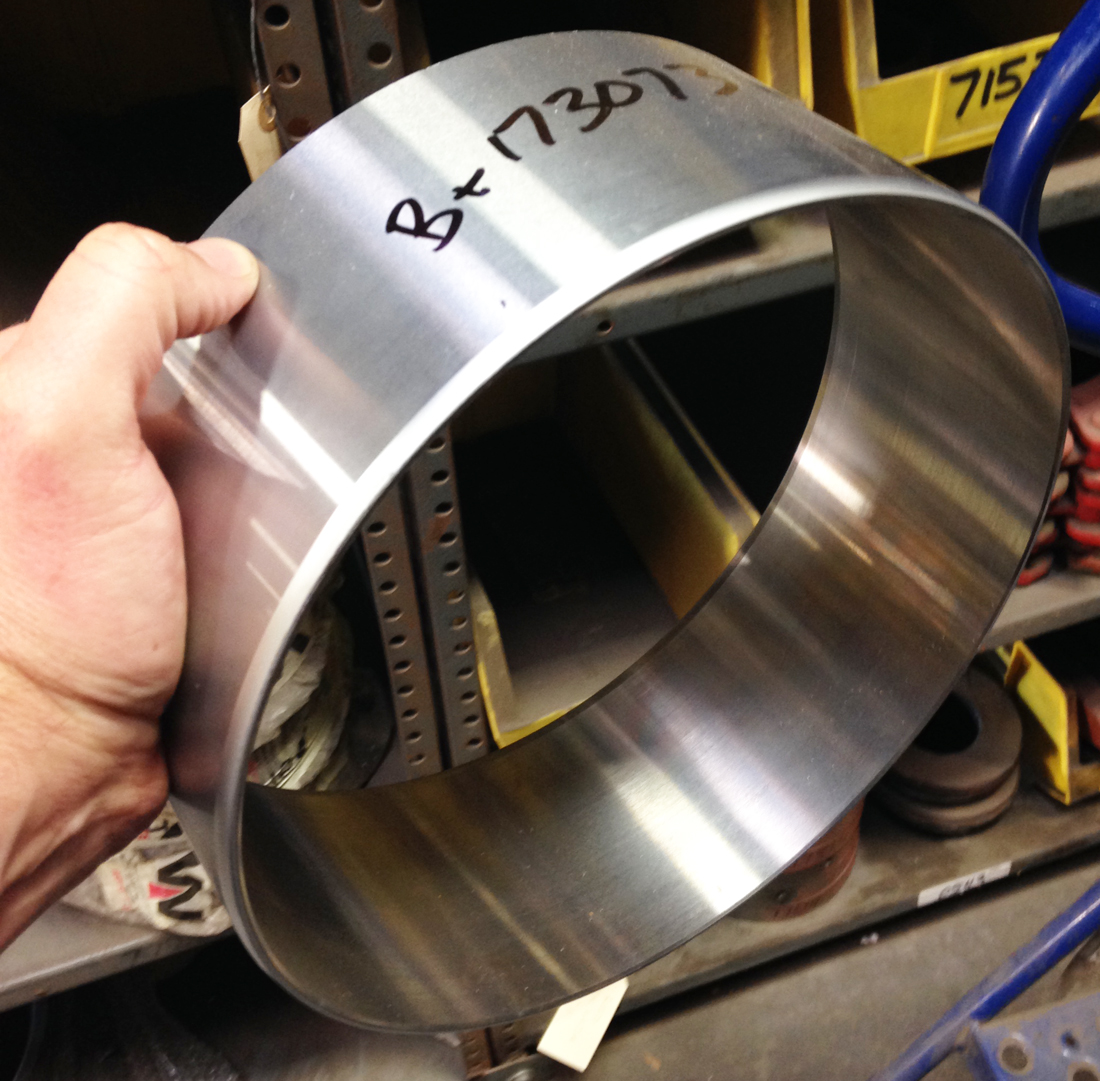

B-173073 - WEAR BUSHING REAR

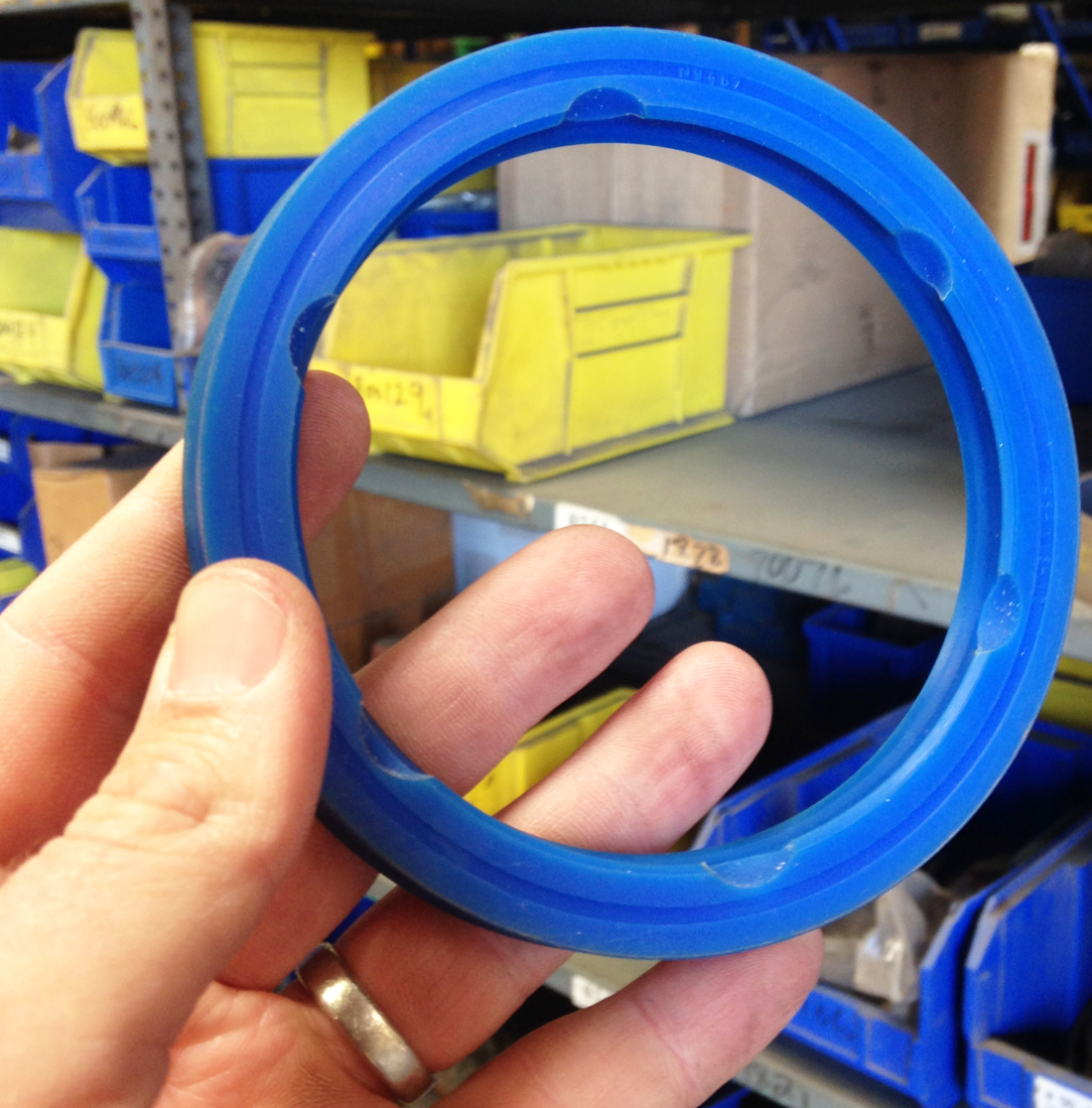

B-173077 - GROOVE RING, WITH NOTCHES
B-173078 - GROOVE RING, OUTLET - PHOTO #1, PHOTO #2, PHOTO #3

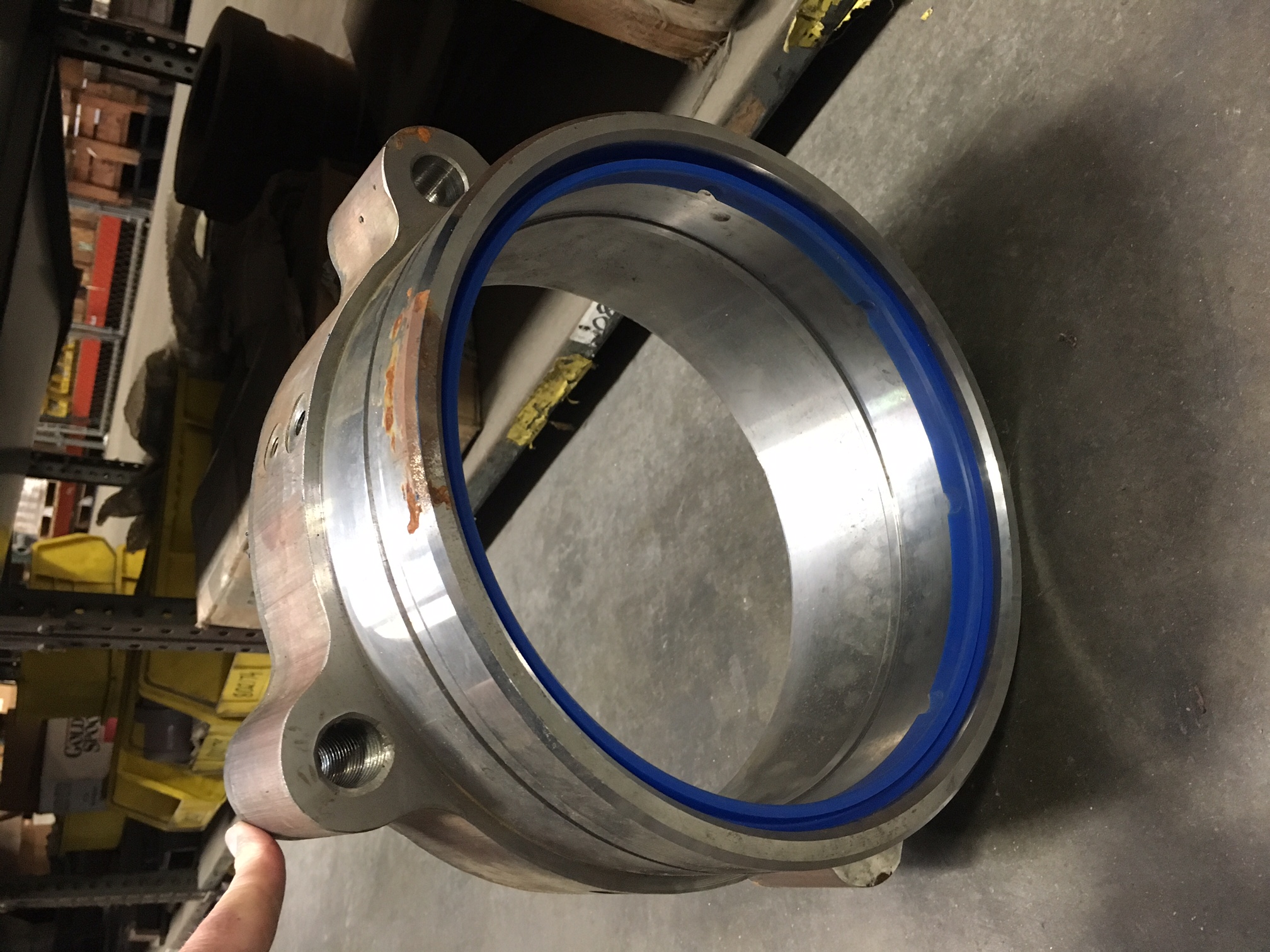

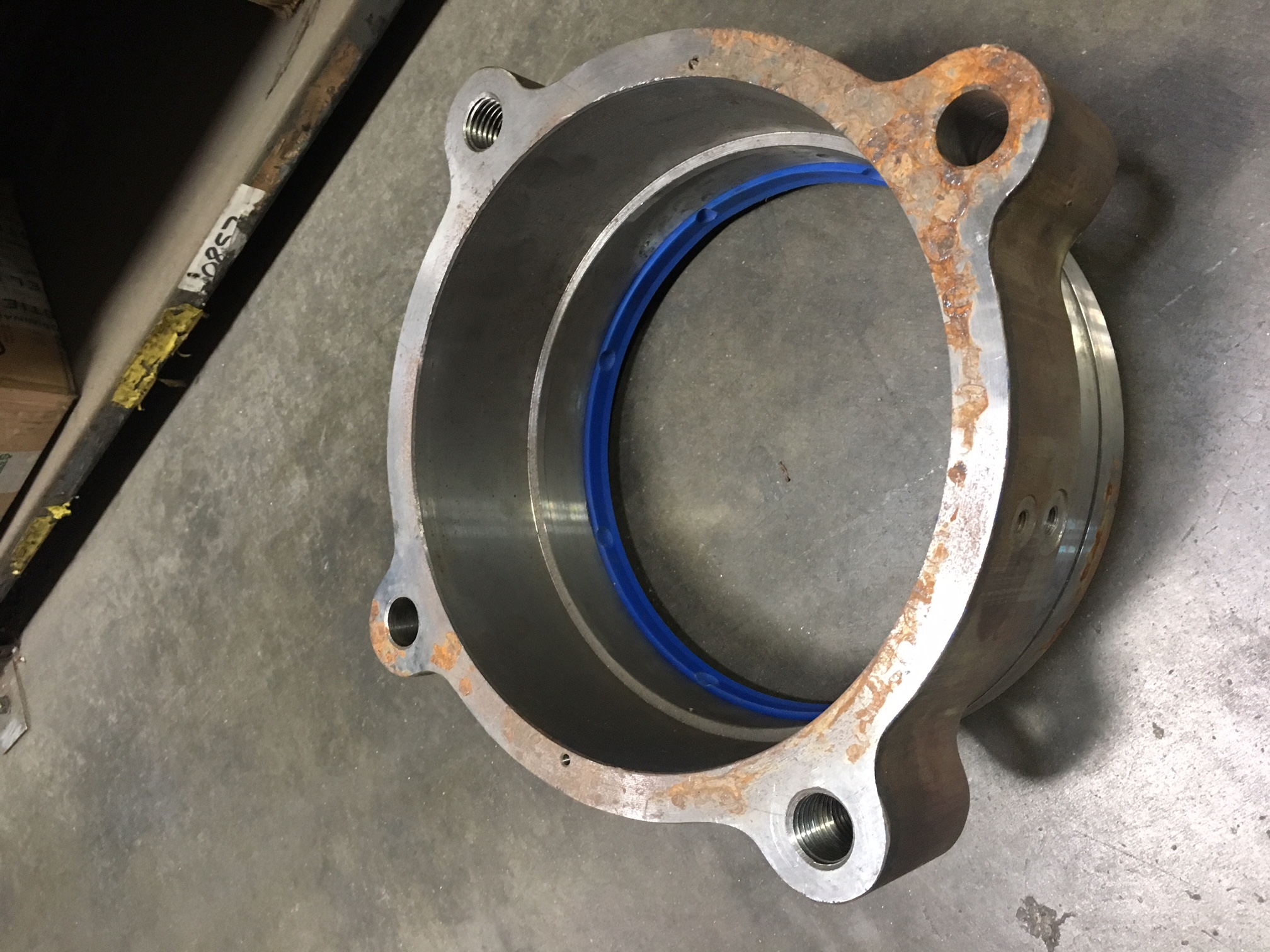

B-174022 - HOUSING, OUTLET - PHOTO #1, PHOTO #2
B-174023 - OBSOLETE, USE B-174099

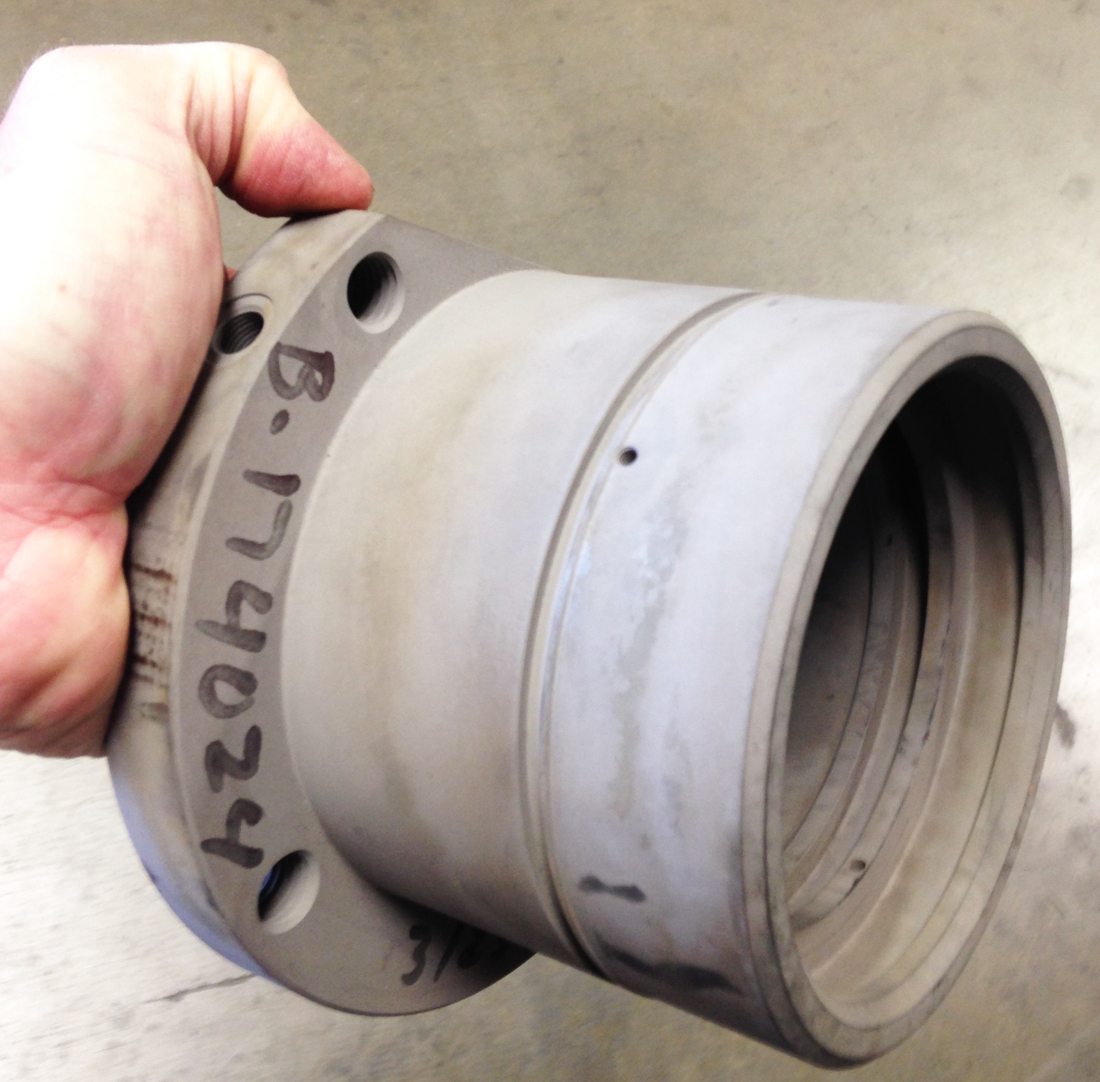

B-174024 - S-TUBE HOUSING, SELL WITH QTY 4 OF W-102710

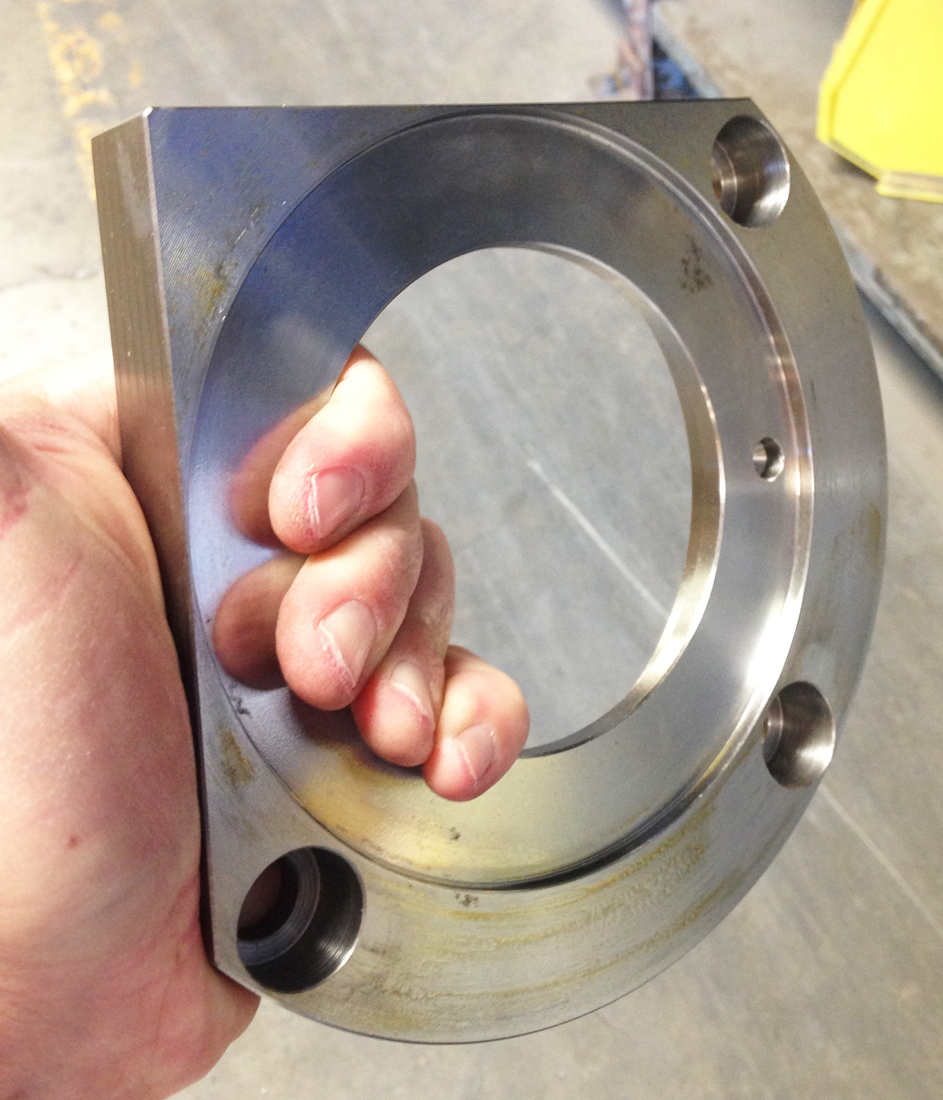

B-174025 - S-TUBE SHAFT FLANGE

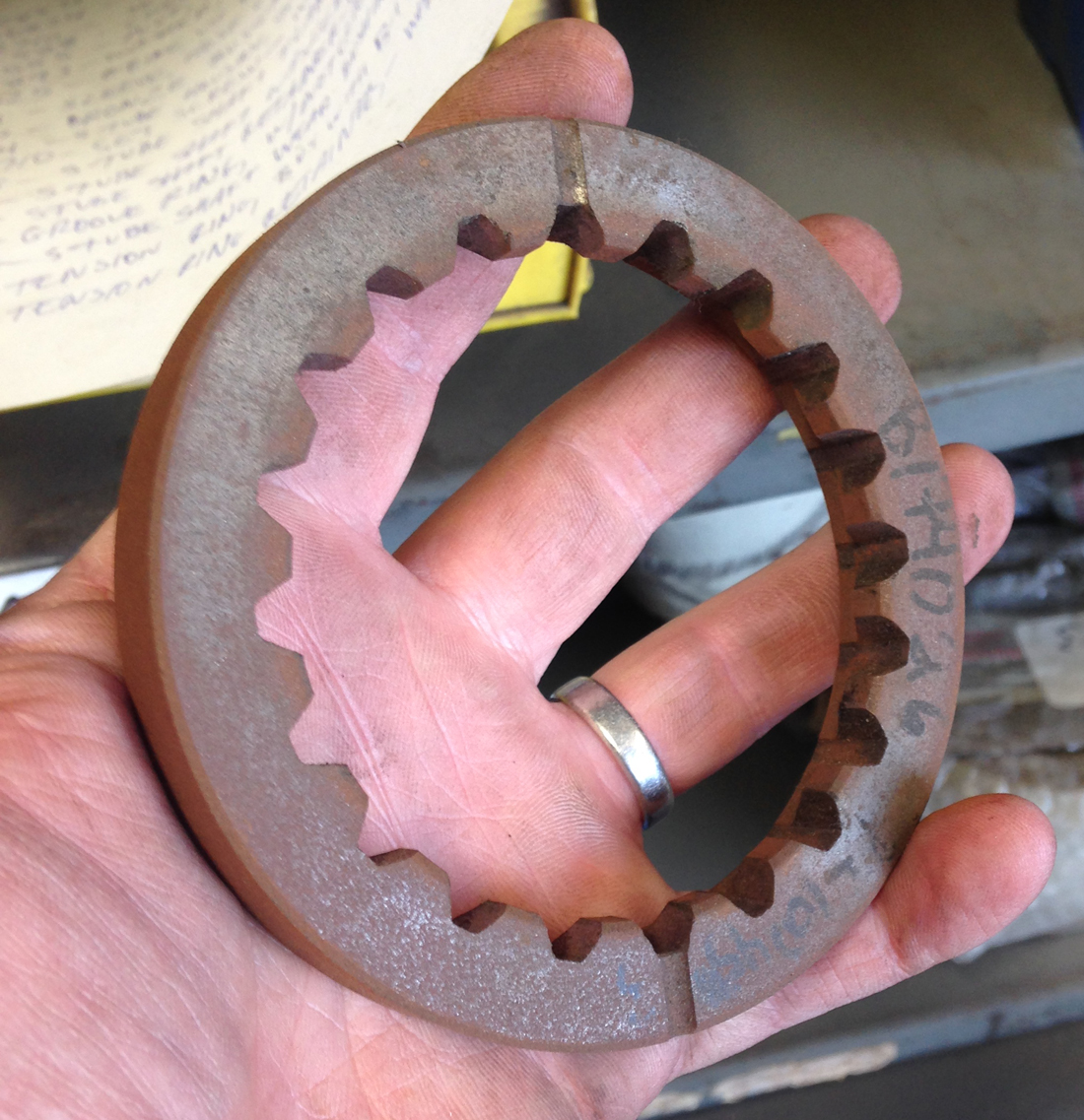

B-174026 - S-TUBE SHAFT RETAINER

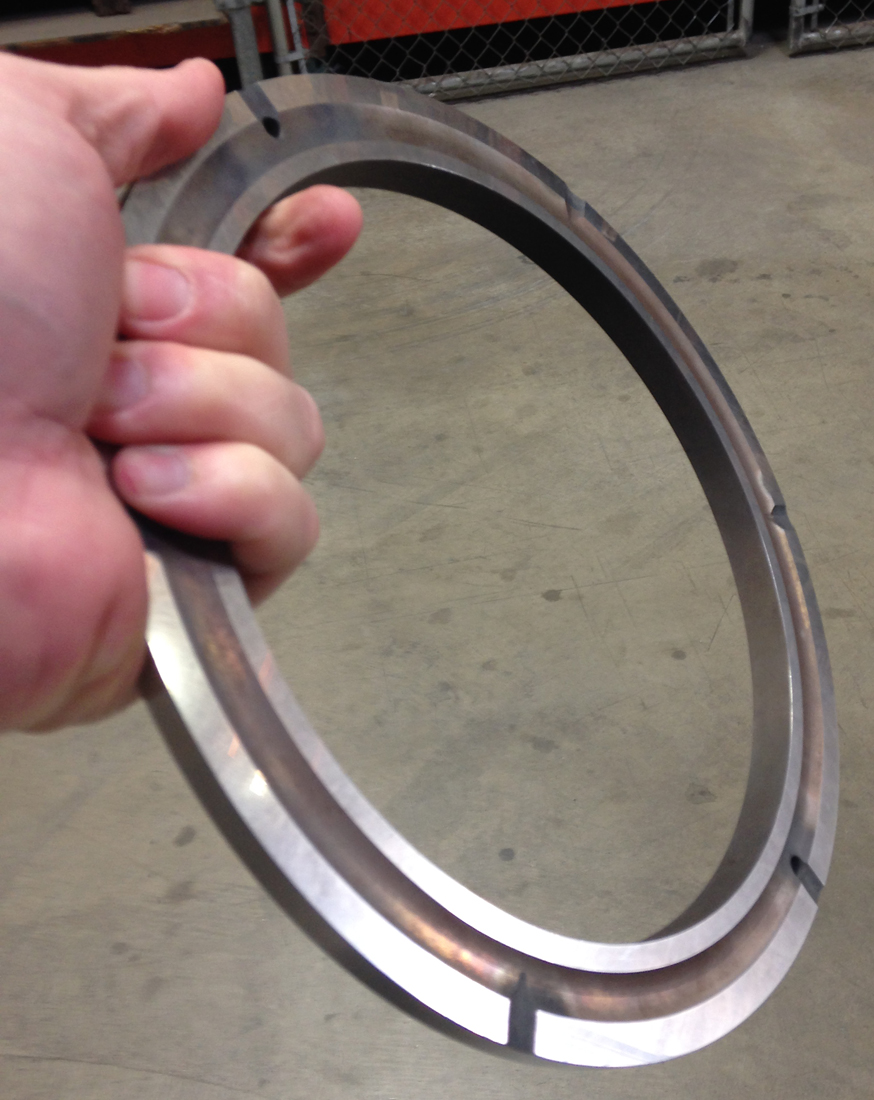

B-174027 - SLIDING RING, OUTLET SIDE

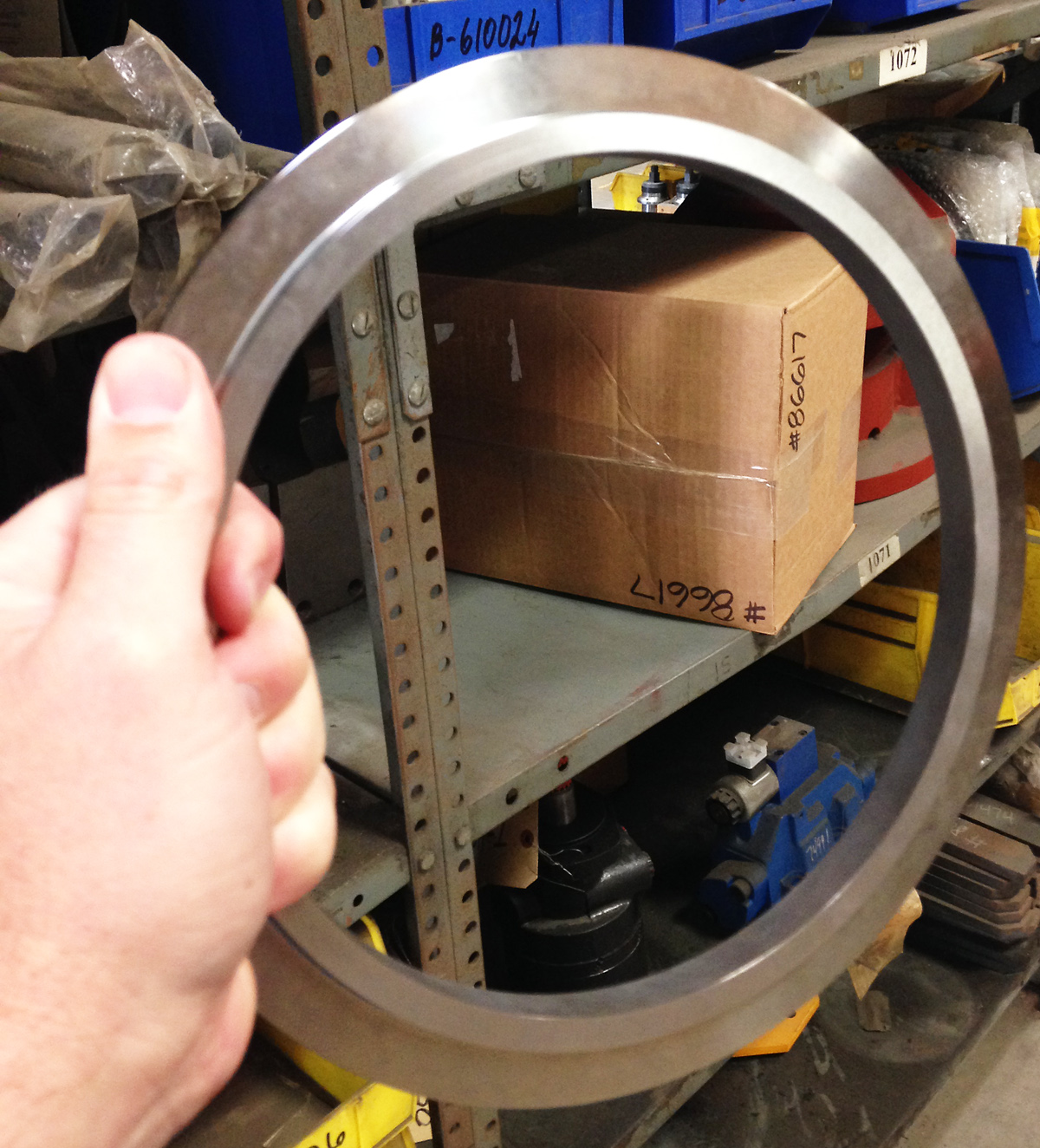

B-174028 - SLIDING RING

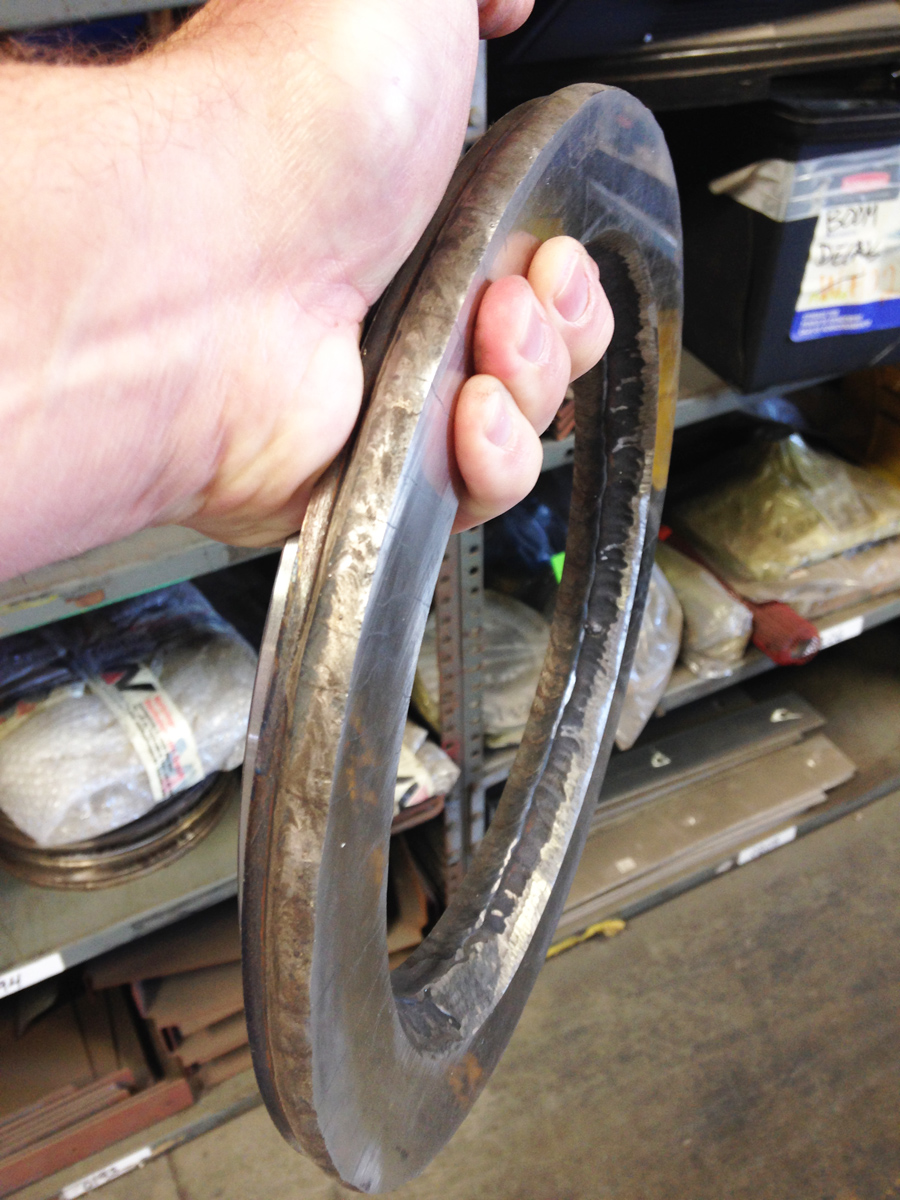

B-174087 - WEAR RING

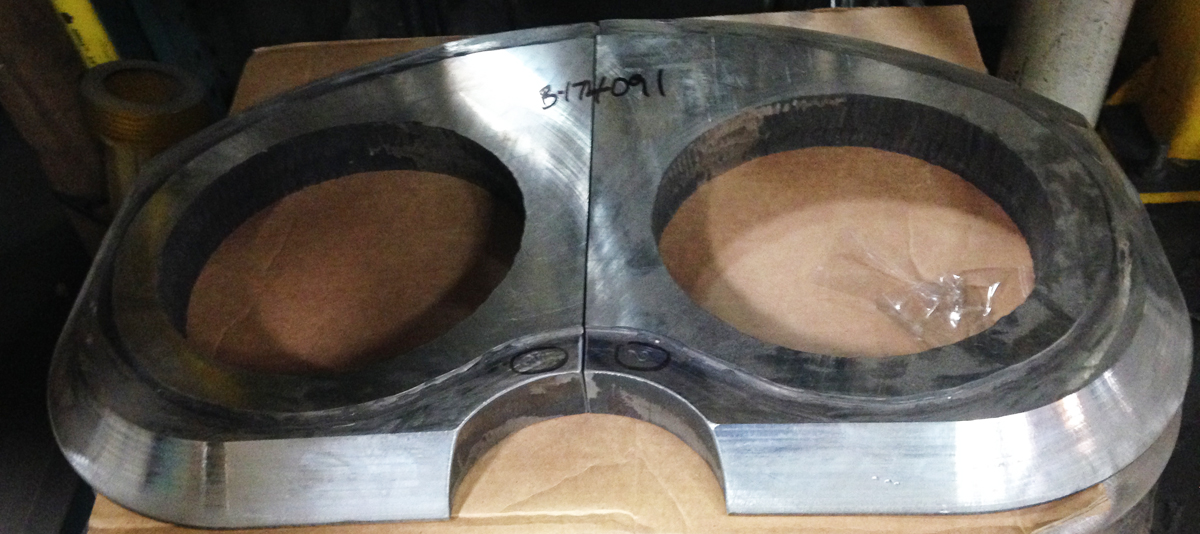

B-174091 - WEAR PLATE (make sure you have correct version - see drawing at serial number log to confirm!)

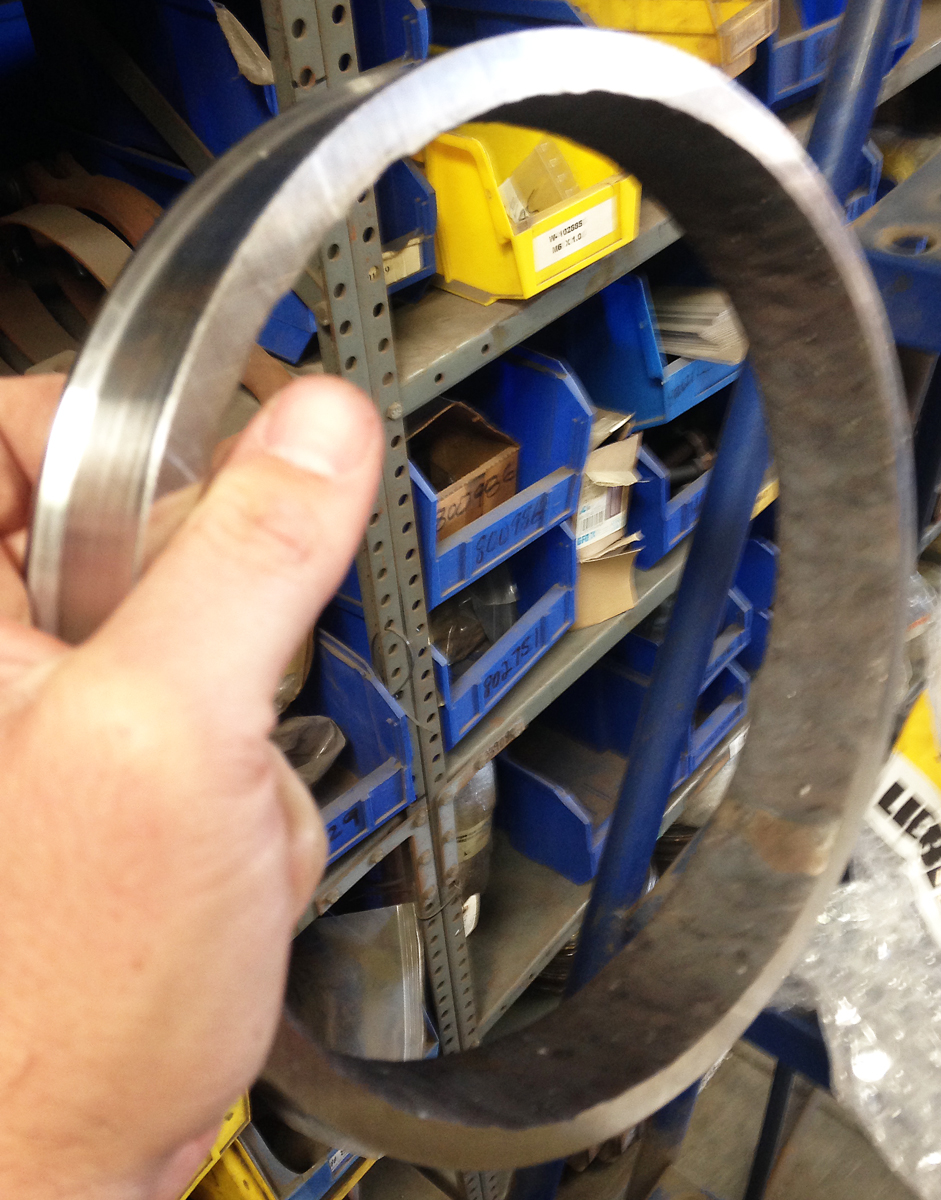

B-174092 - TENSION RING RETAINER

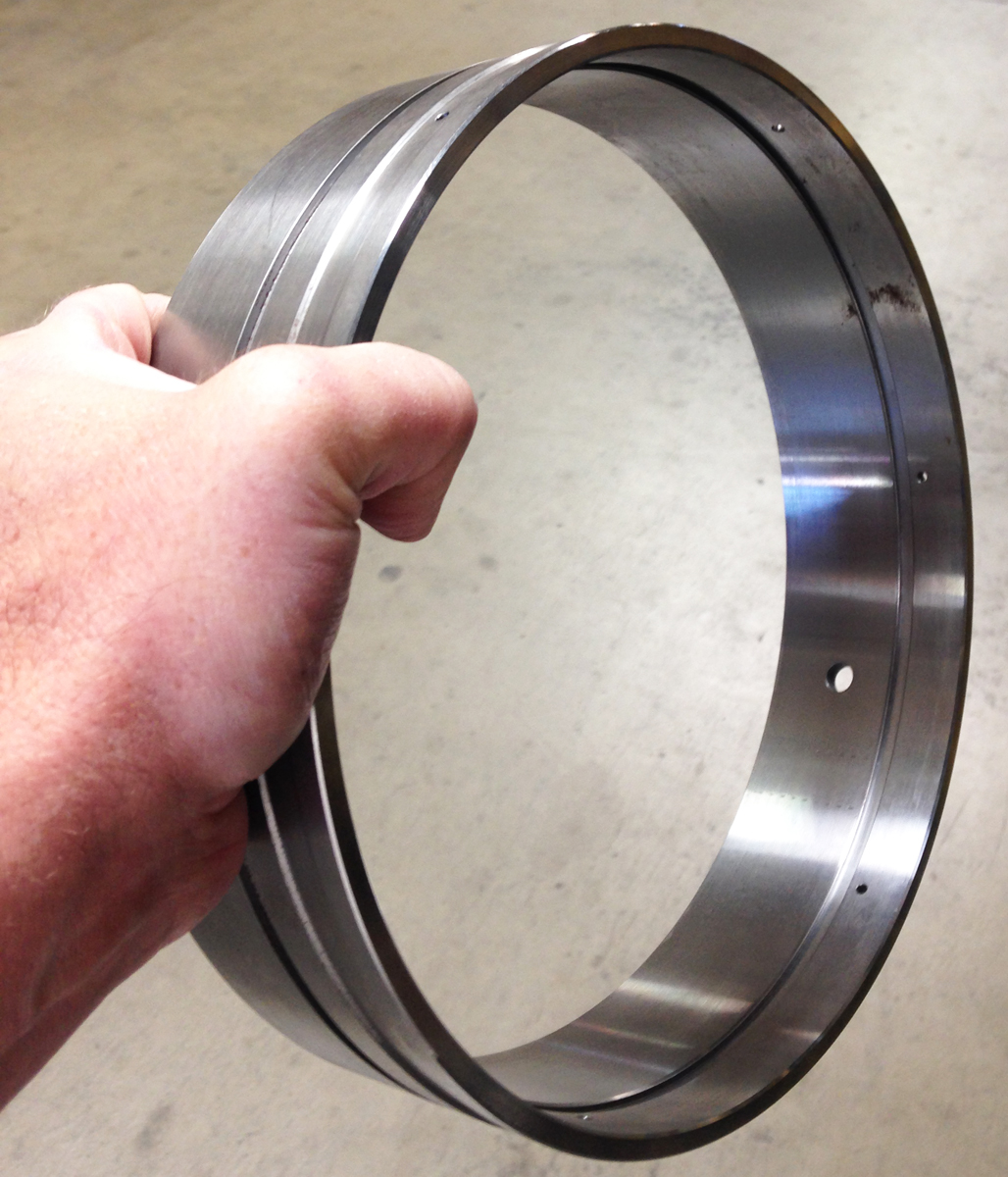

B-174099 - OUTLET SPACER RING

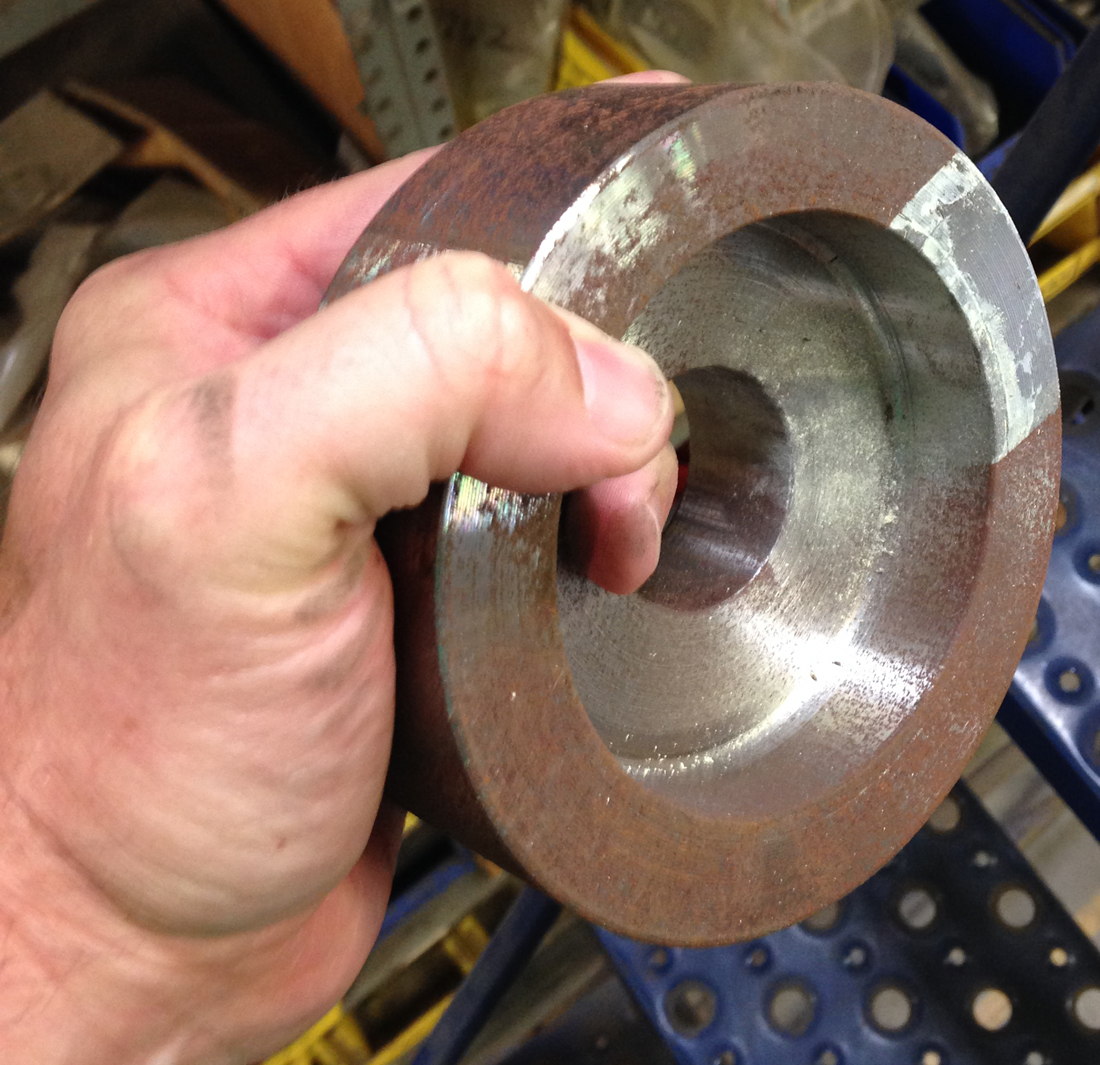

B-174103 - WASHER (RELIEF HOLE!)

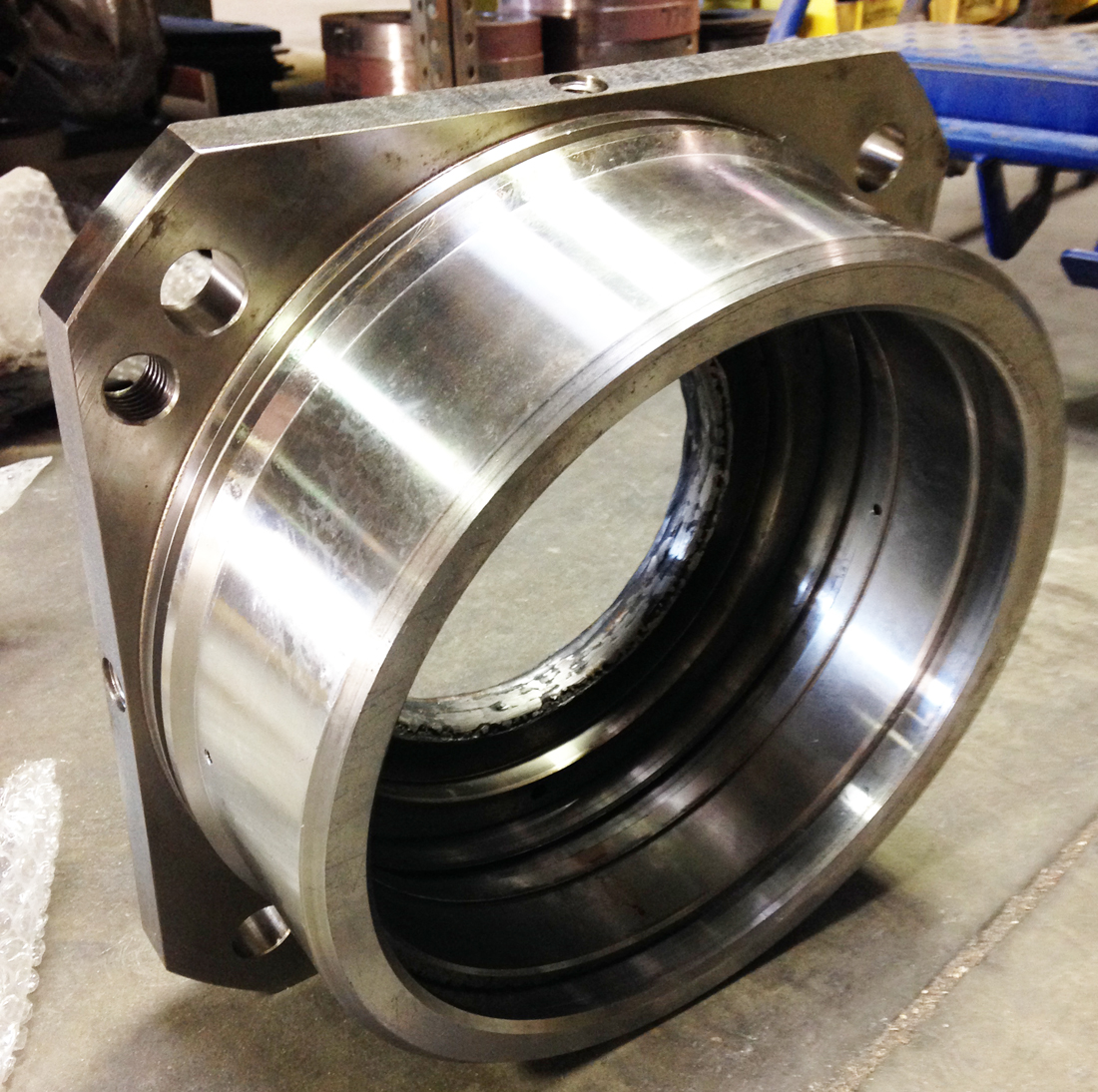

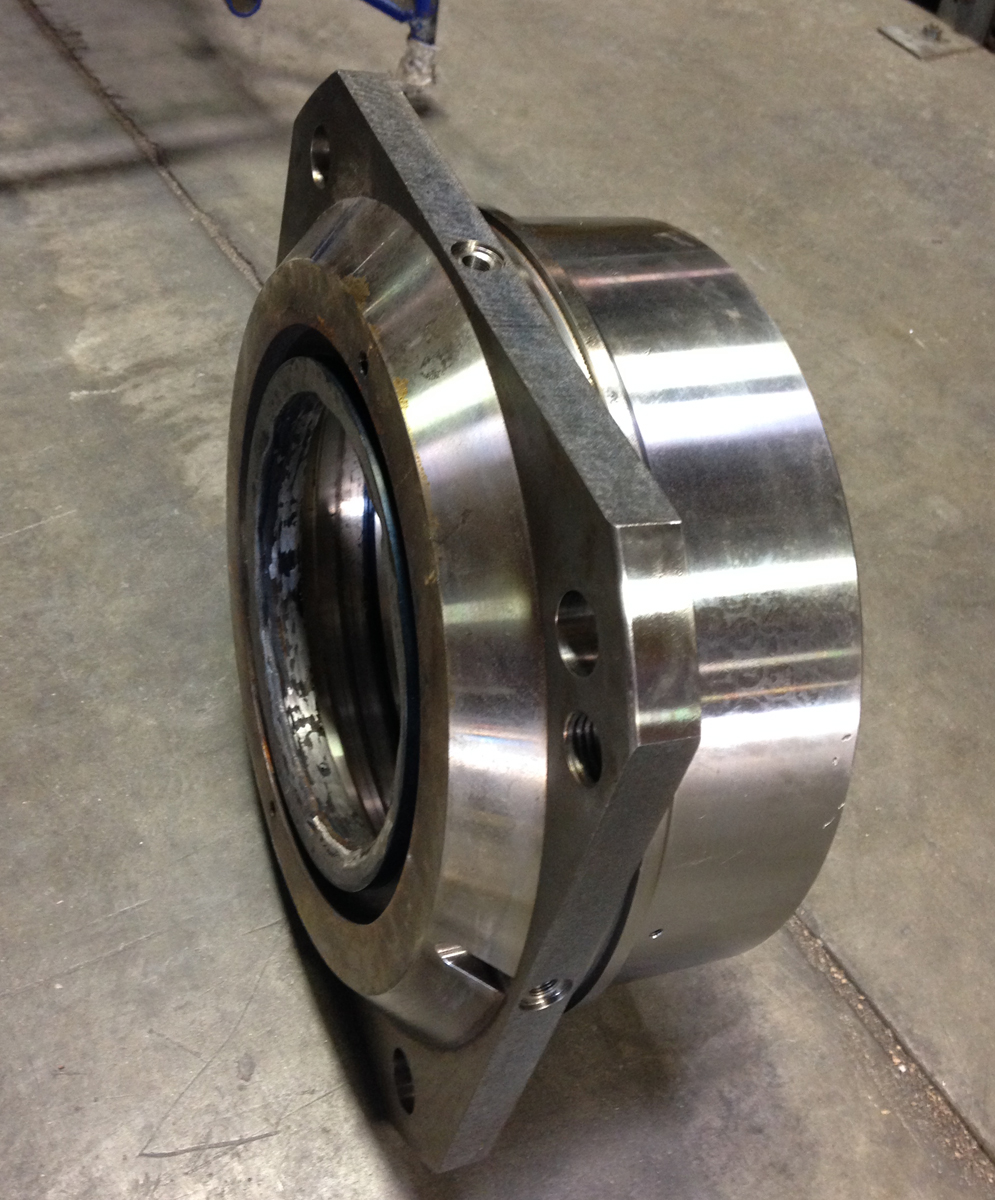

B-175012 - OUTLET HOUSING, REPLACES B-175009 - PHOTO #1, PHOTO #2

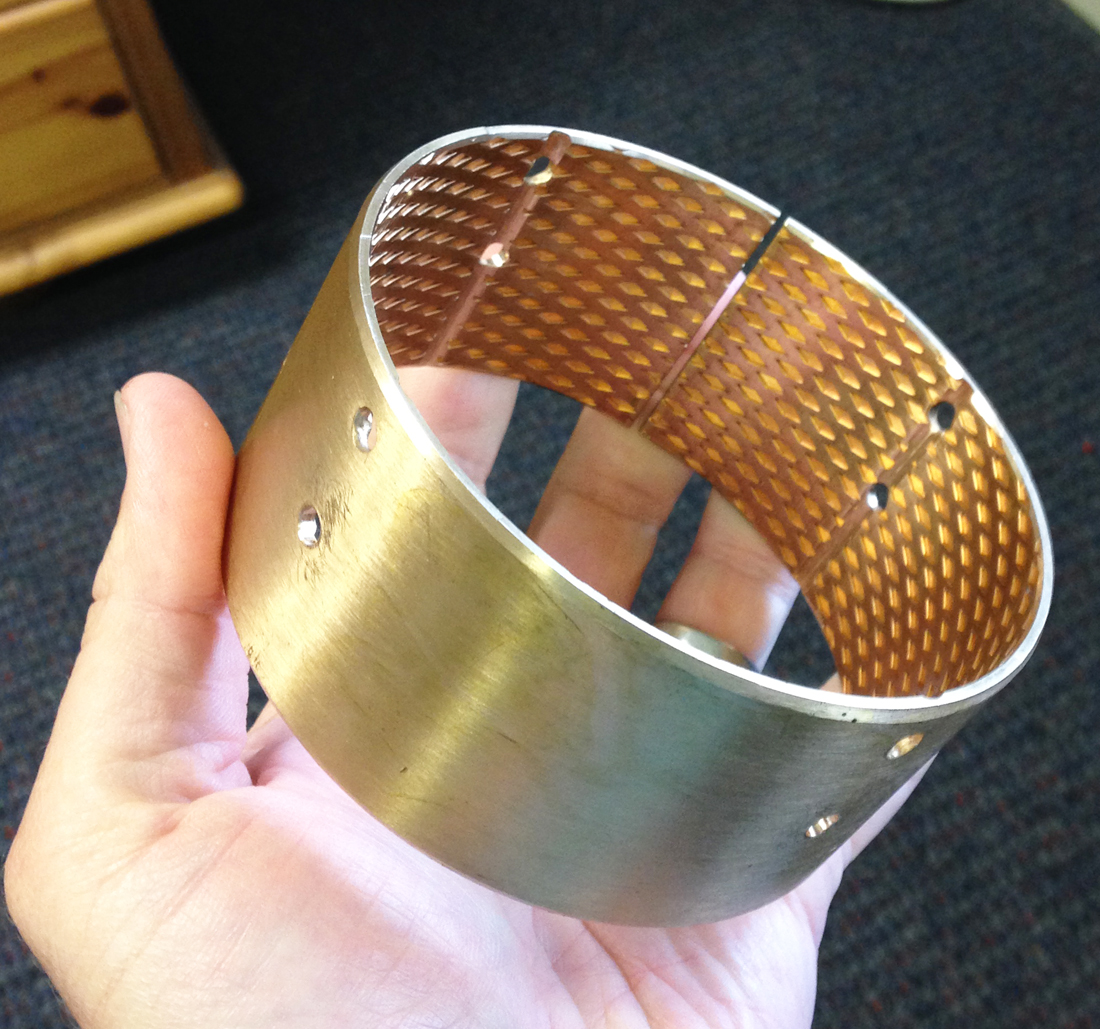

B-175022 - BRONZE BUSHING

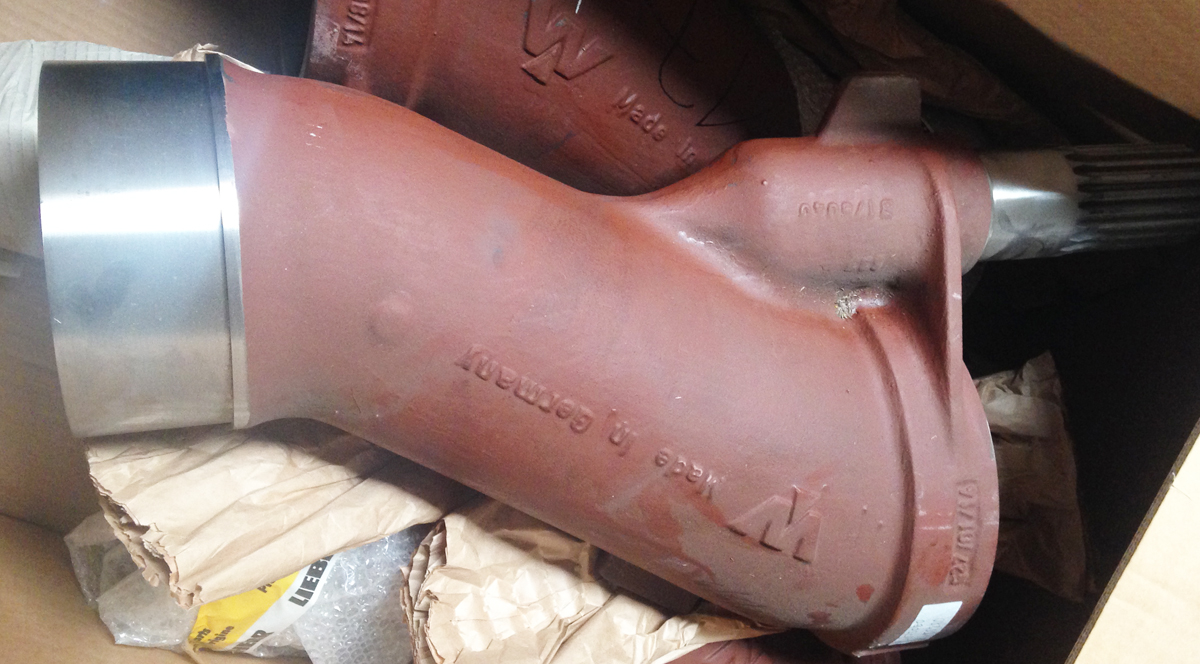

B-175080 - S-TUBE

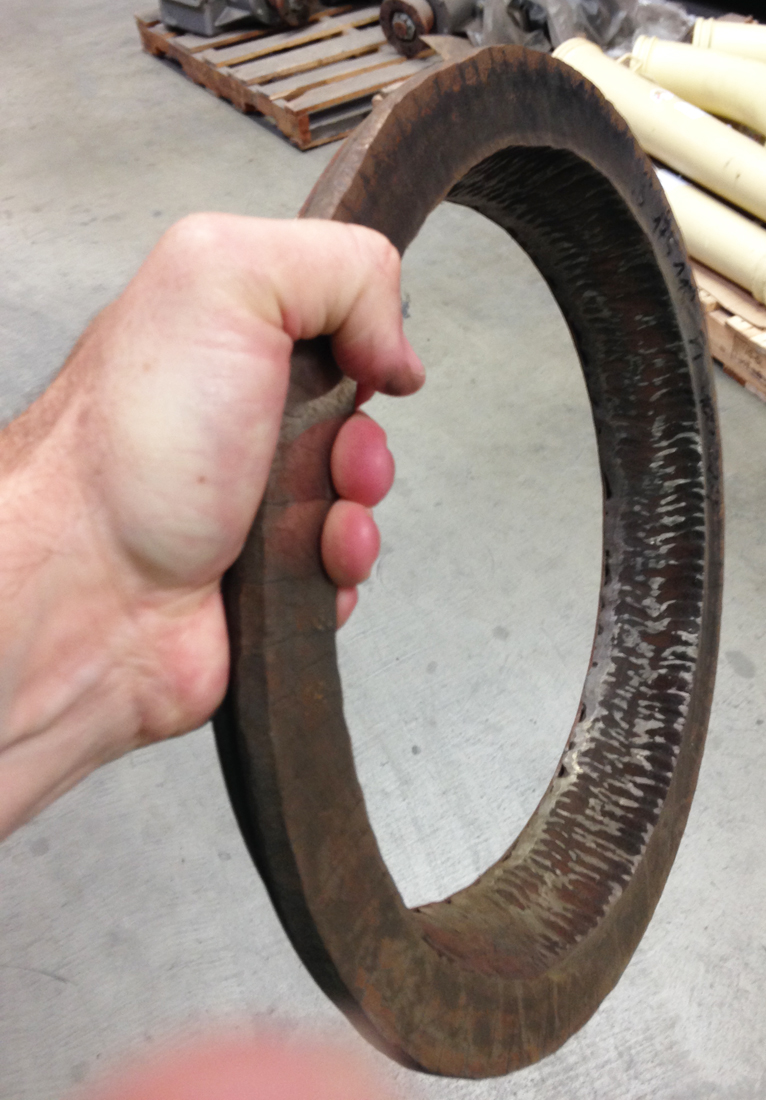

B-175110 - WEAR RING

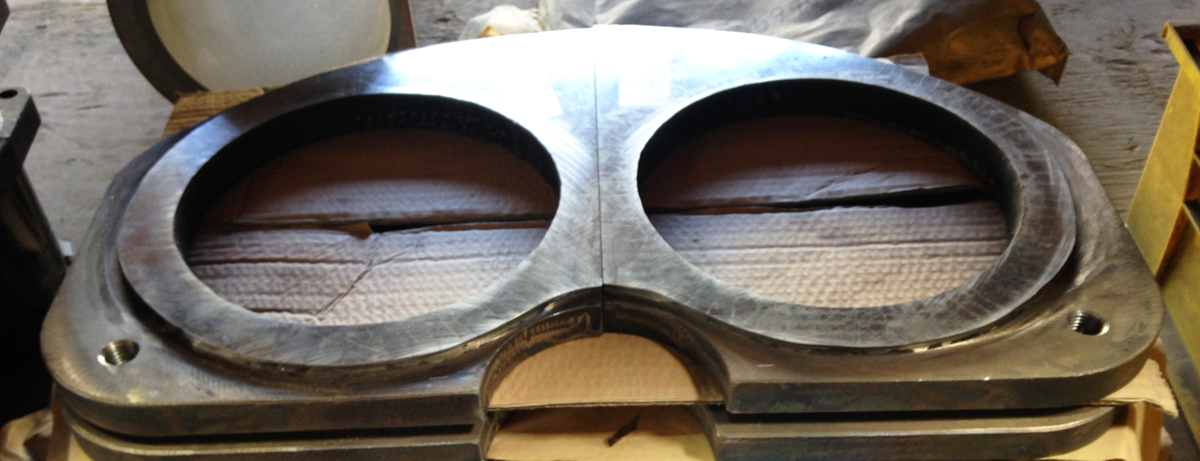

B-175177 - WEAR PLATE (make sure you have correct version - see drawing at serial number log to confirm!)

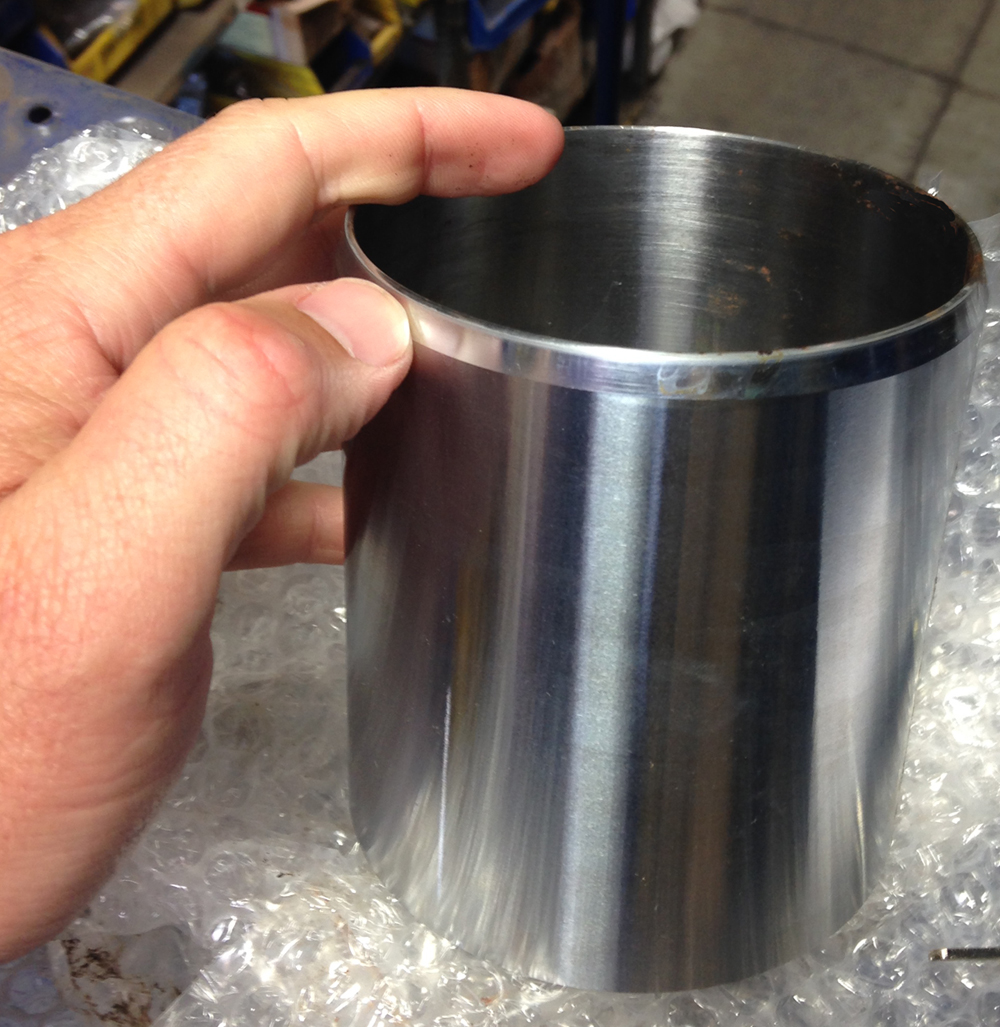

B-175175 - WEAR SLEEVE SMALL

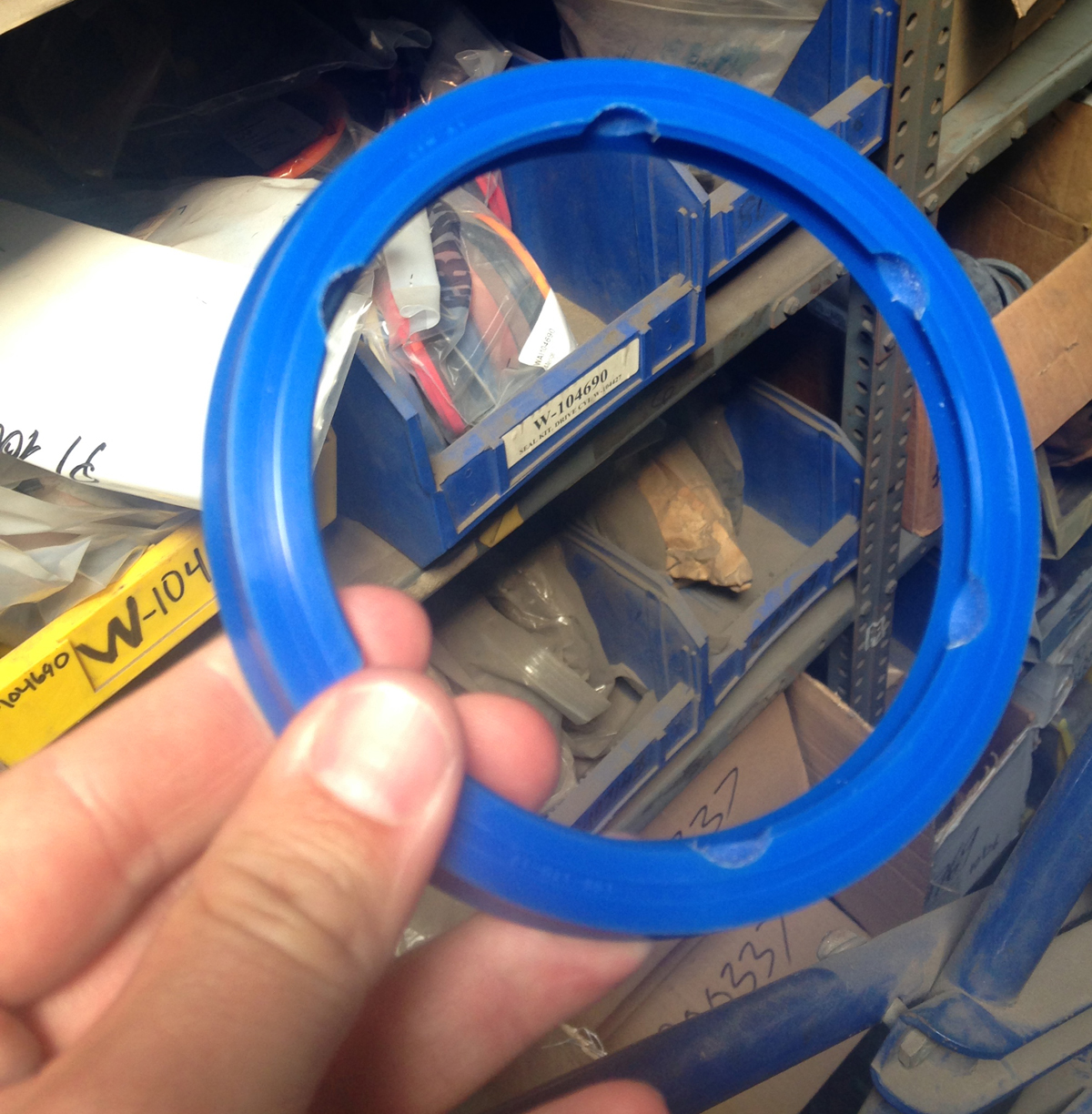

B-175181 - GROOVE RING

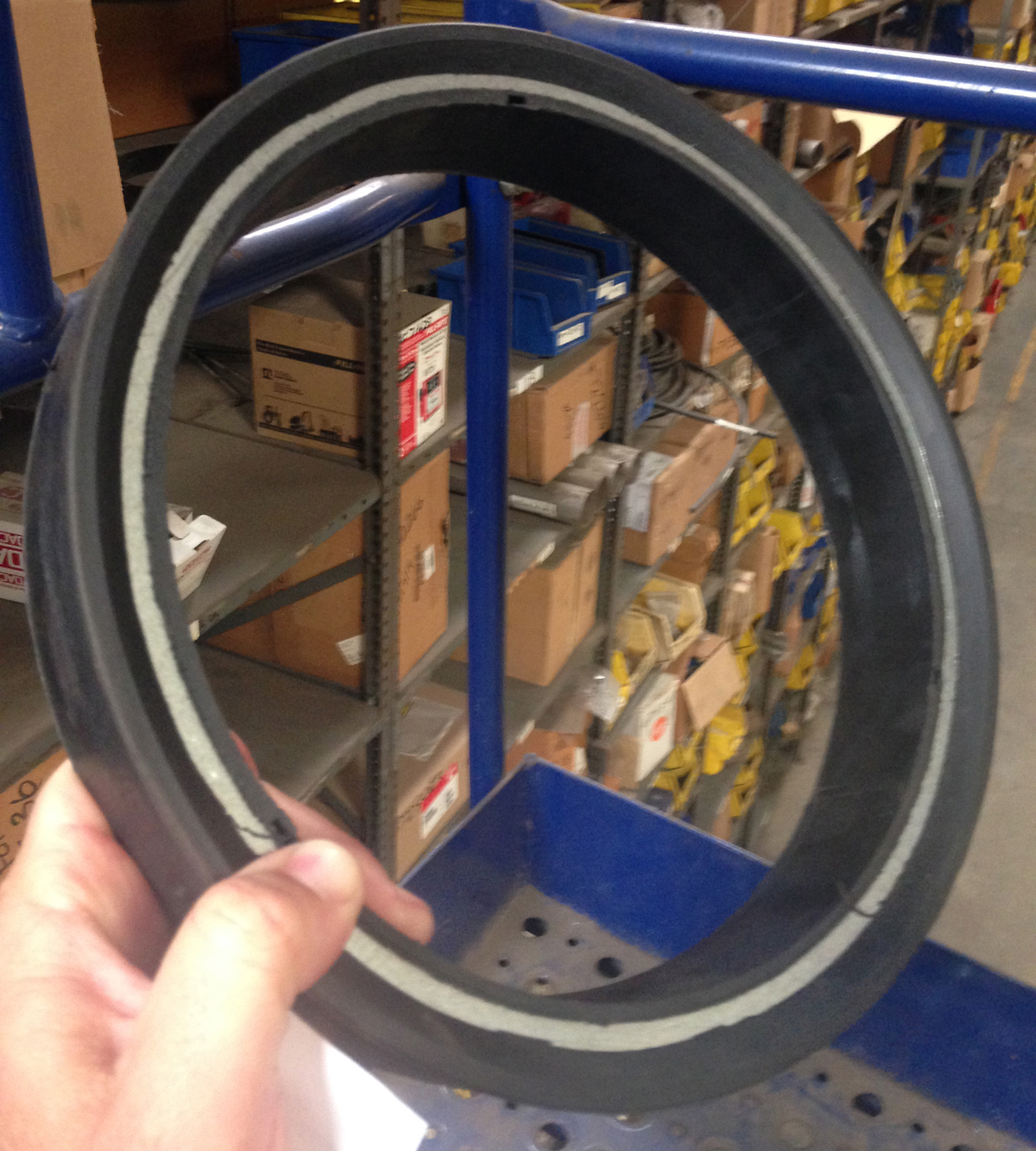

B-175201 - TENSION RING (RUBBER WITH STEEL BAND)

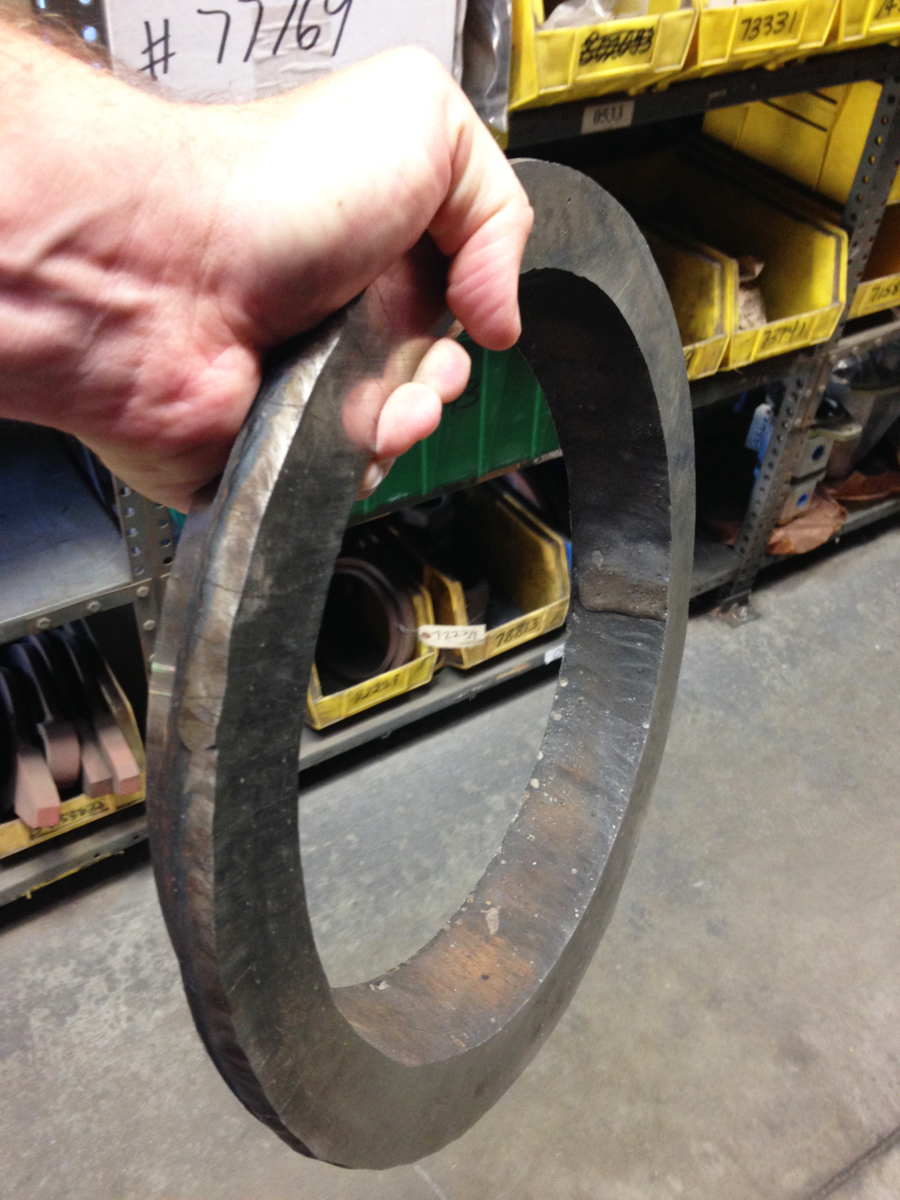

B-175210 - WEAR RING/CUTTING RING

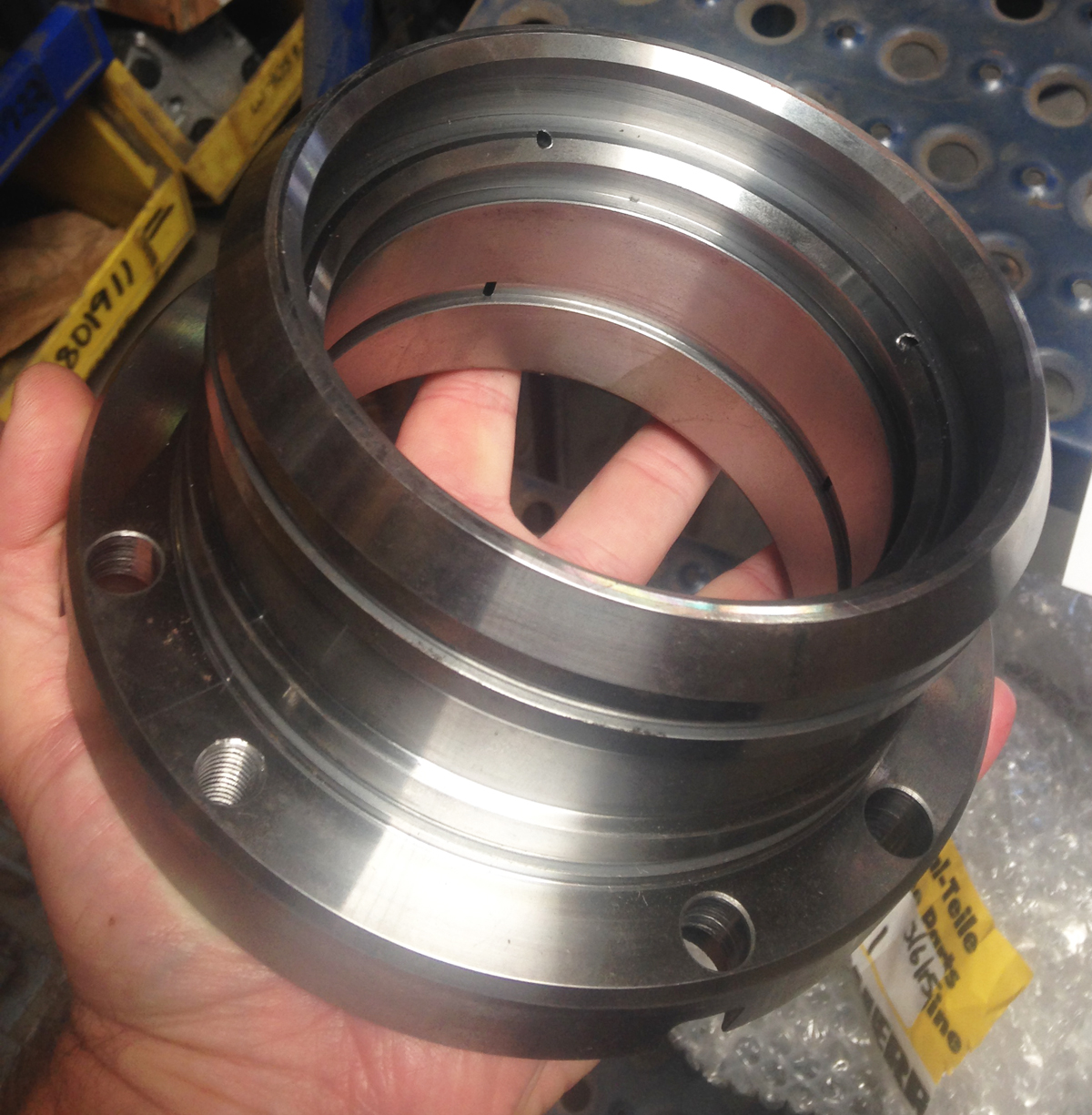

B-175221 - HOUSING (REPLACES B-175178)

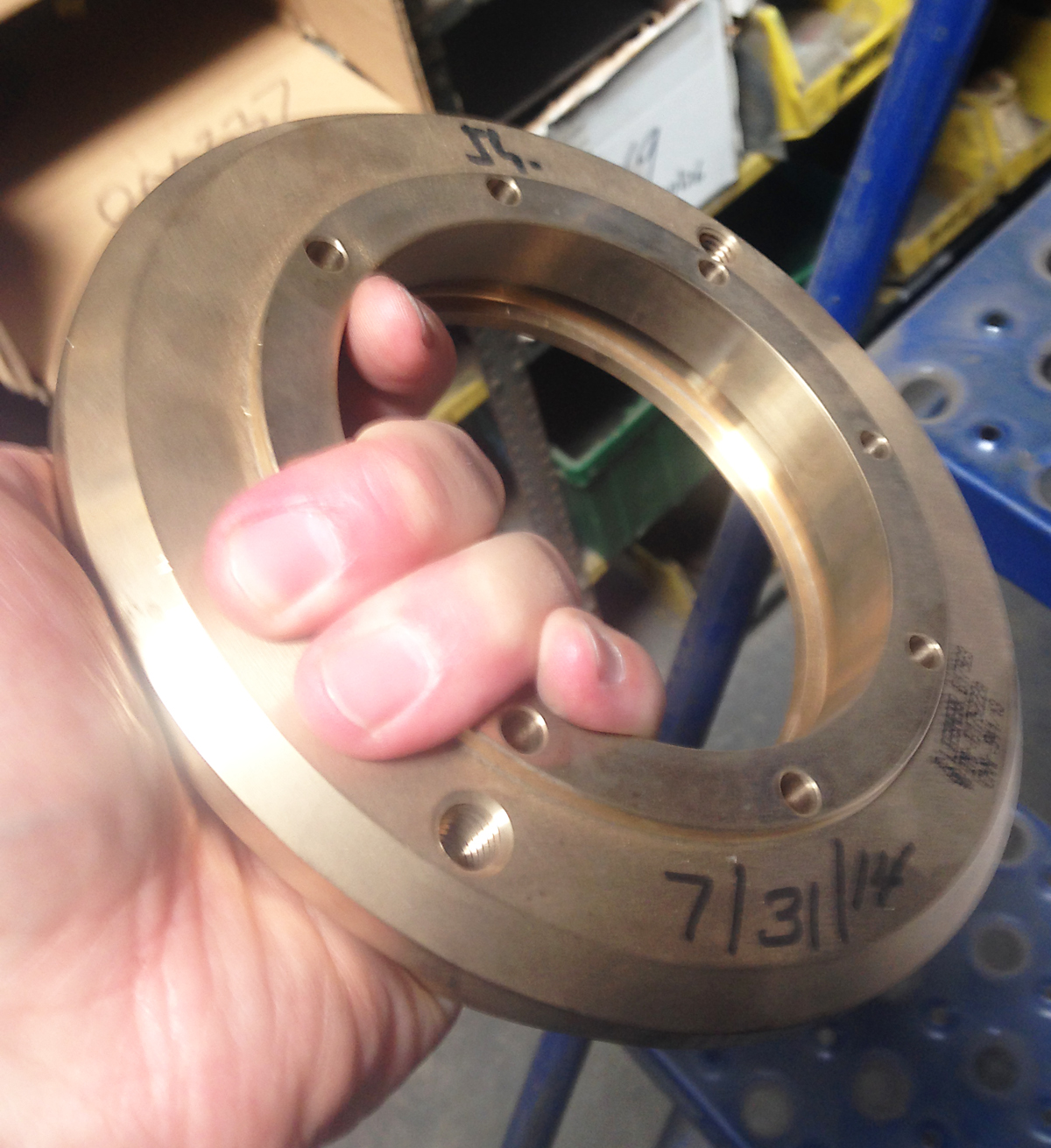

B-175222 - WASHER (REPLACES B-175179)

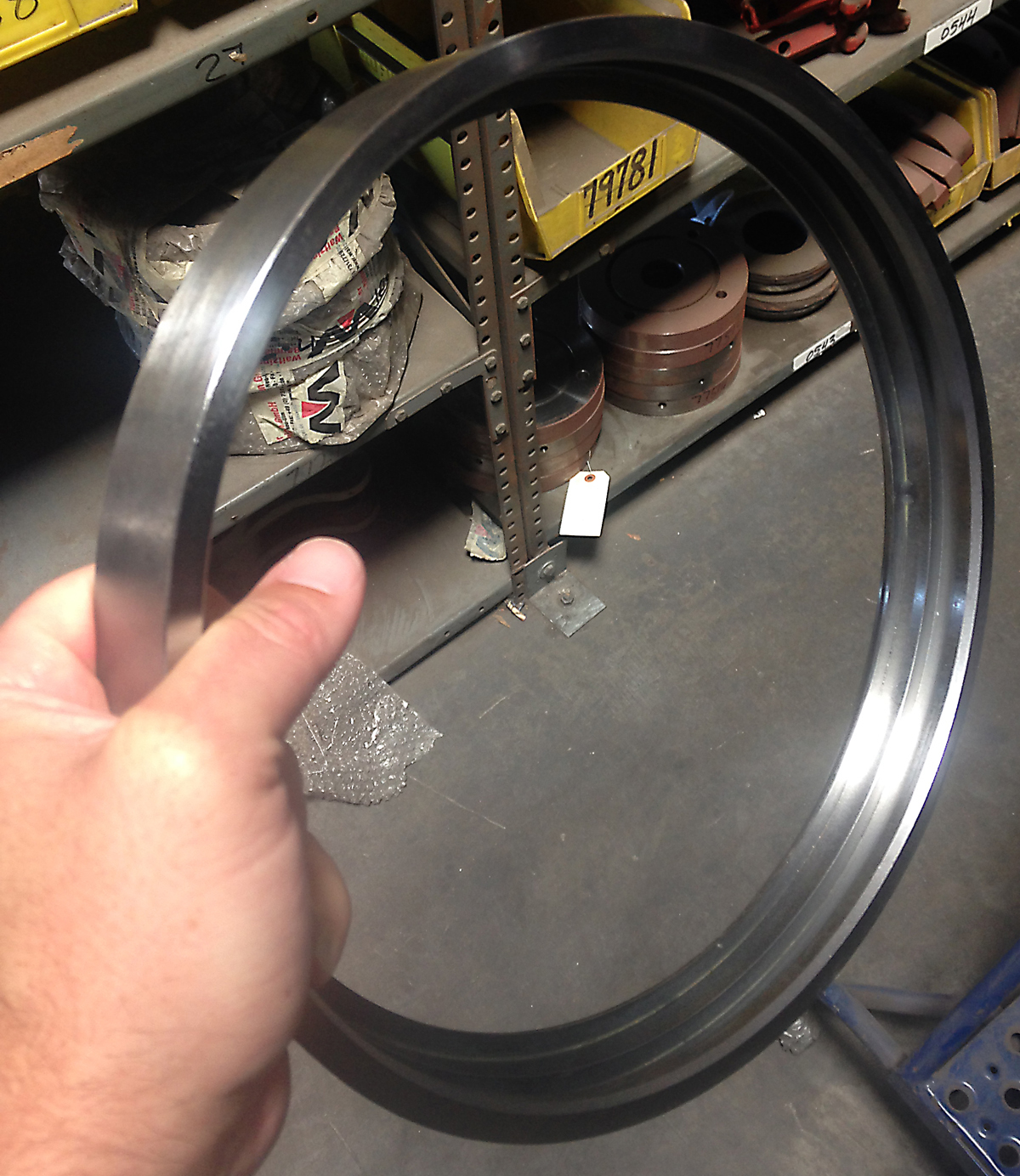

B-175271 - RING, FITTING RING (REPLACES B-175072)

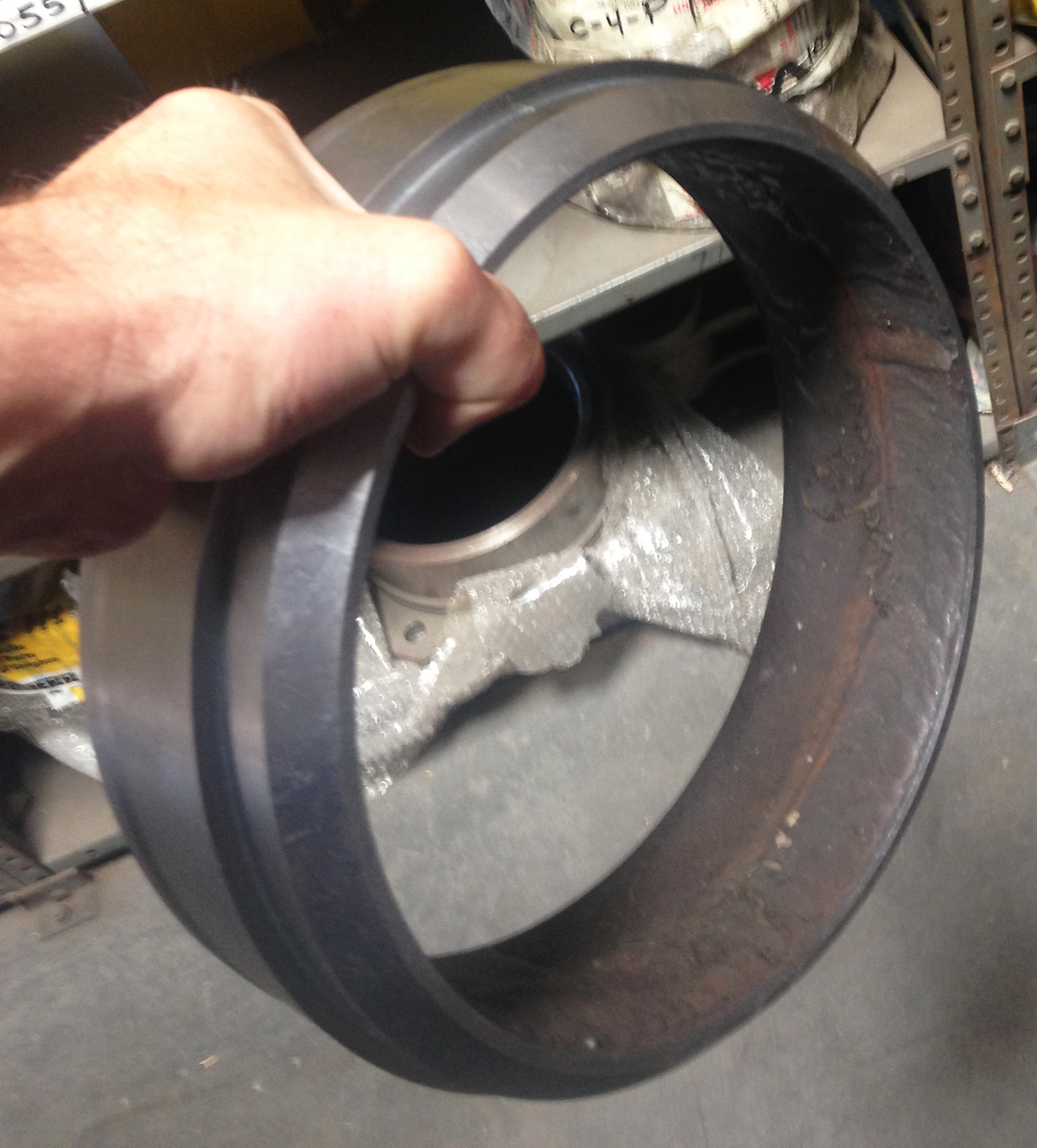

B-175272 - RING, ADAPTER, WITH HARDENED SURFACE (REPLACES B-175071)

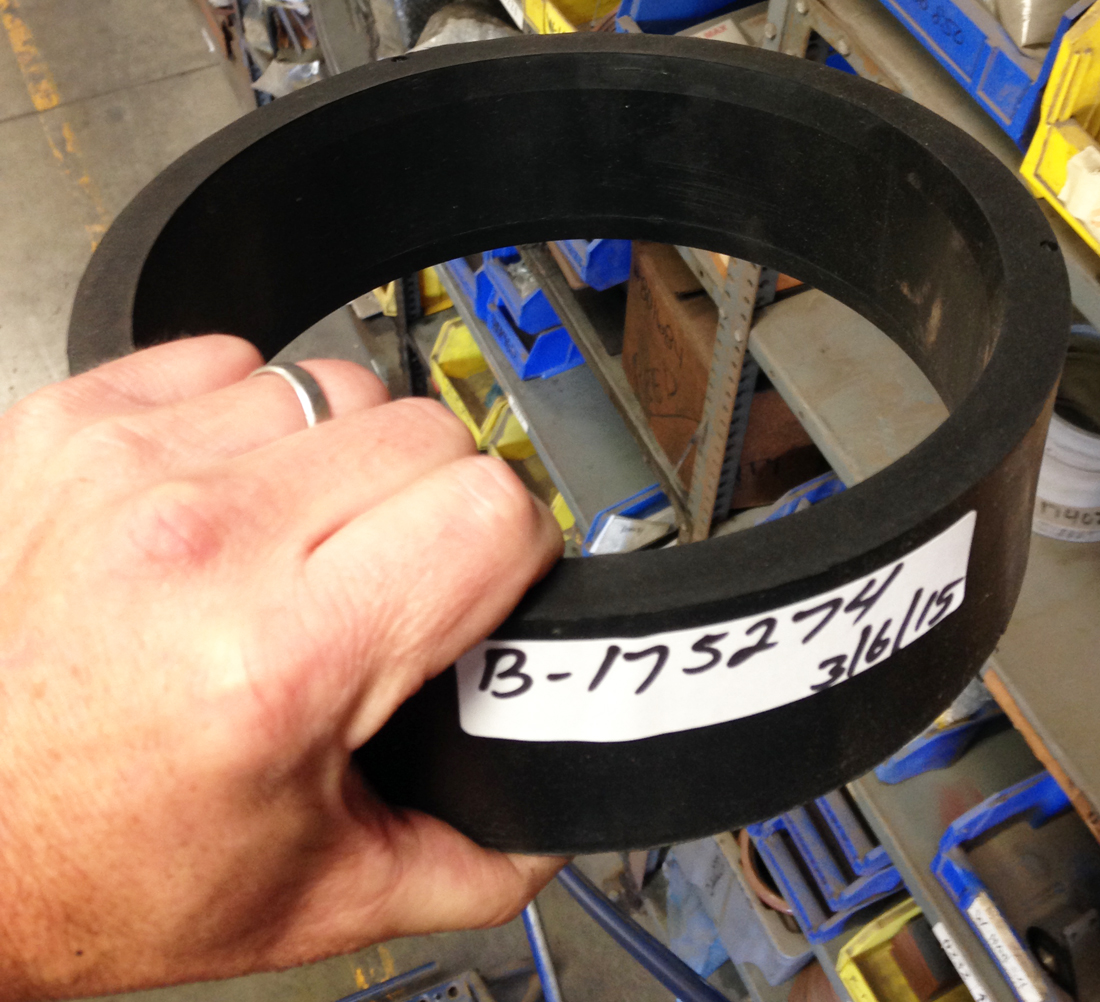

B-175274 - TENSION RING, REPLACES B-175202

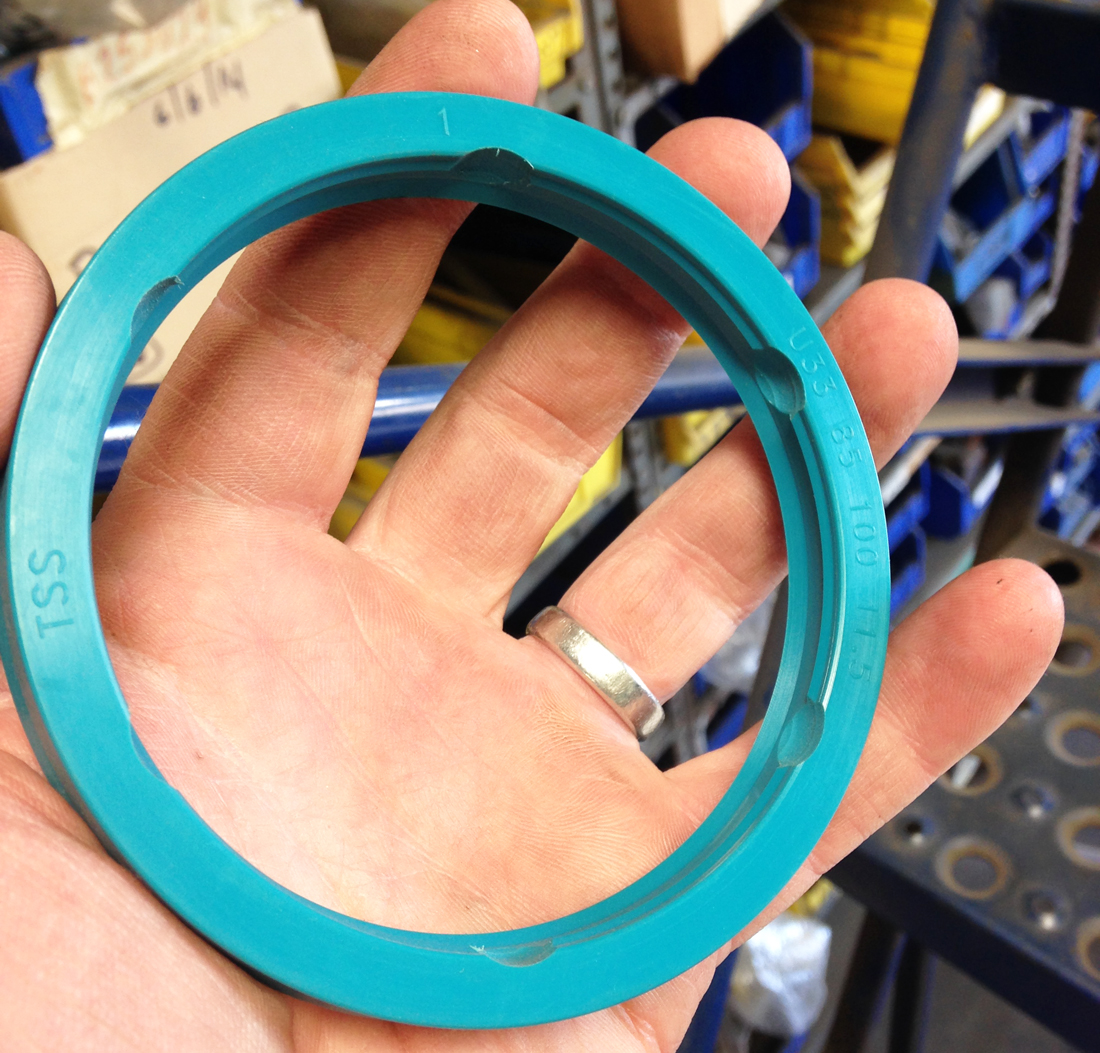

B-253029 - GROOVE RING, NOTCHED

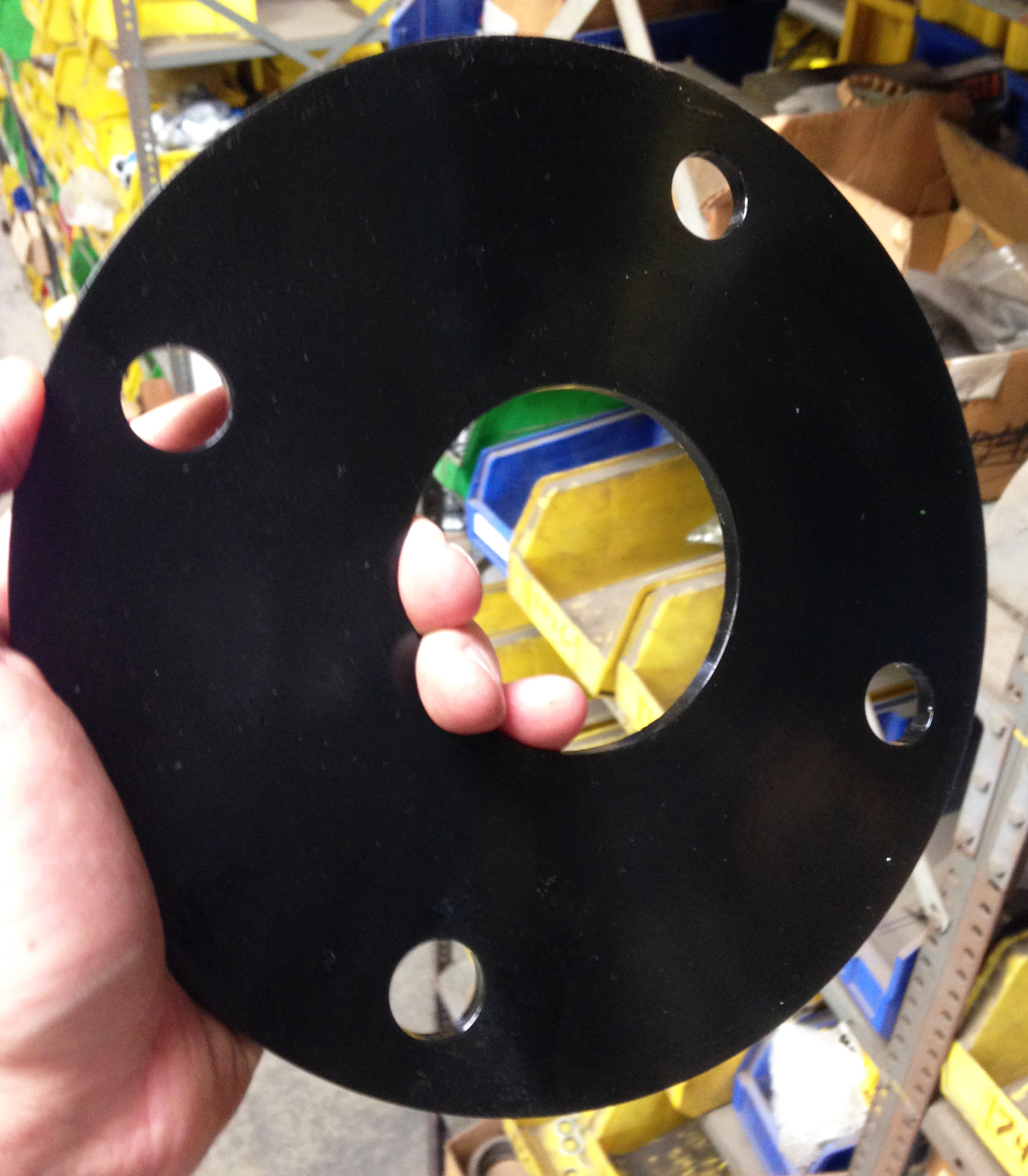

B-255044-1 - SEAL, DISC, URETHANE, IN HOPPER

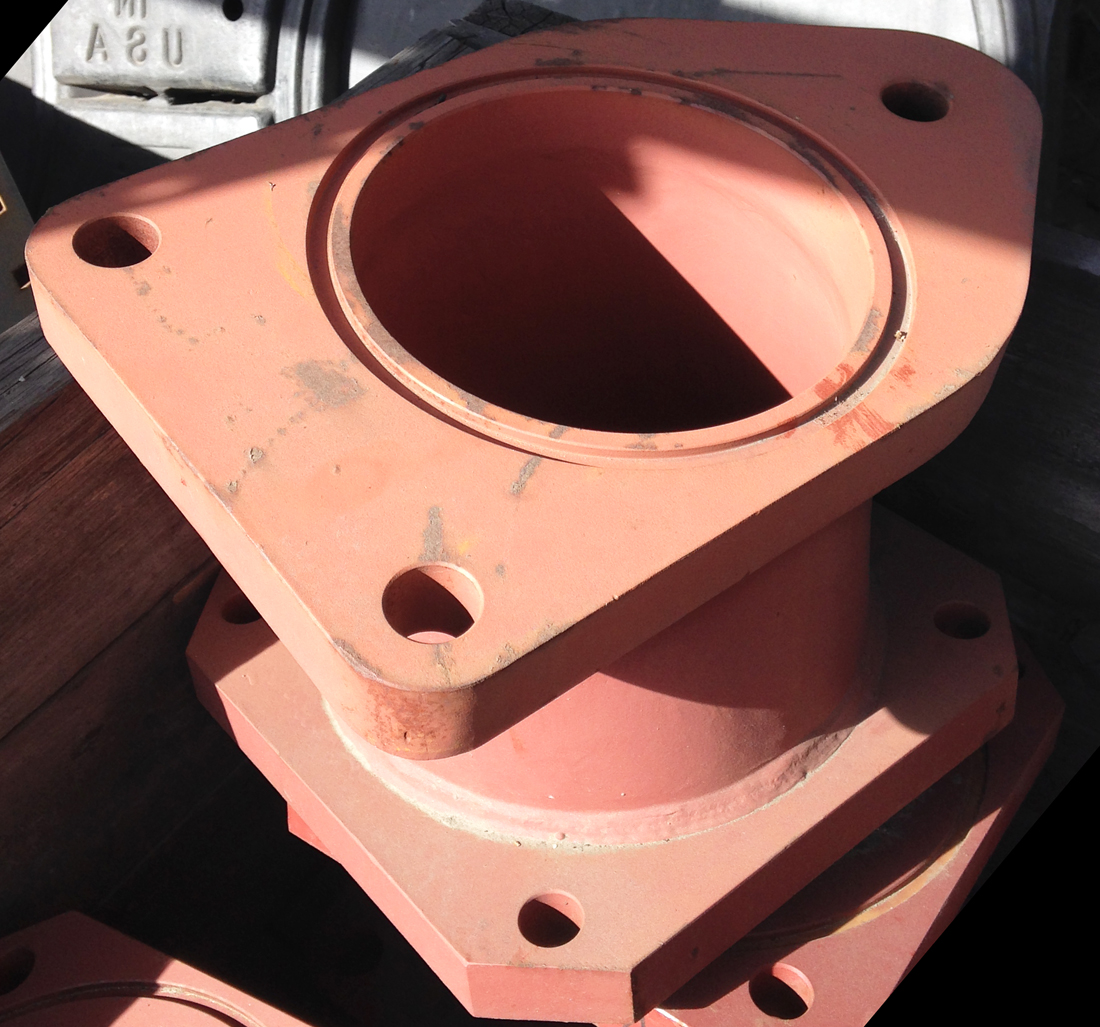

B-191010 - REDUCER, REGULAR (NON-HARDENED)

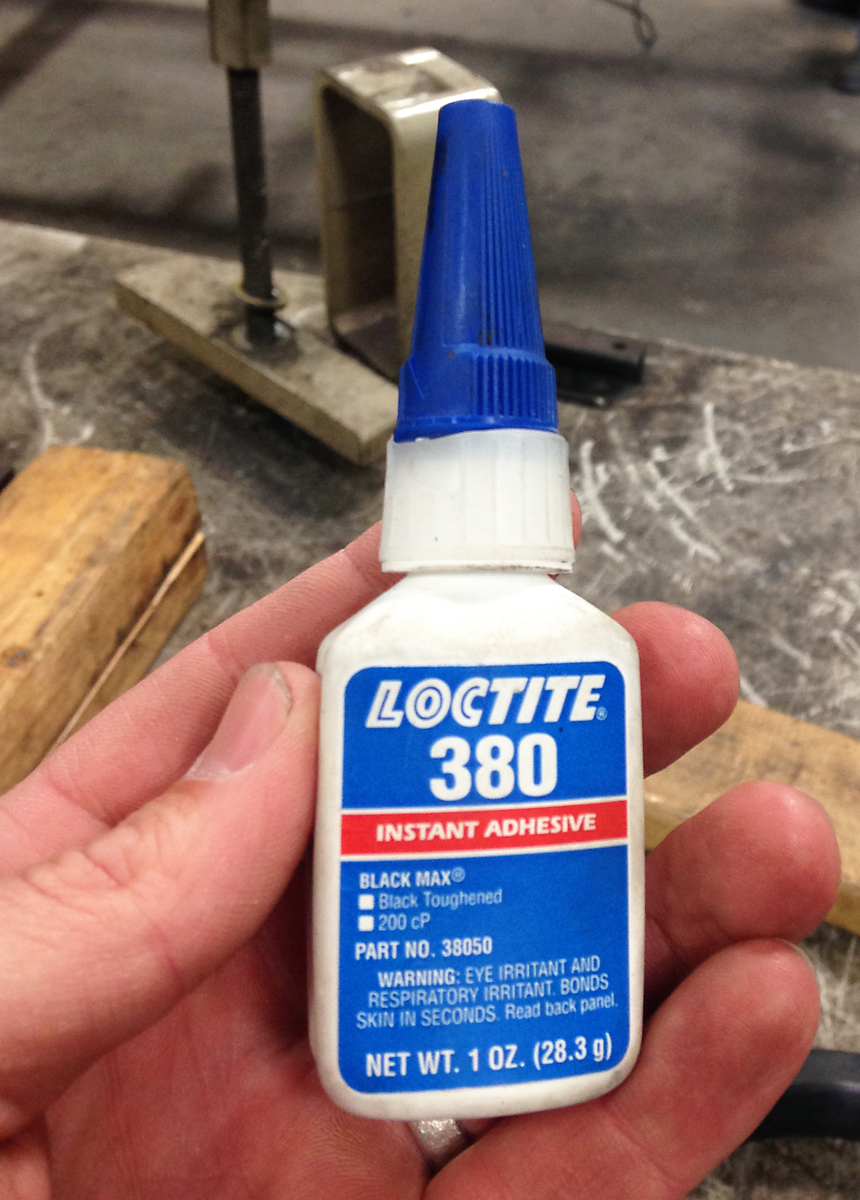

LOCTITE - SOLD AT YOUR LOCAL HARDWARE STORE - HOW TO VULCANIZE (GLUE)TWO PARTS TOGETHER

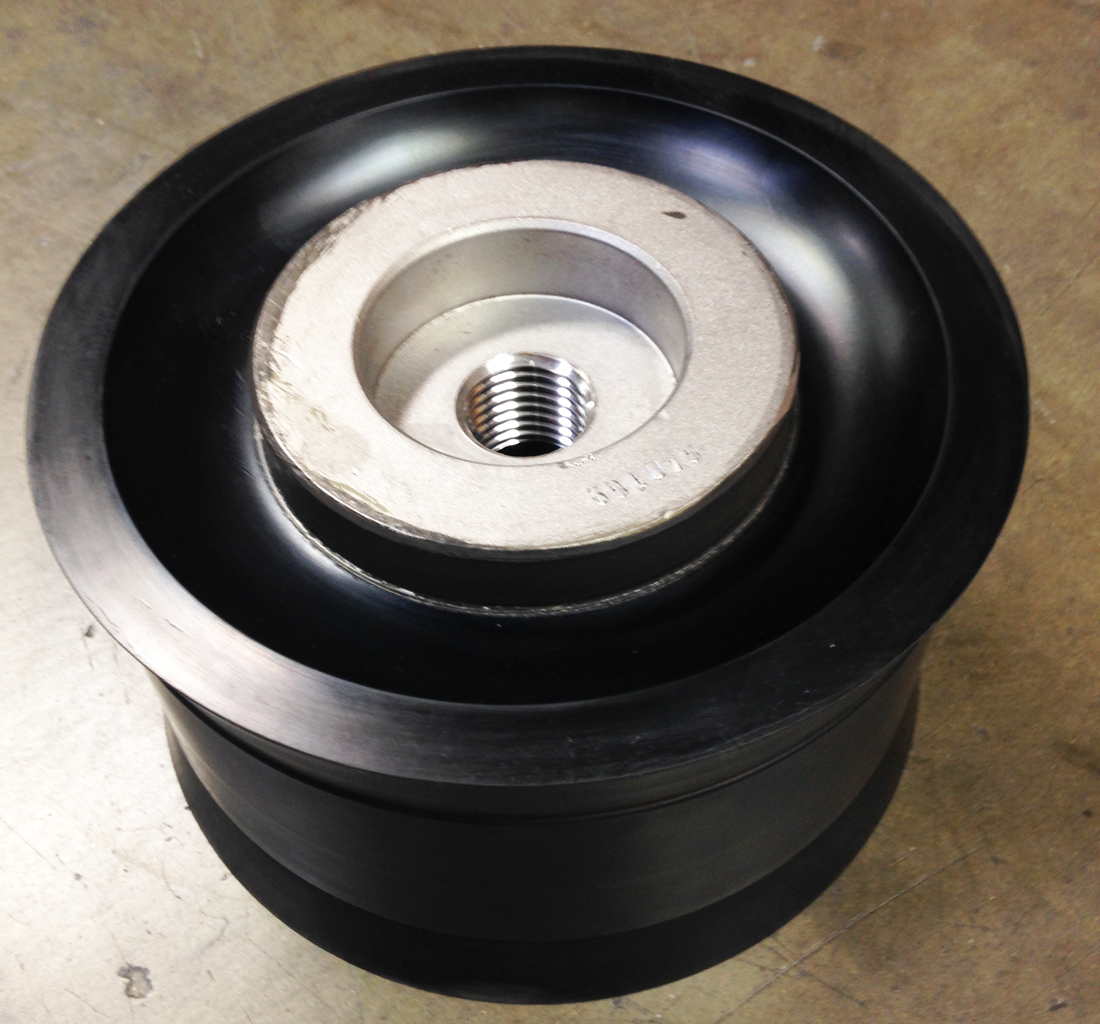

W-100175 - PISTON RAM, DN 230, QTY 1

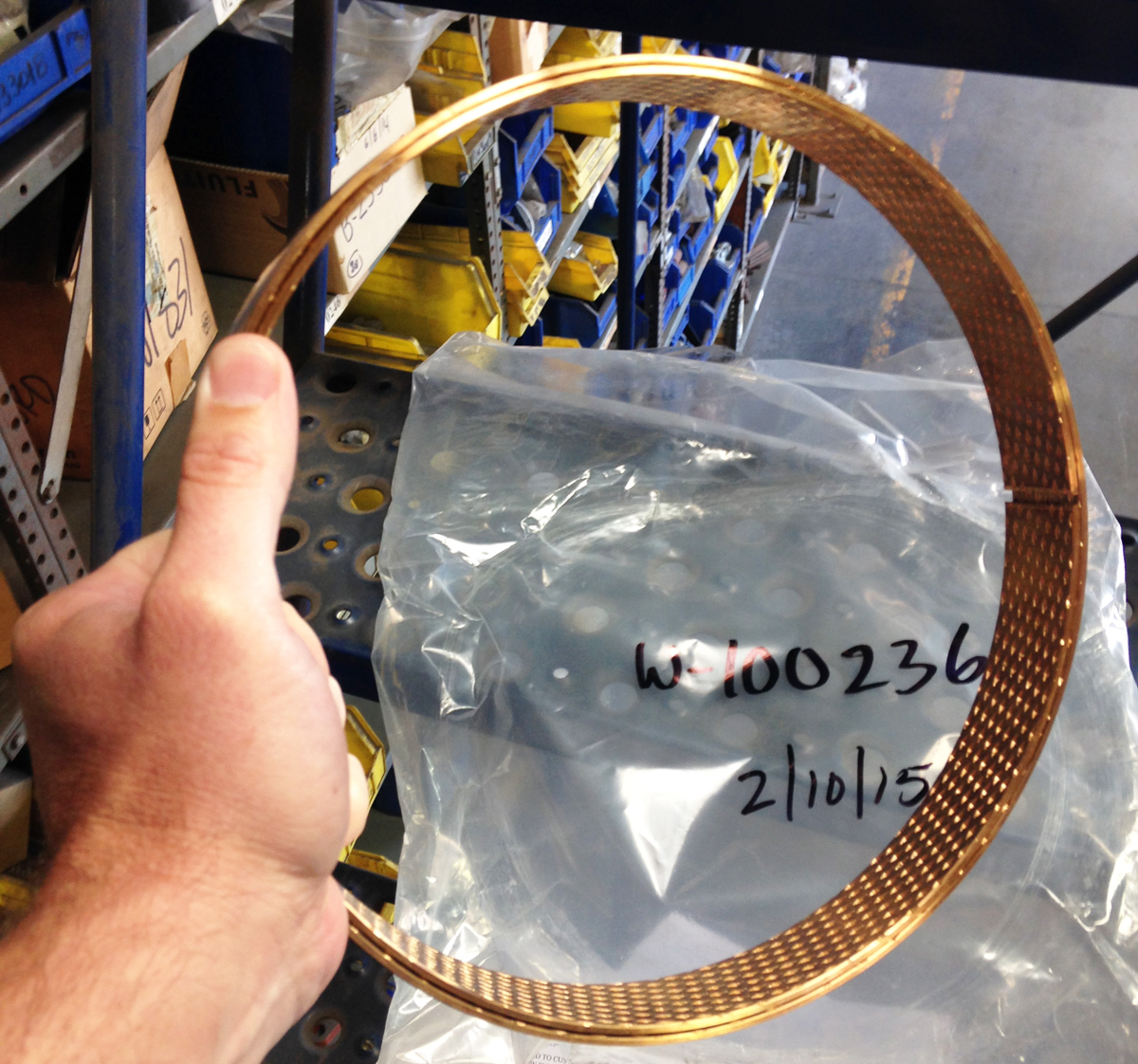

W-100236 - BRONZE BUSHING

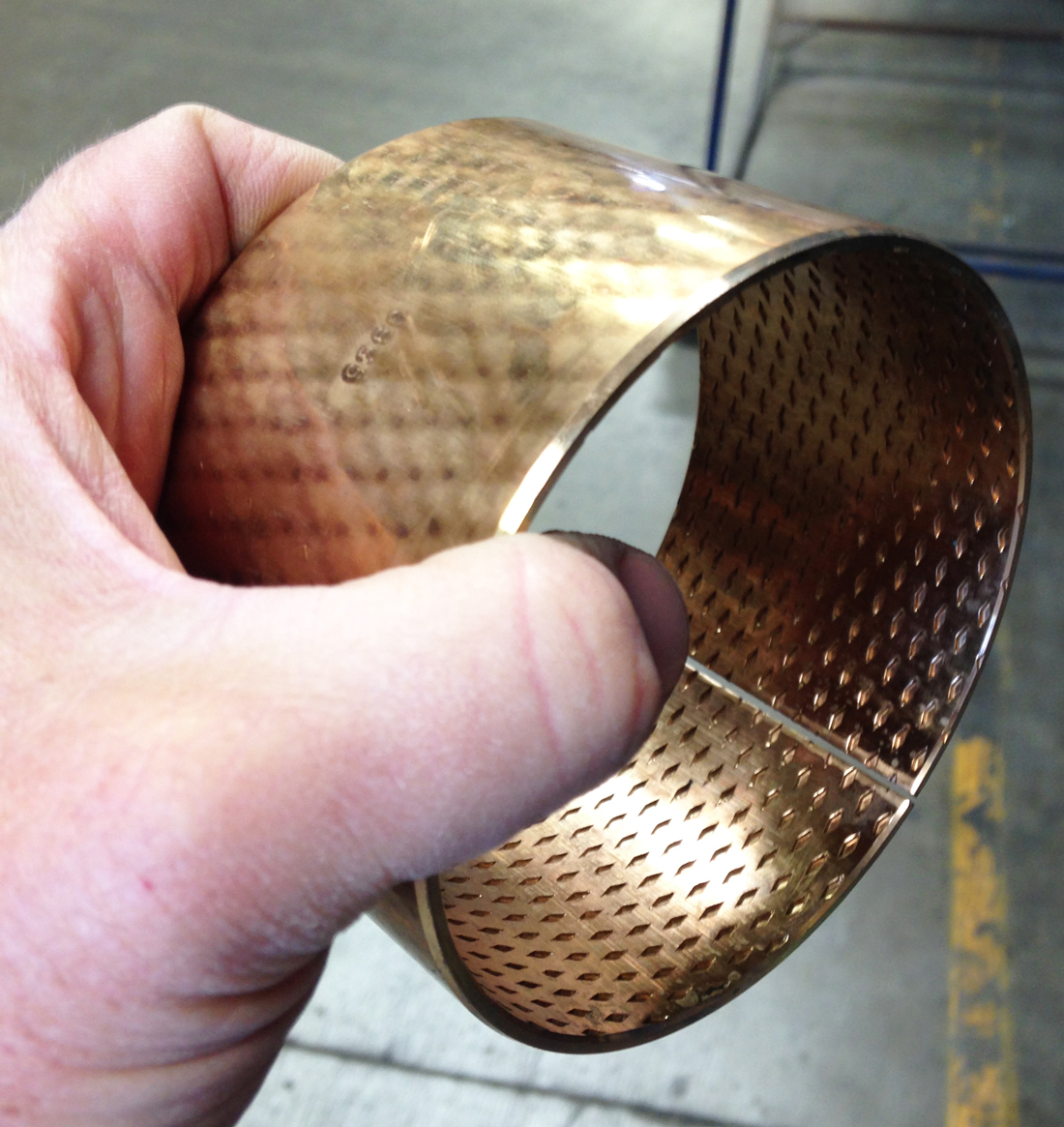

W-100237 - BRONZE BUSHING
W-100255 - GREASE TUBING, LUBE, 600 BAR

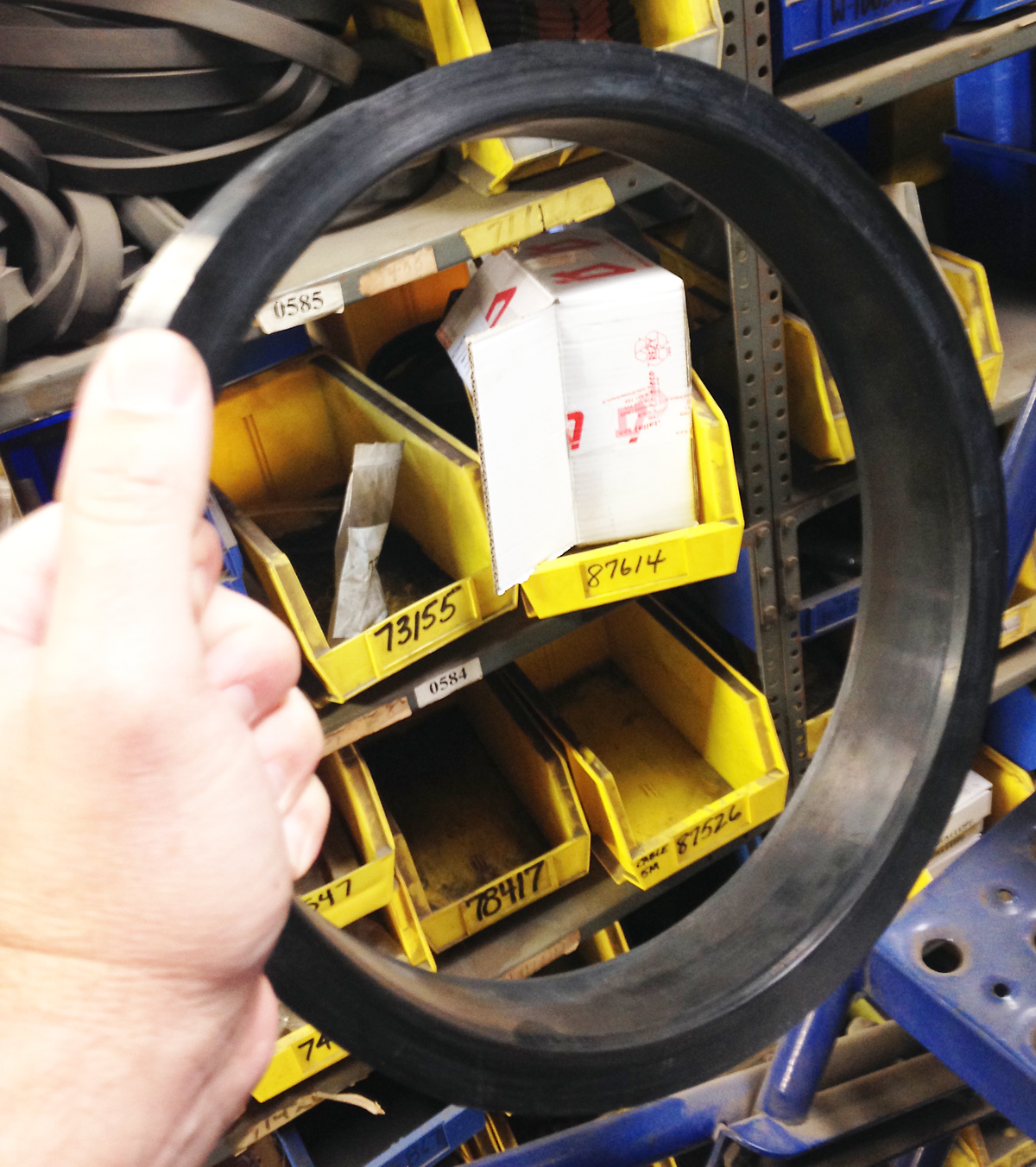

W-100262 - TENSION RING

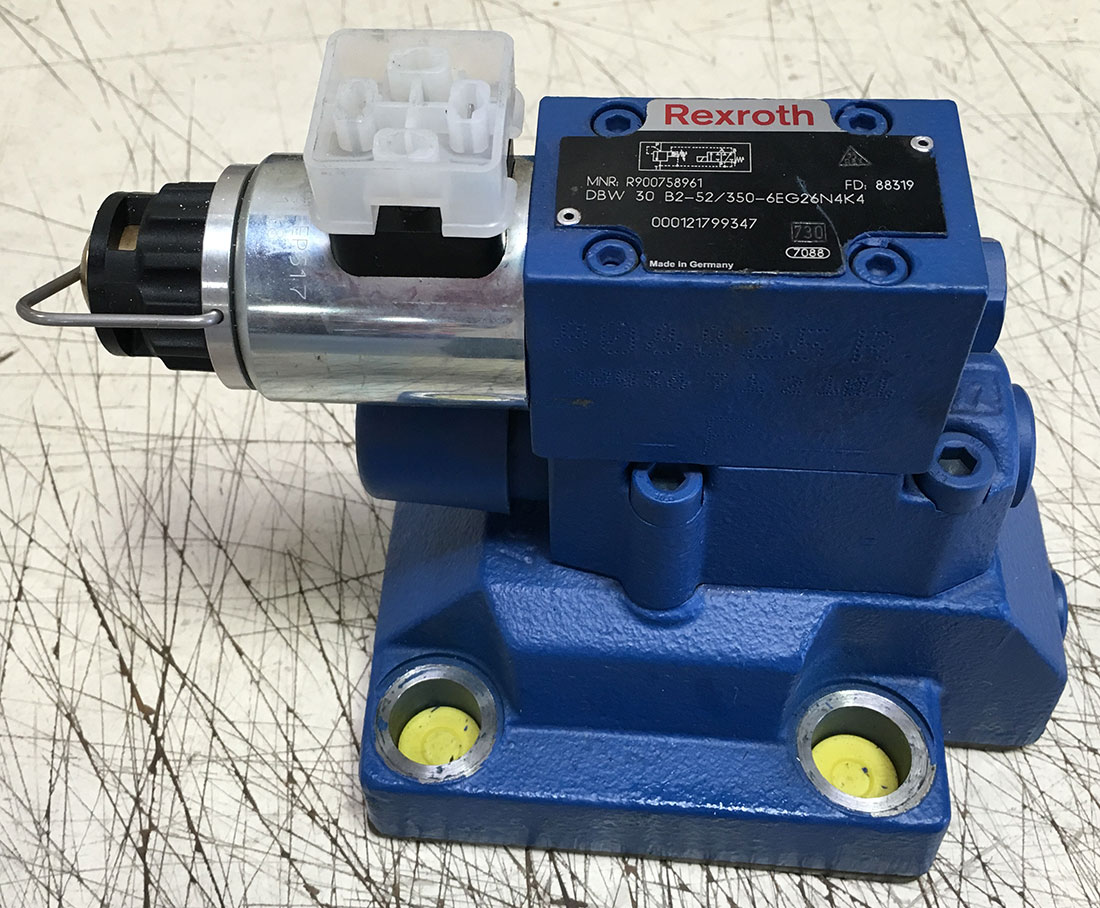

W-101030 - RELIEF VALVE DBW30

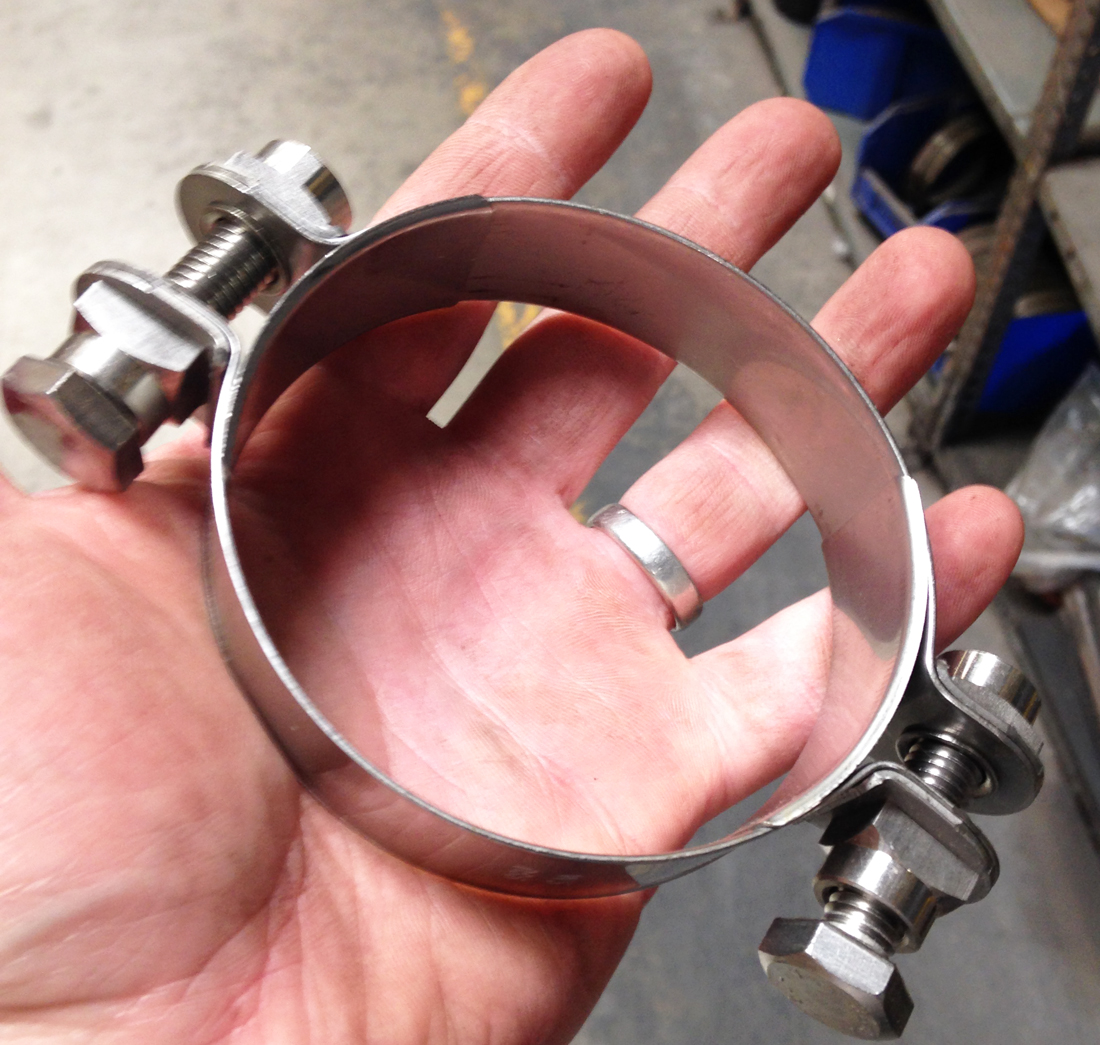

W-101381 - PISTON HOSE CLAMP

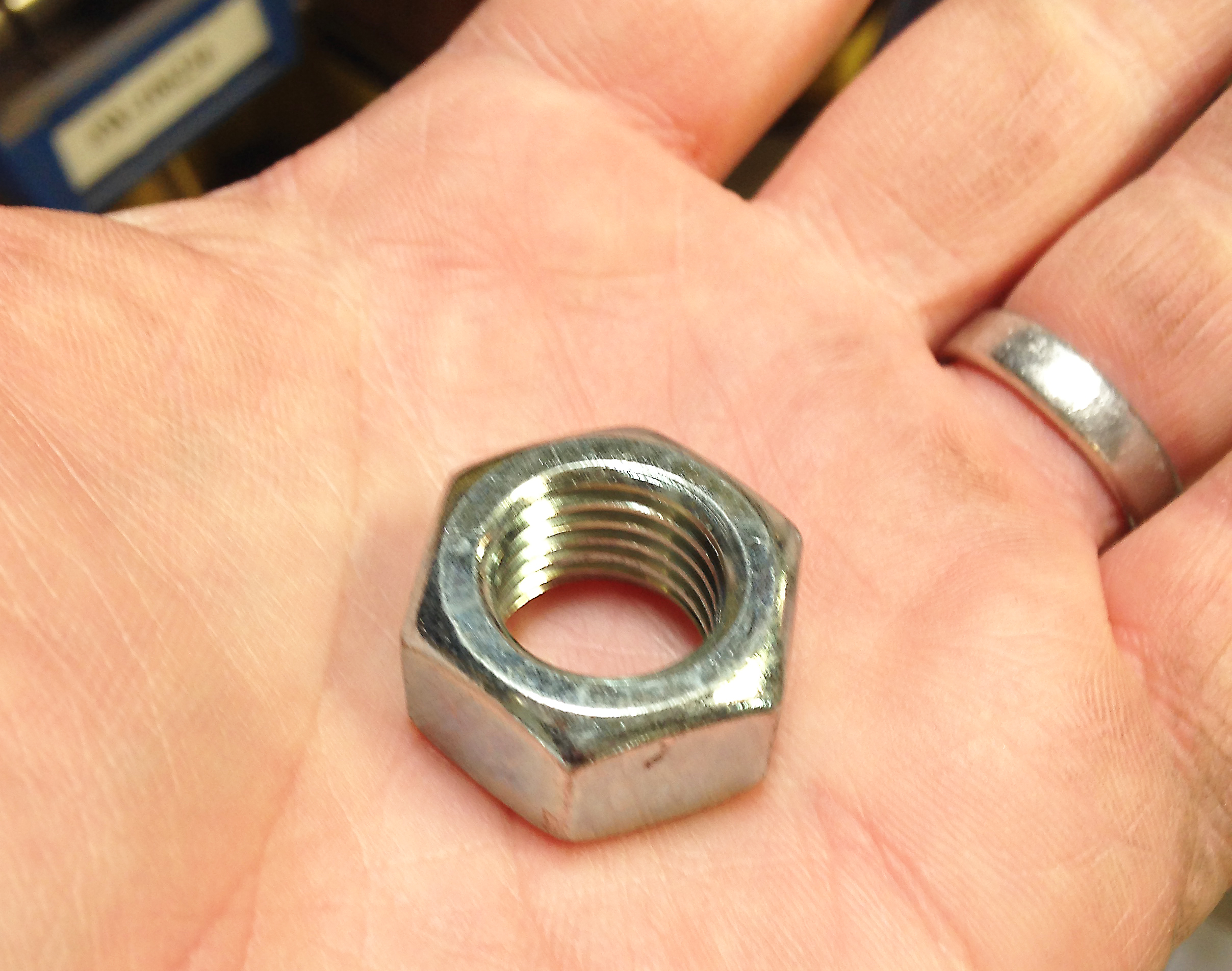

W-101555 - NUT, M16 DIN 934

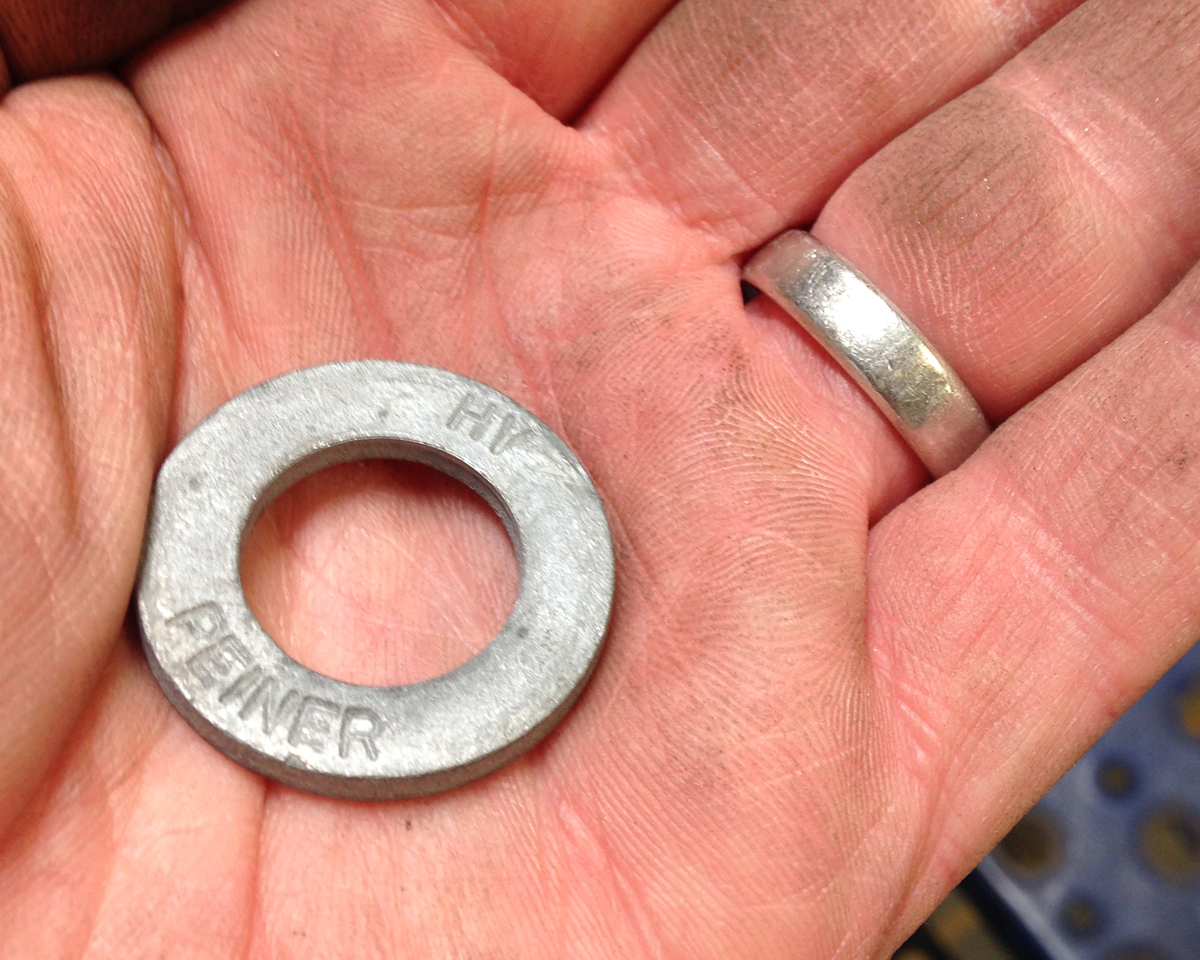

W-101558 - WASHER, DIN 6916 17

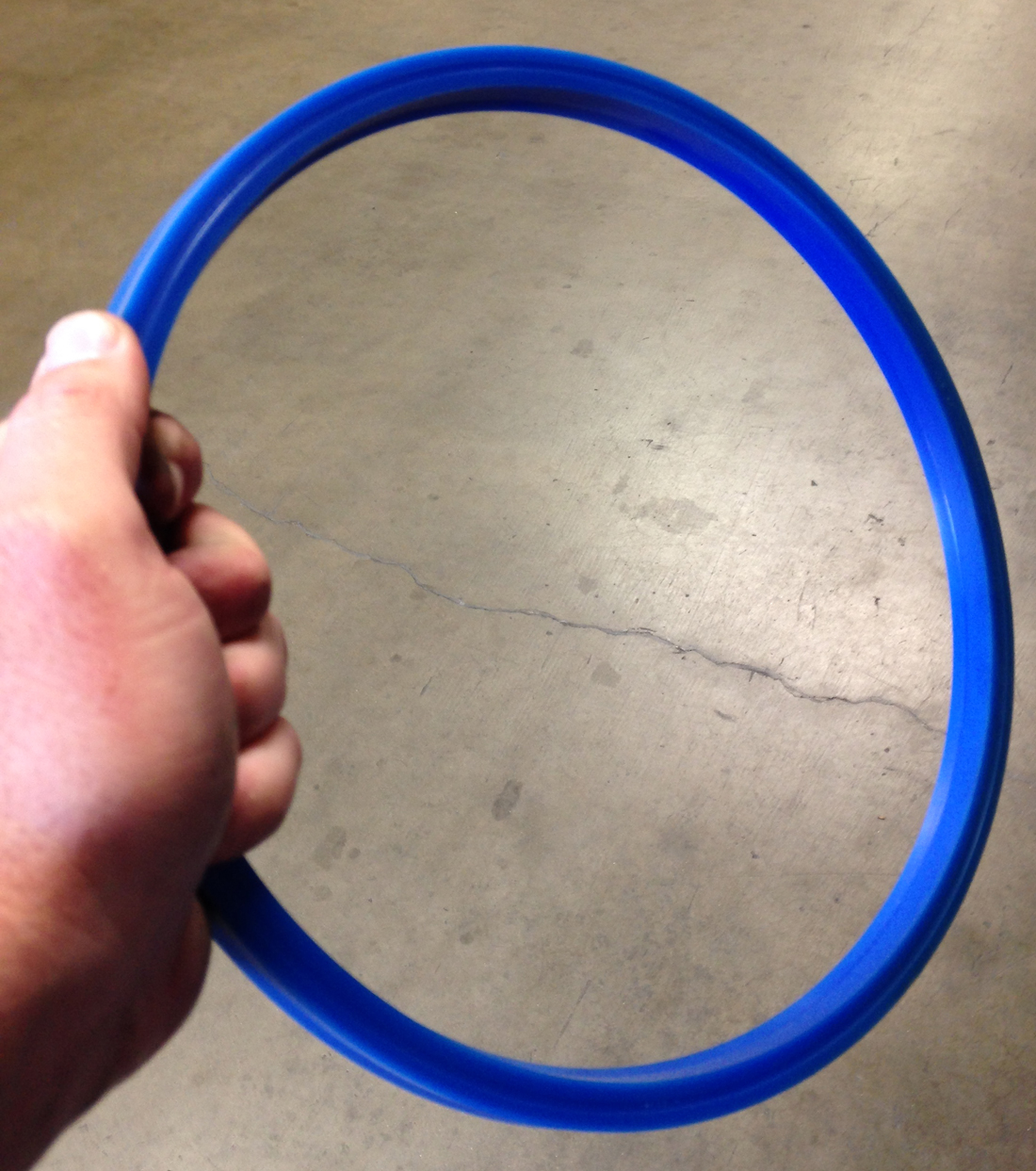

W-100479 - GROOVE RING

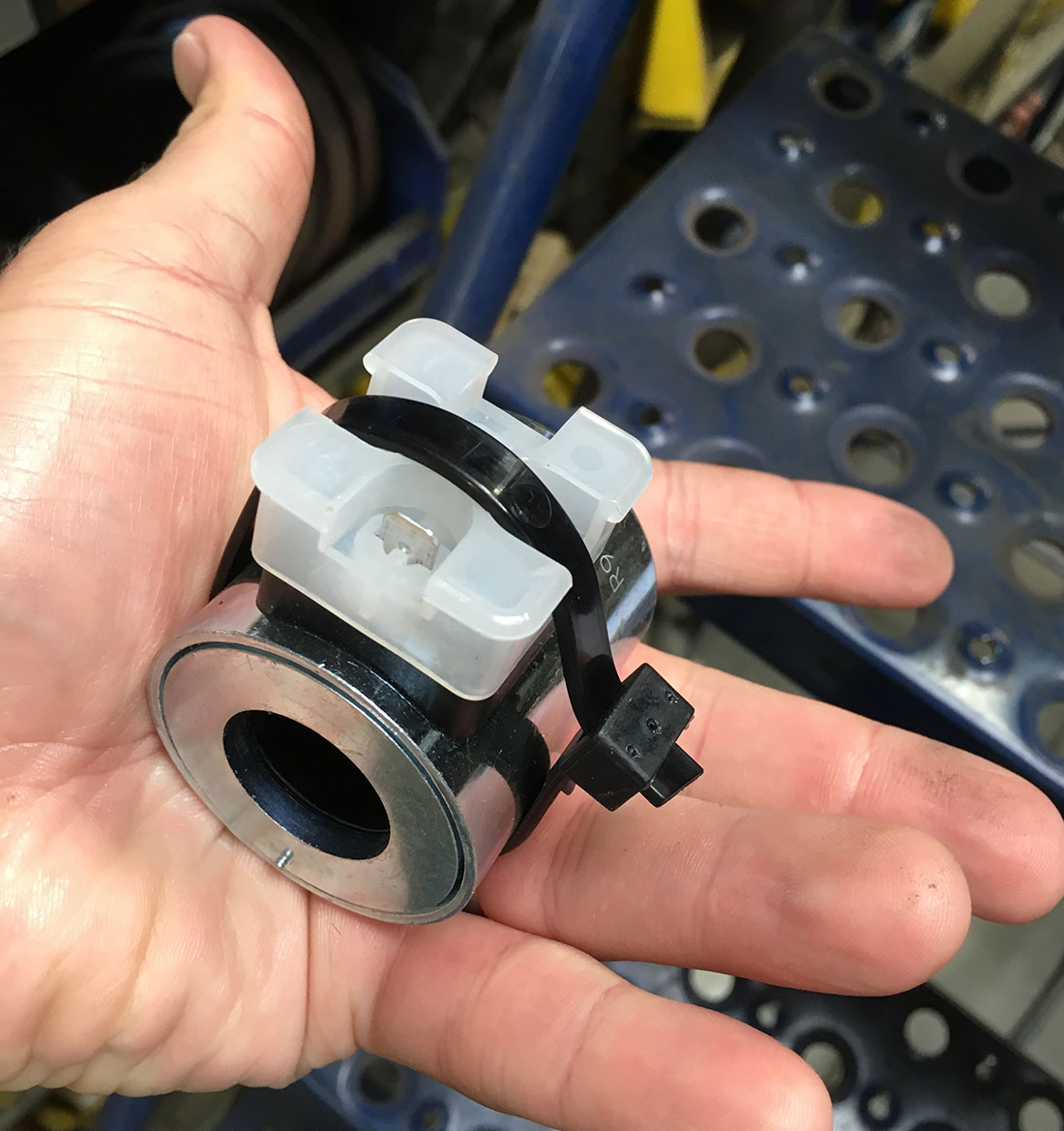

W-102396 - COIL, 24 VOLT
W-102448 - O RING - 129.5 X 3 SH 90

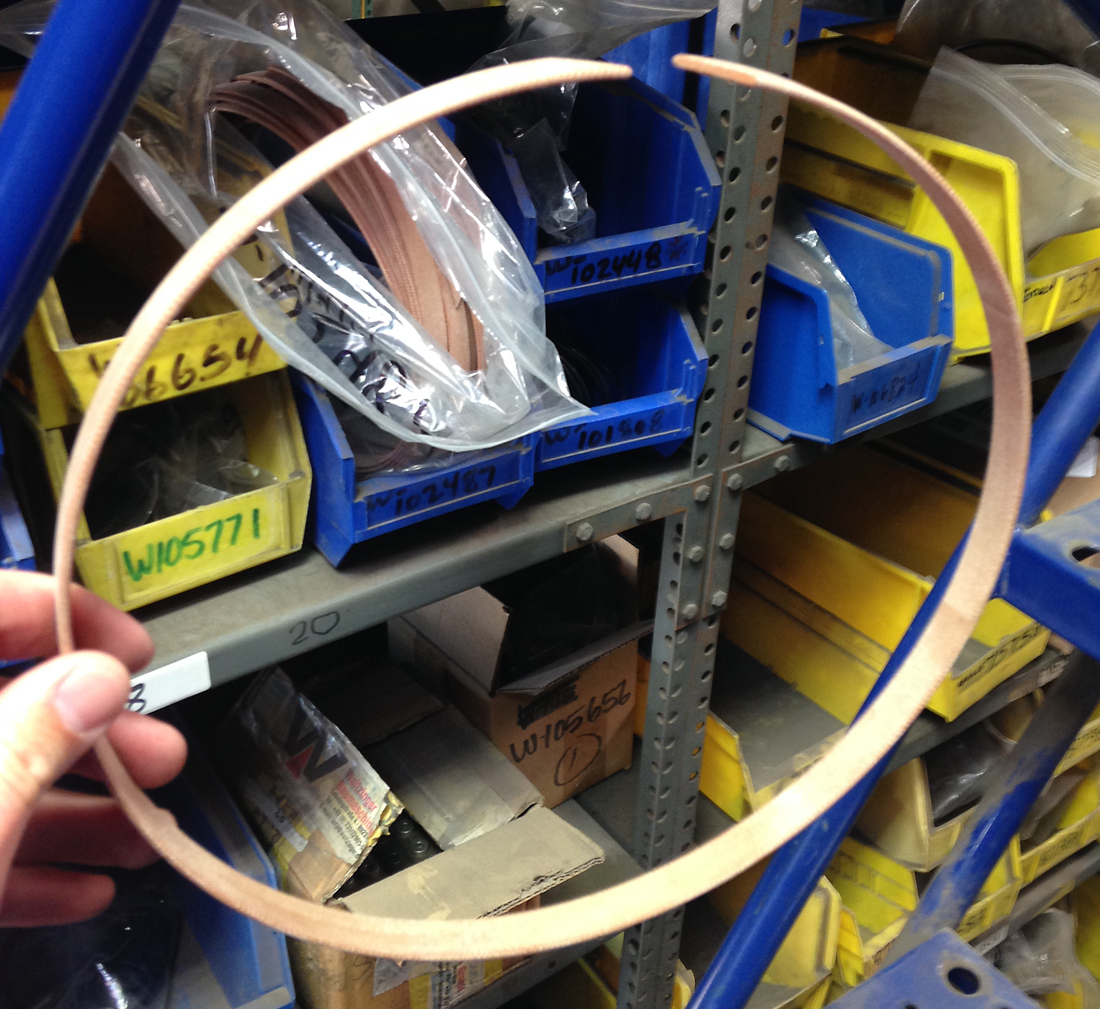

W-102487 - ROD WEAR RING

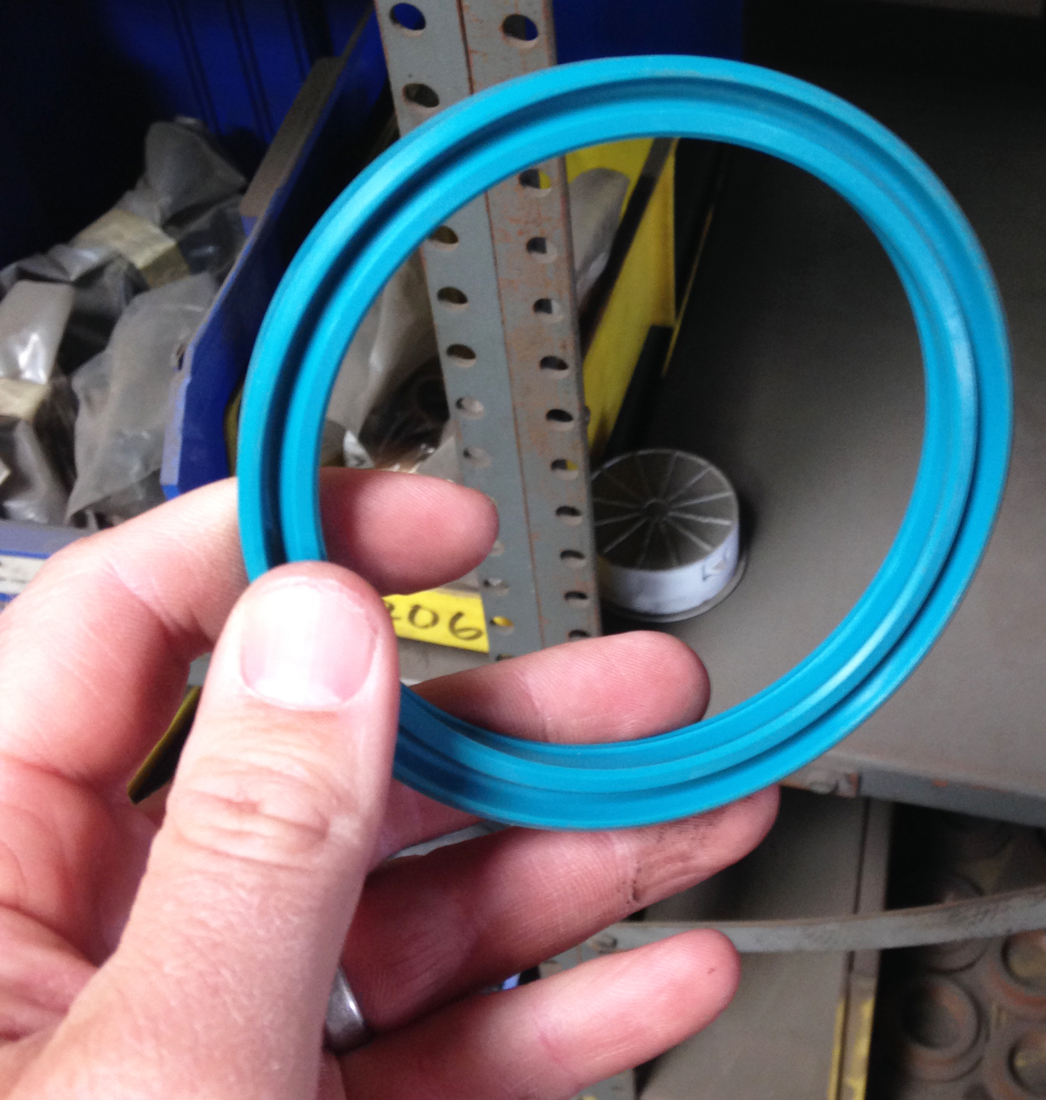

W-102544 - GROOVE RING, UNNOTCHED

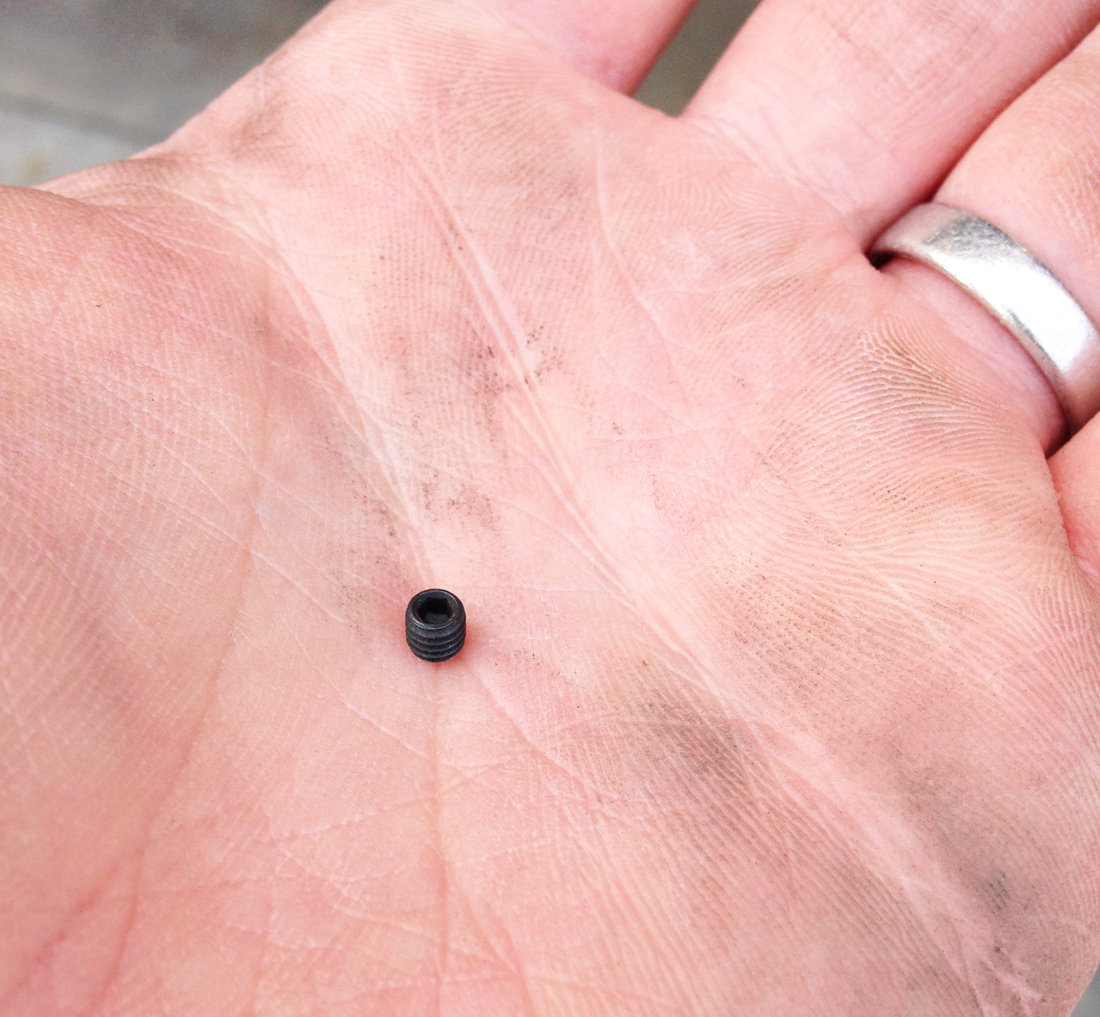

W-102710 - SET SCREW

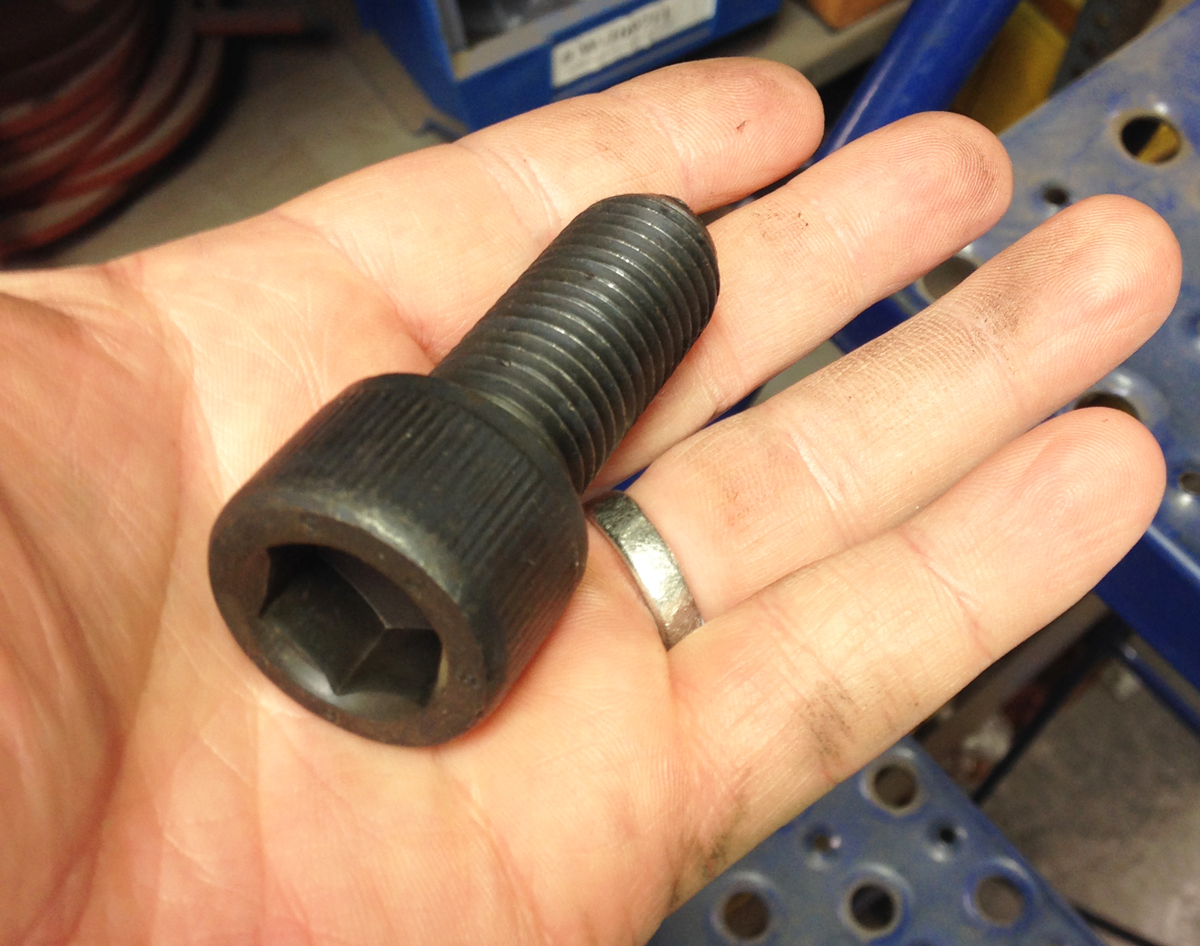

W-102854 - SHCS, M20X50
W-102893 - WASHER, 17MM, DIN 25

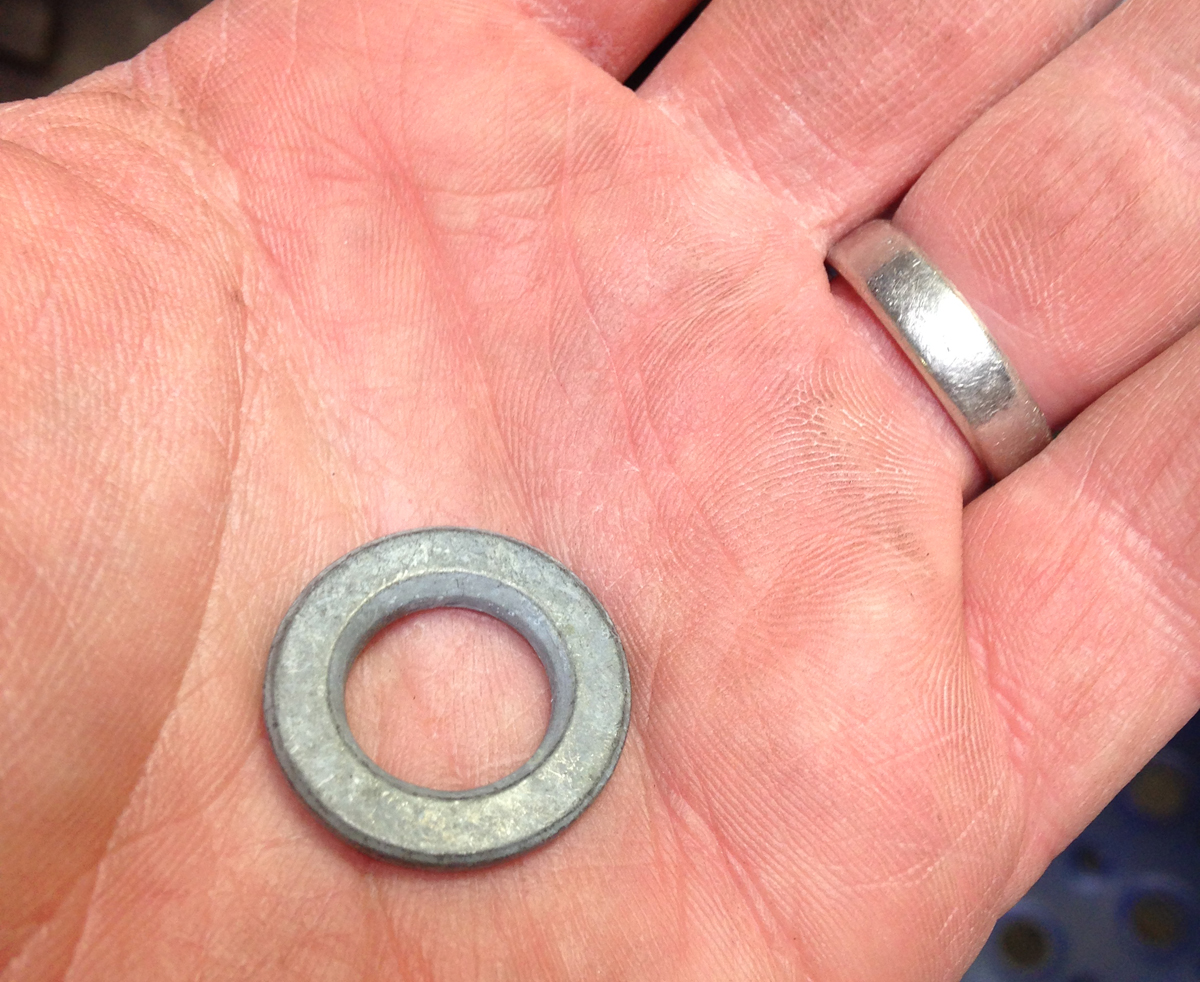

W-102962 - WASHER - M12, DIN 6916

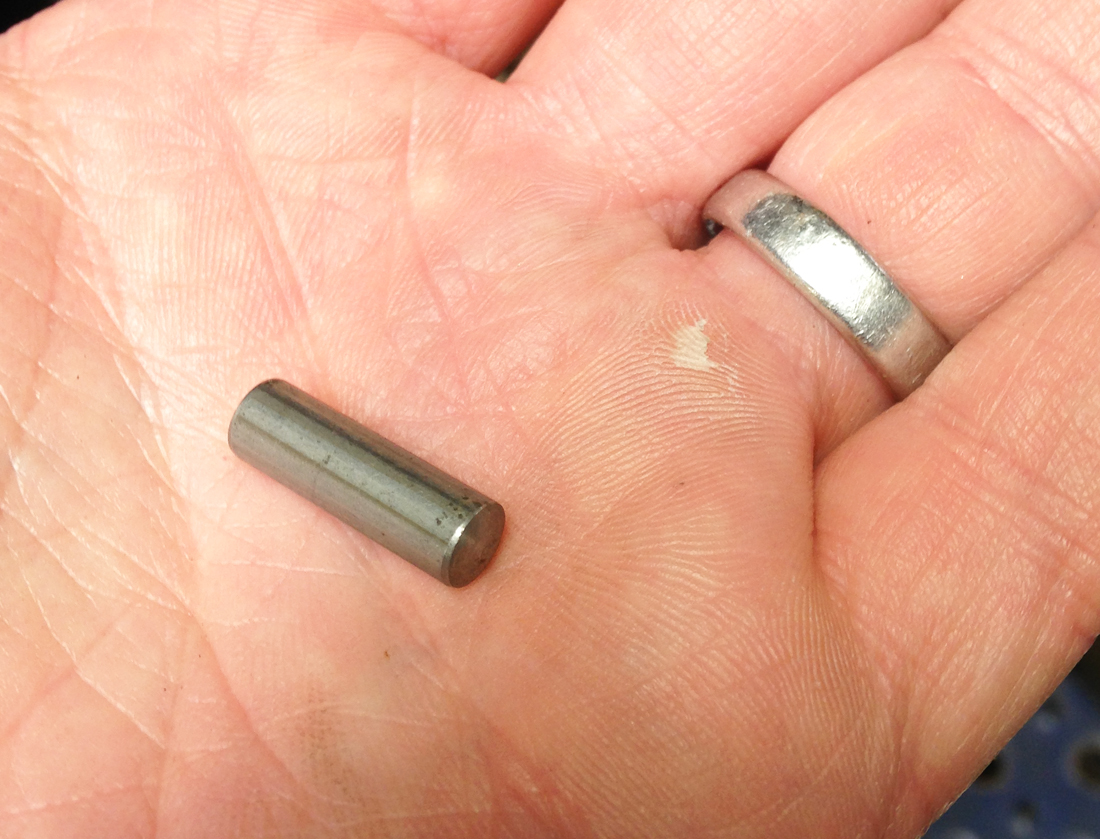

W-103061 - PIN

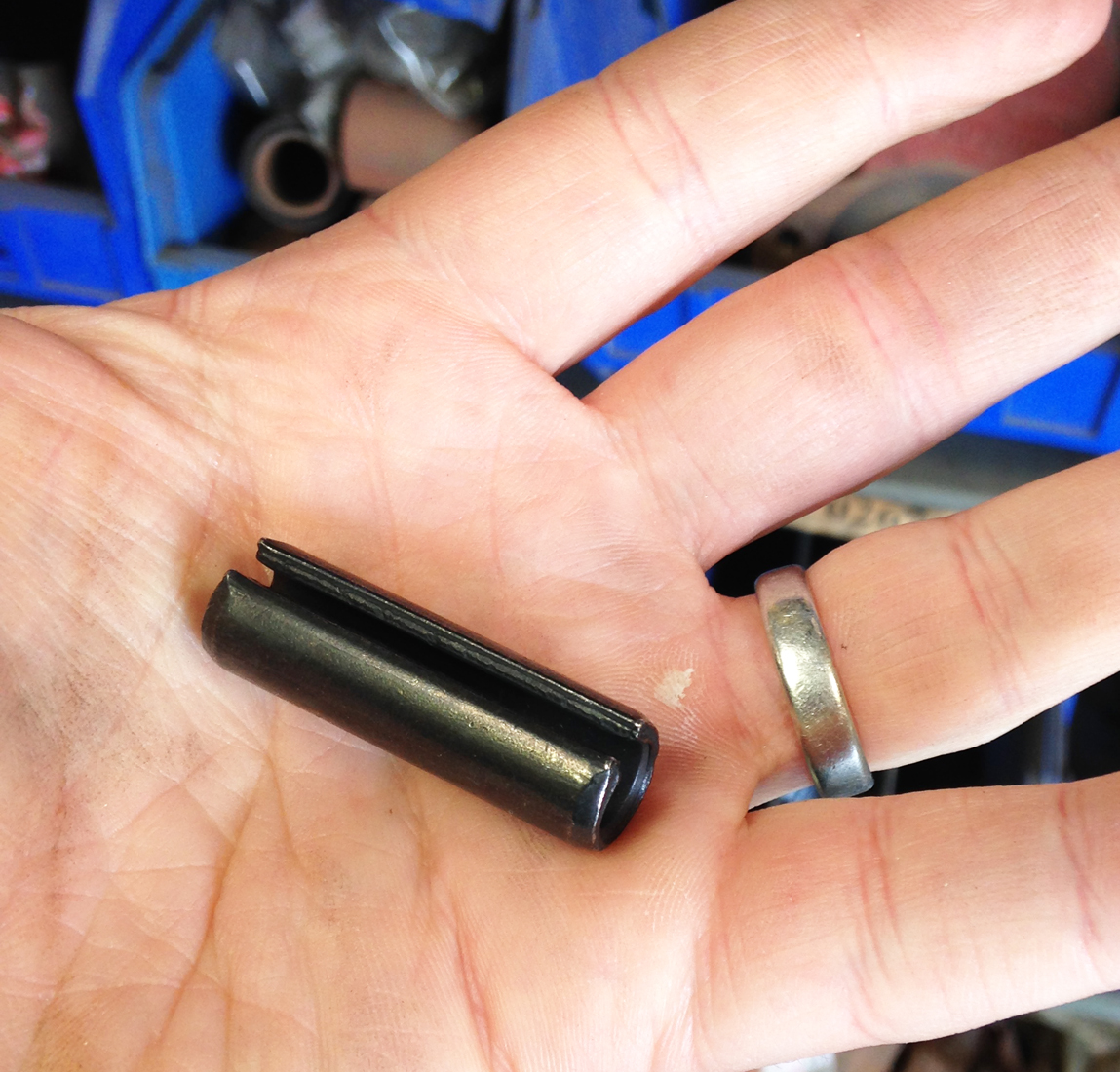

W-103076 - PIN

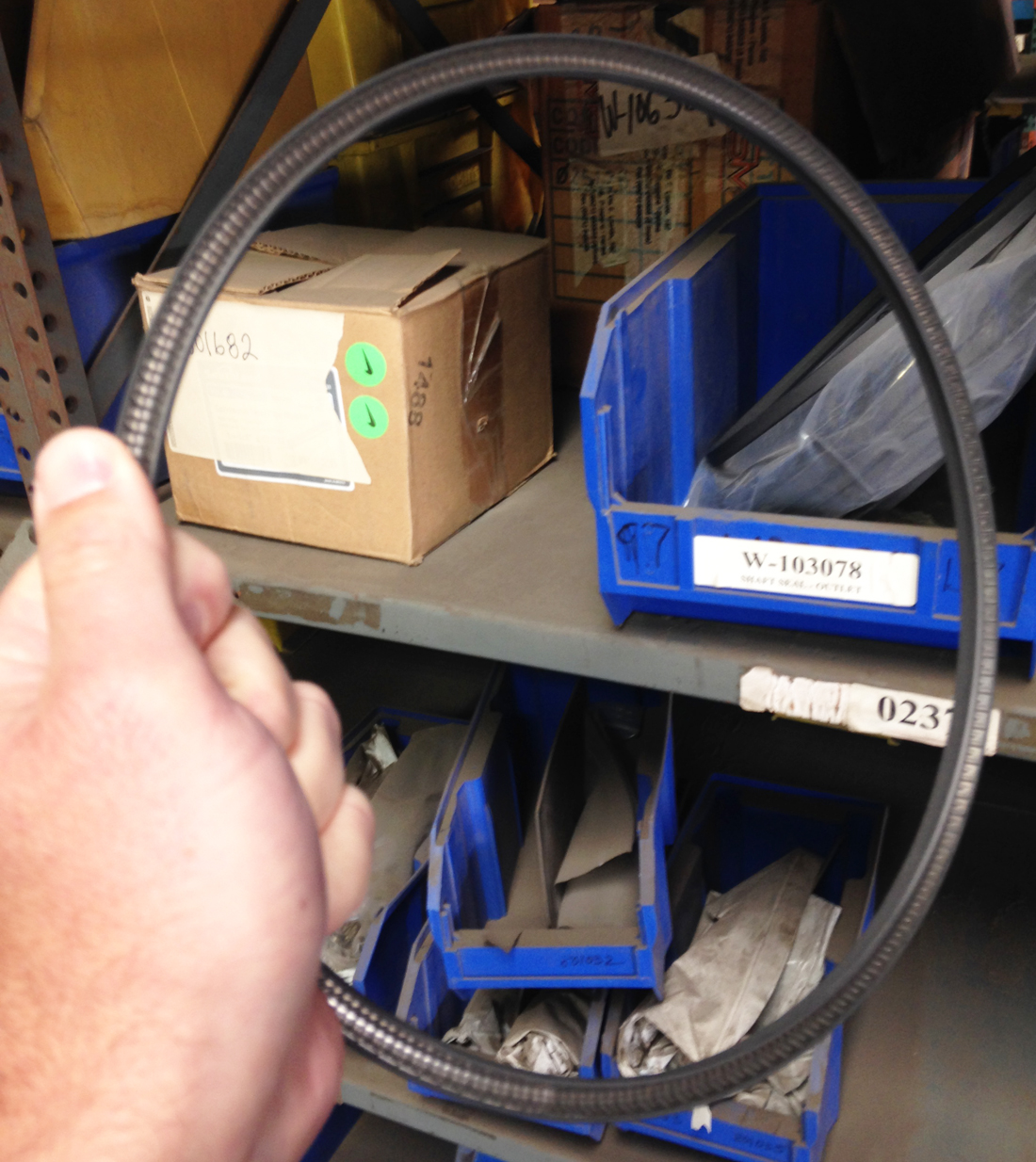

W-103078 - OUTLET SHAFT SEAL

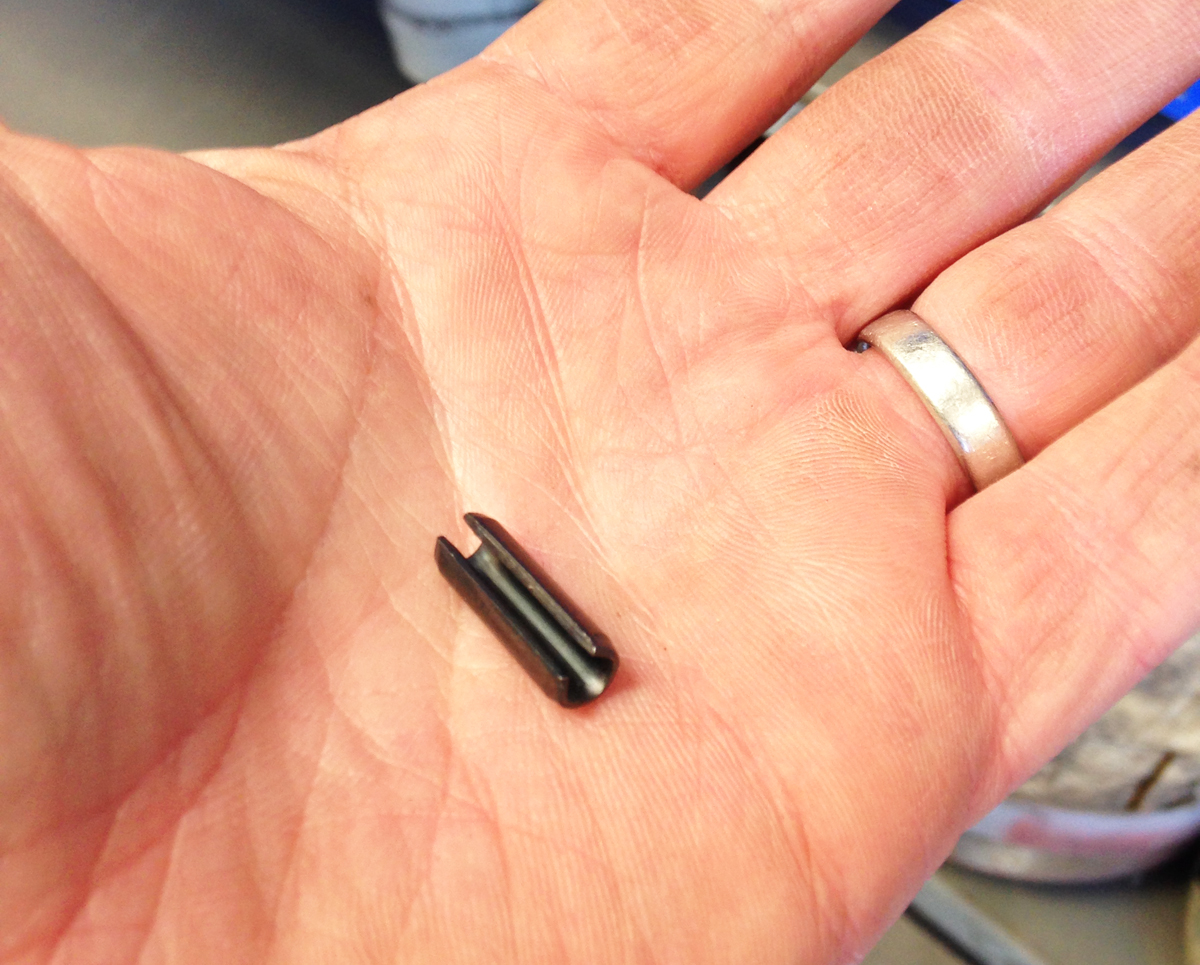

W-103106 - AUGER SHAFT PIN

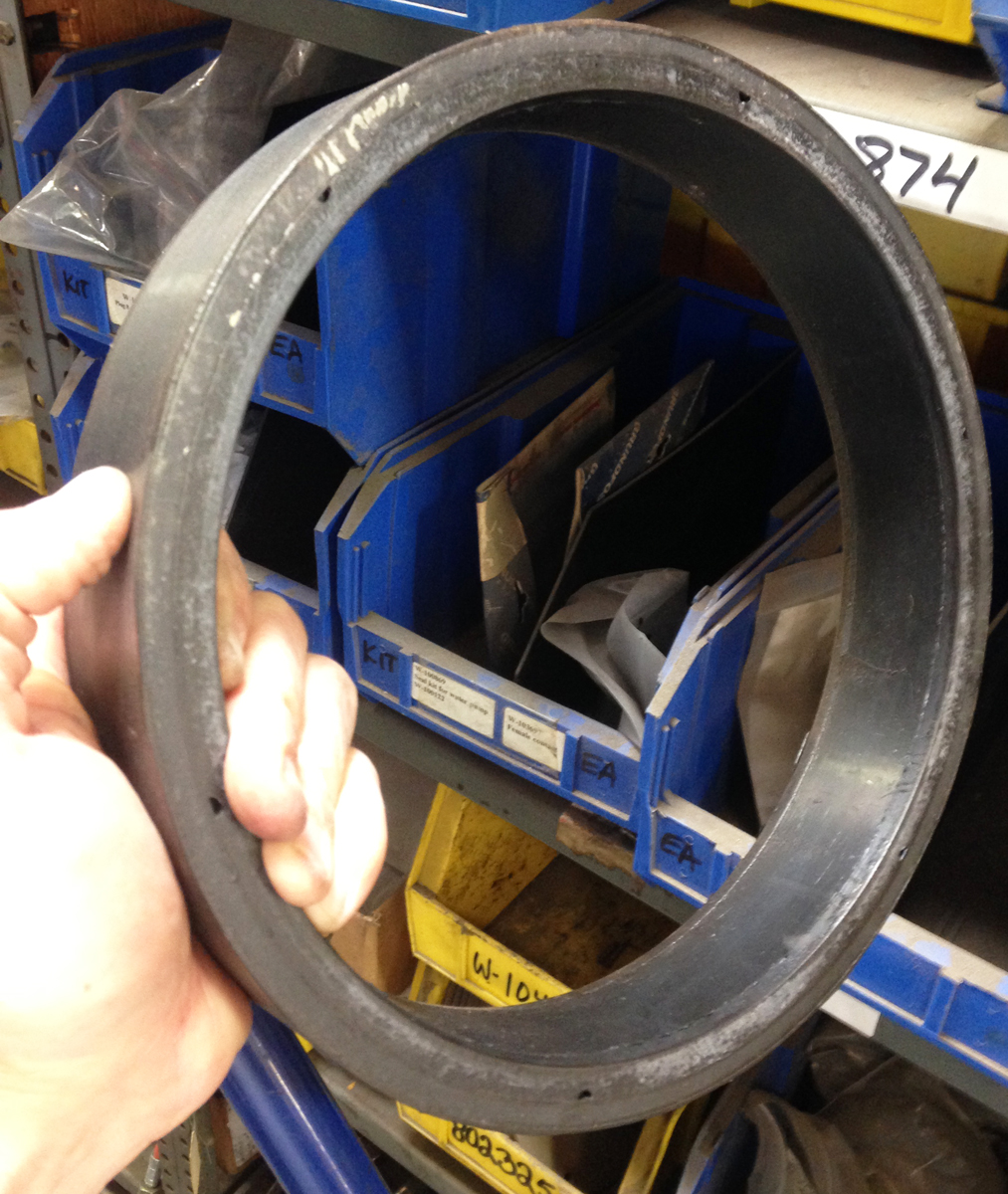

W-103378 - TENSION RING, BUY WITH B-174092

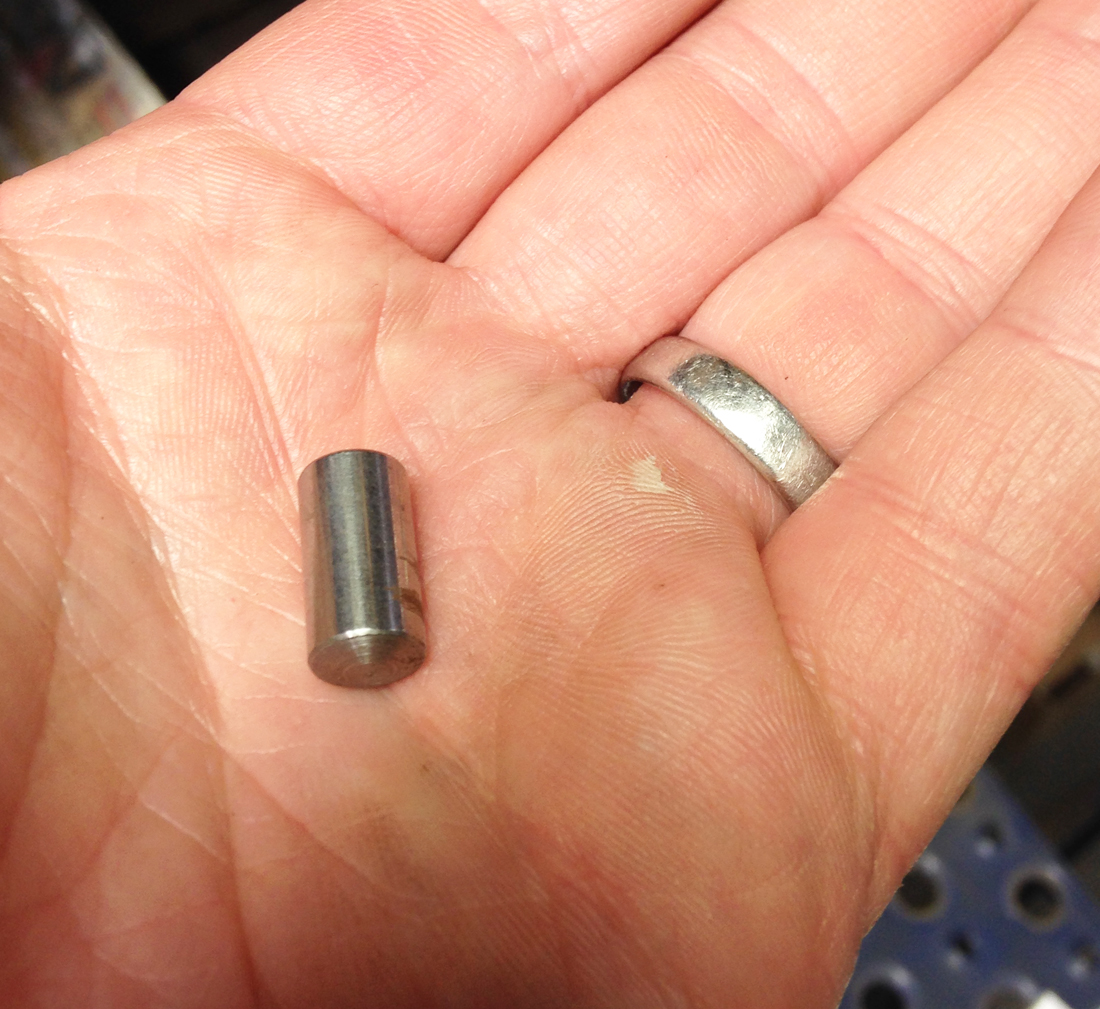

W-103717 - PIN
W-104025 - OBSOLETE, USE W-104025-1
W-104025-1 - O-RING, 196 X 6, FOR B-191010

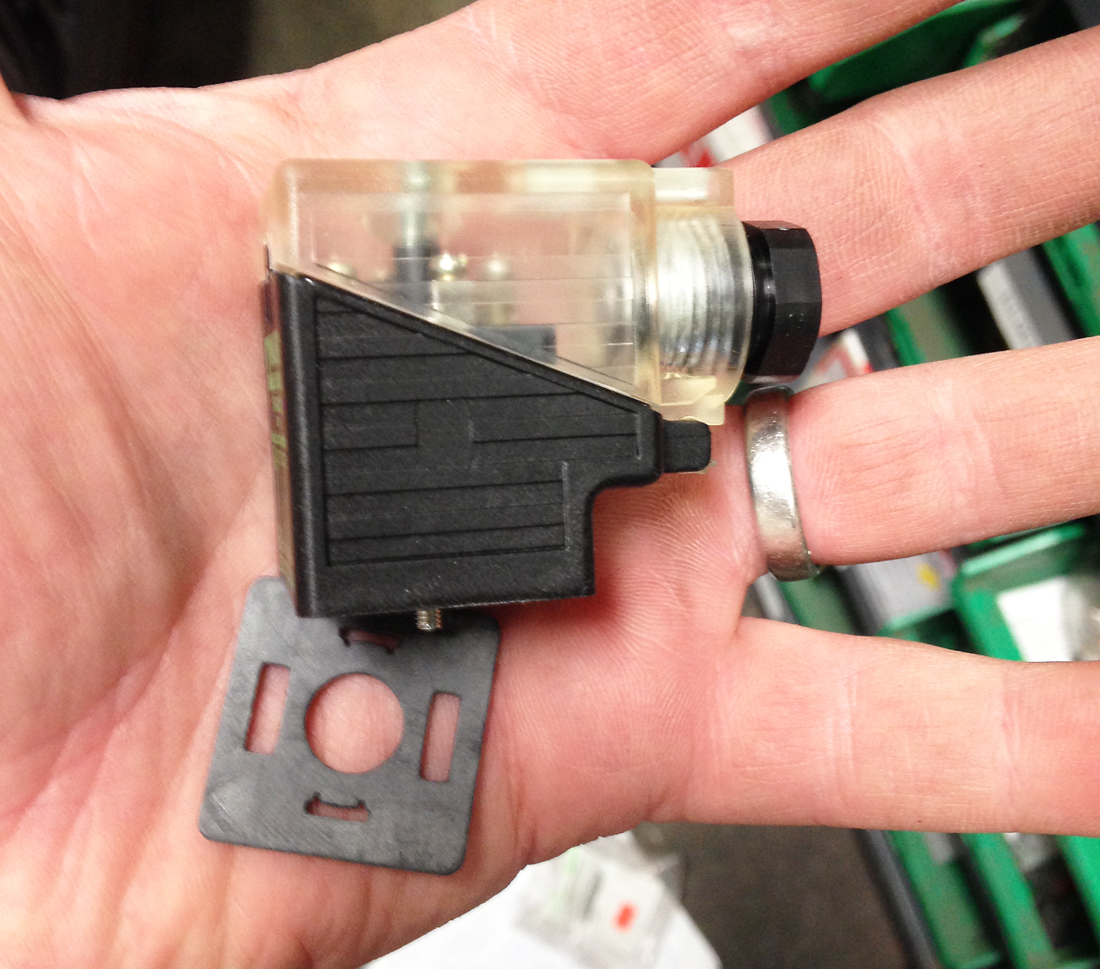

W-104691 - DIN PLUG

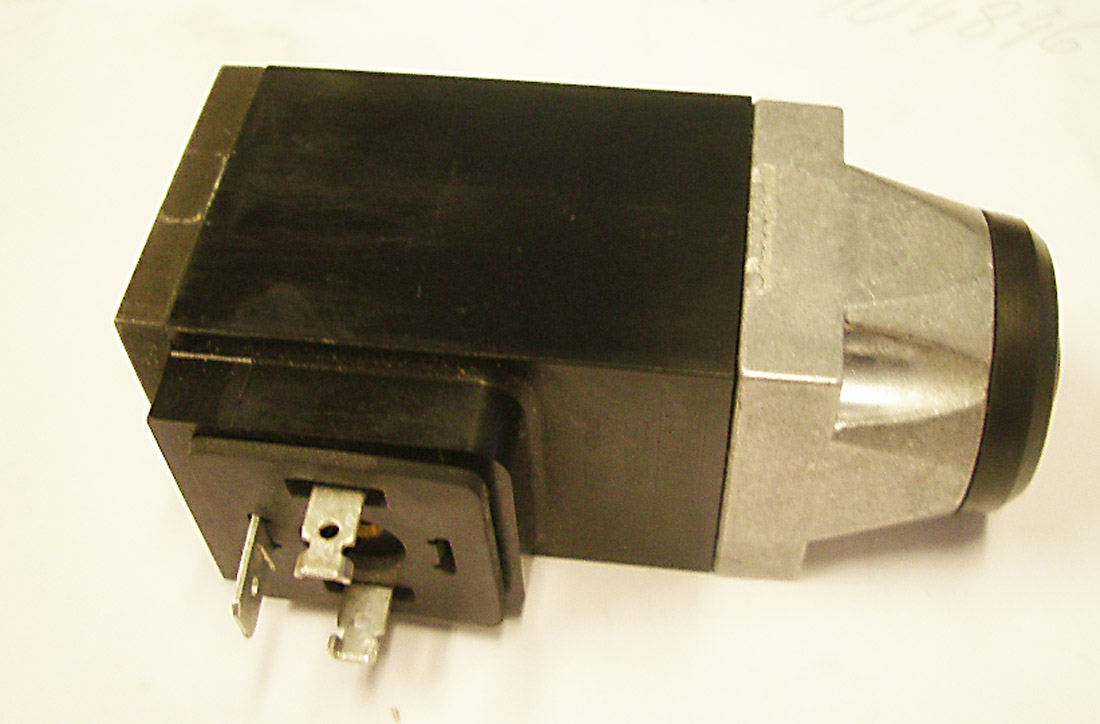

W-105606 - COIL FOR A W-105582

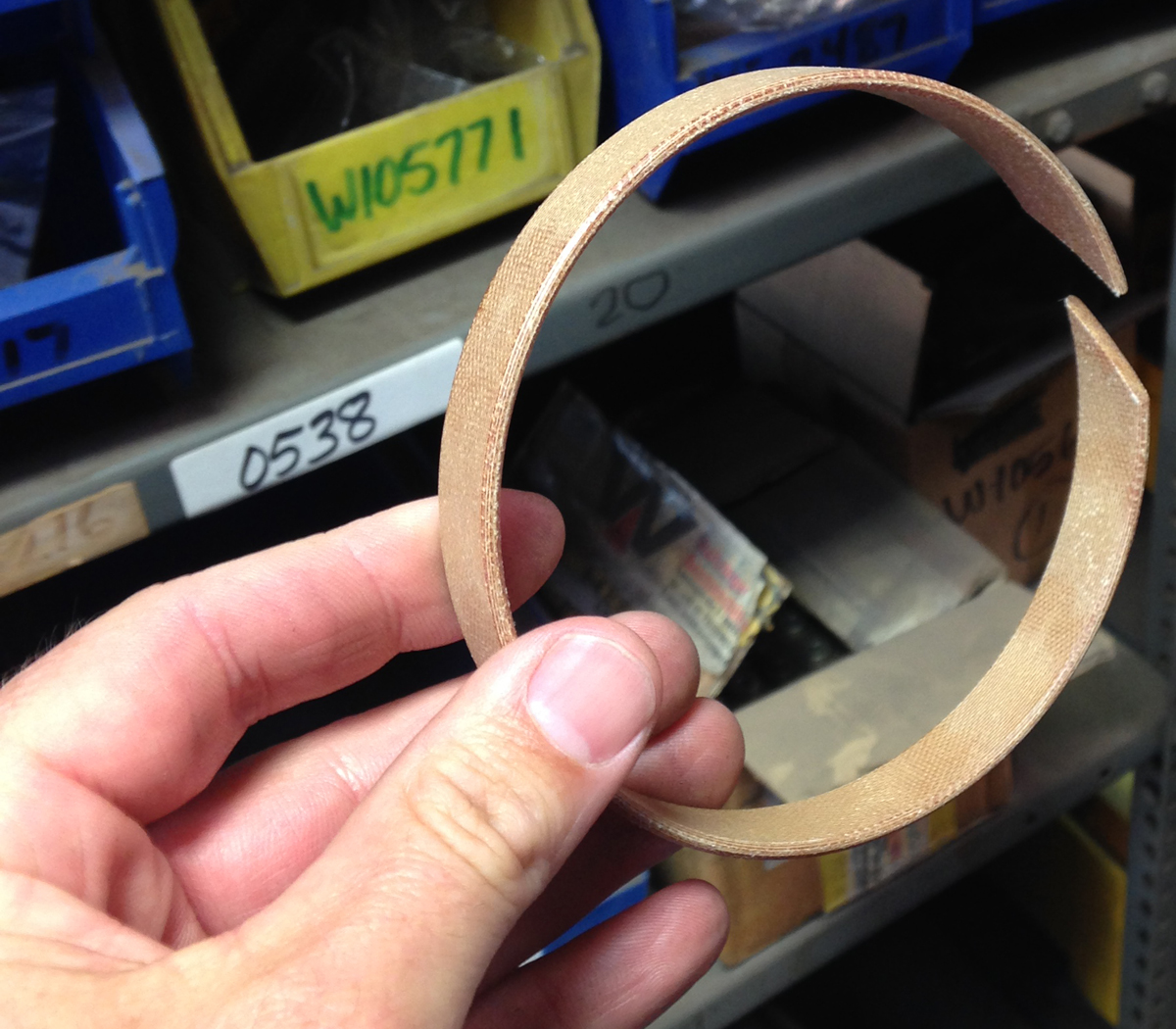

W-106096 - WEAR RING, ROD END

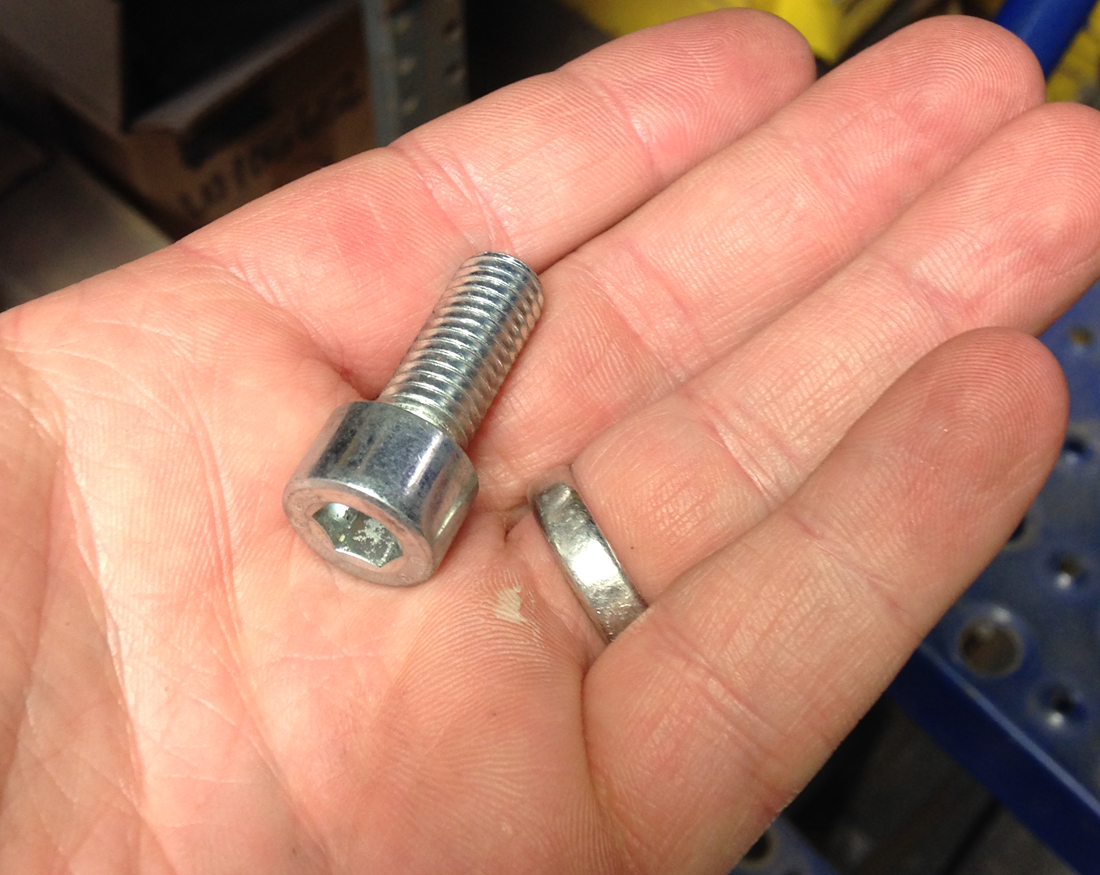

W-106654 - SET SCREW

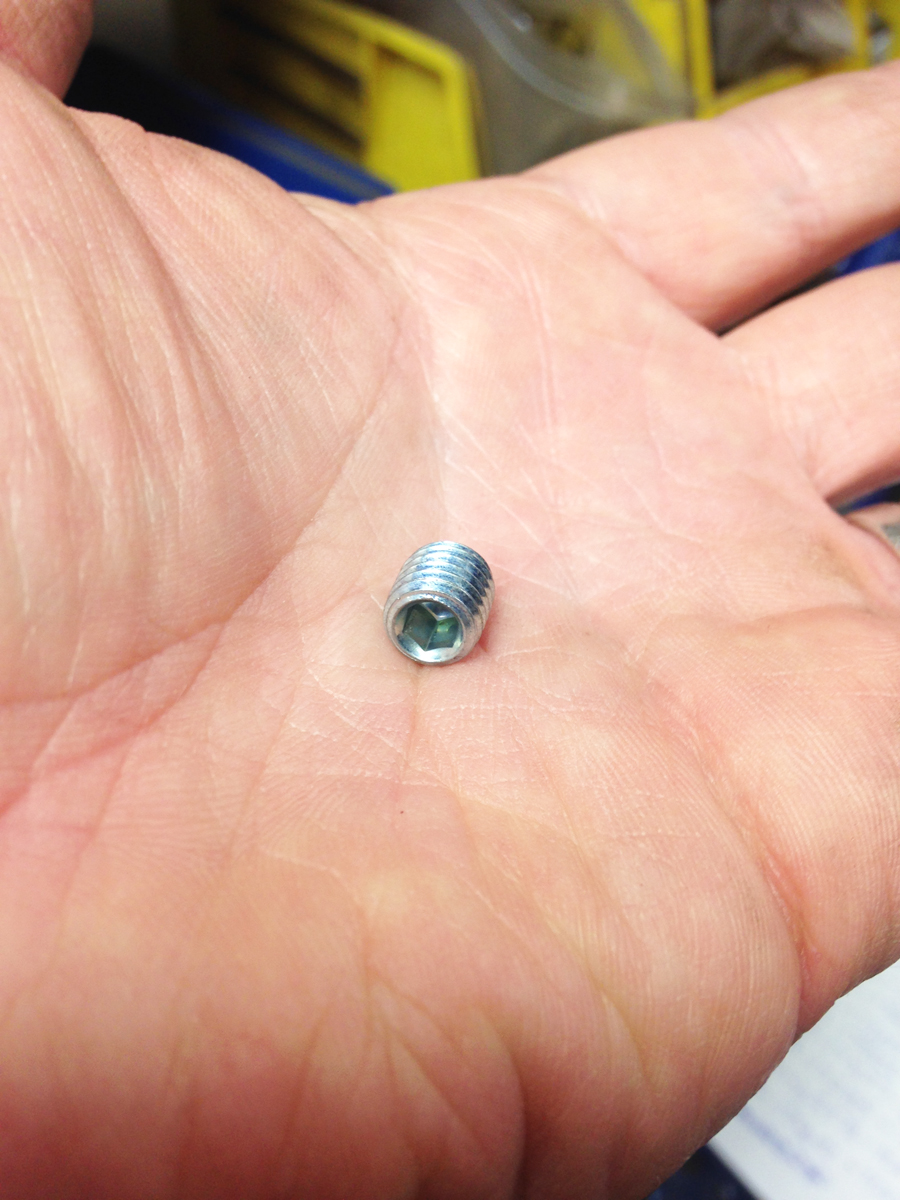

W-106824 - SET SCREW, M 8X8

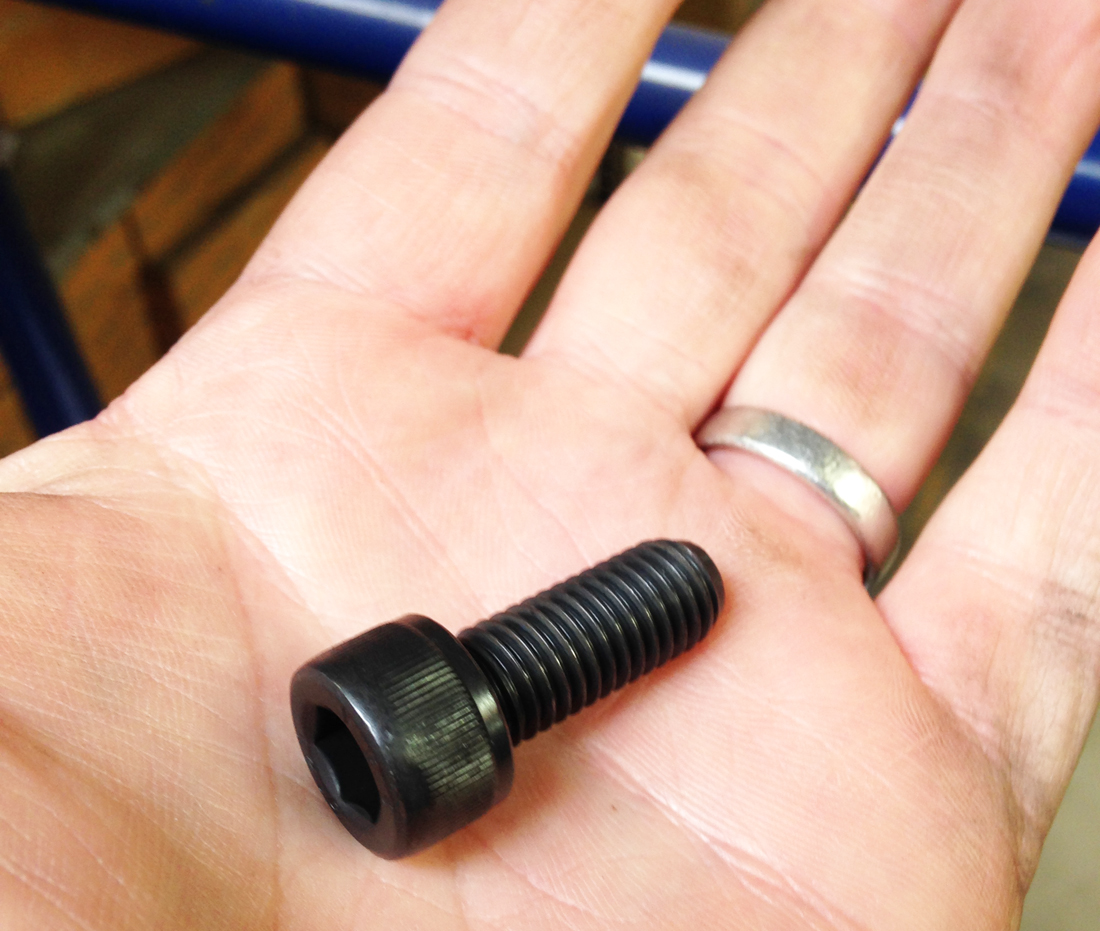

W-109528 - CHEESEHEAD SCREW, M10X25

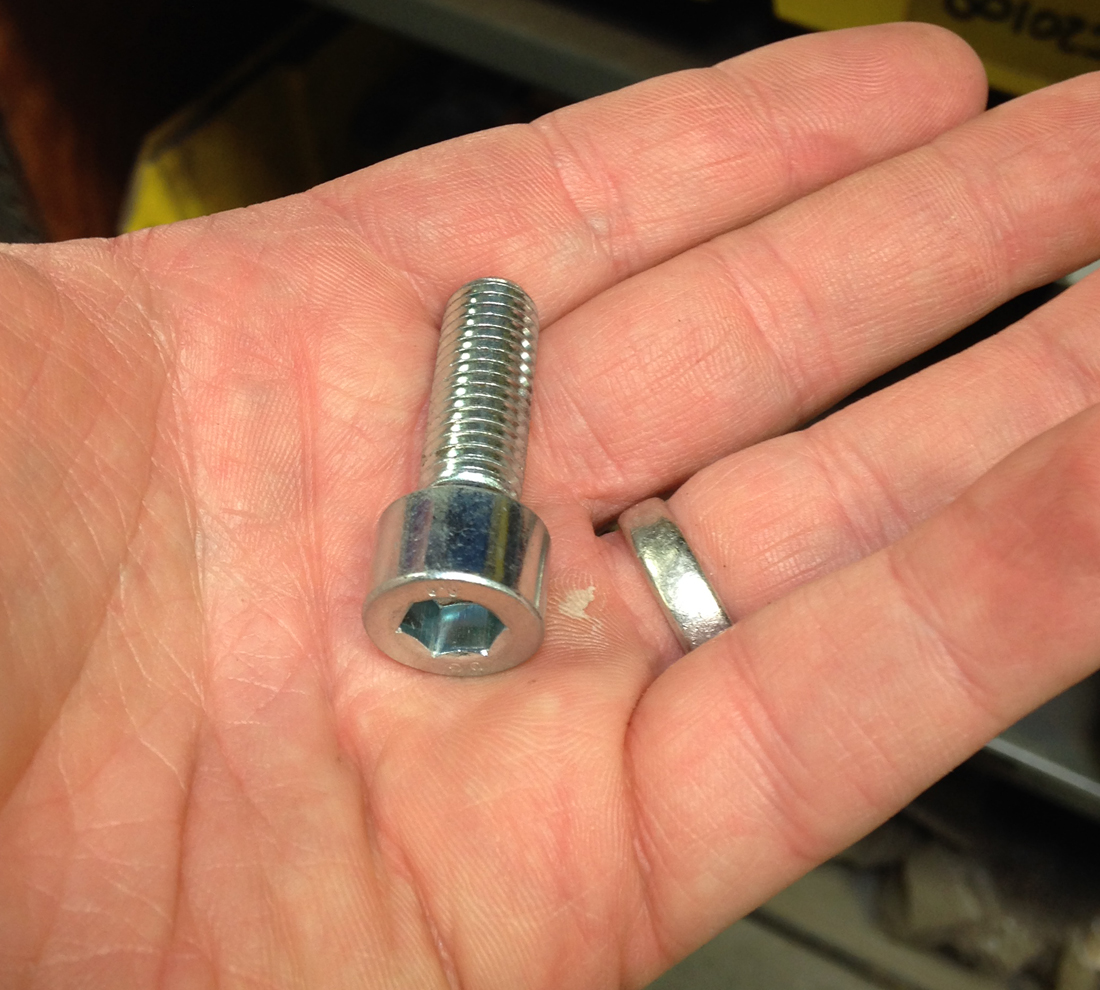

W-193826 - SHCS

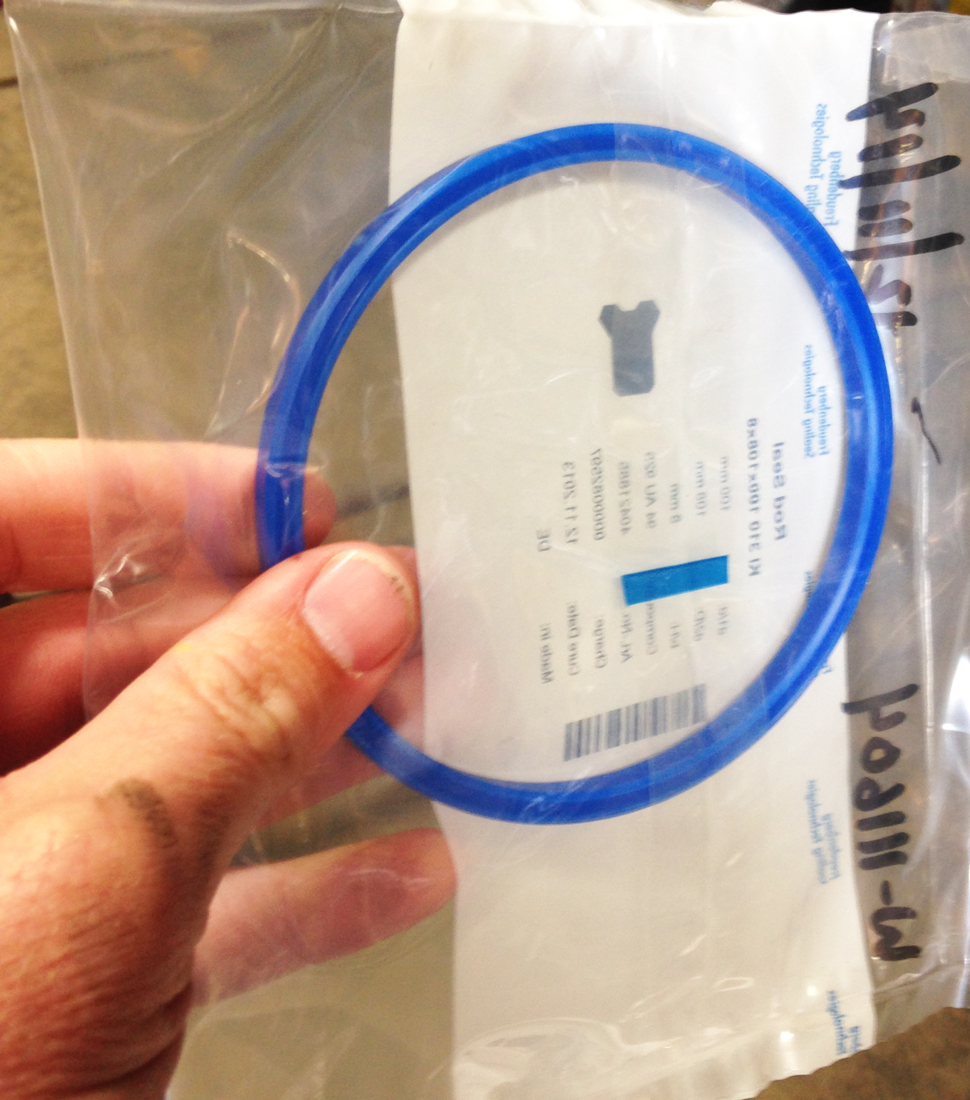

W-111604 - SEAL

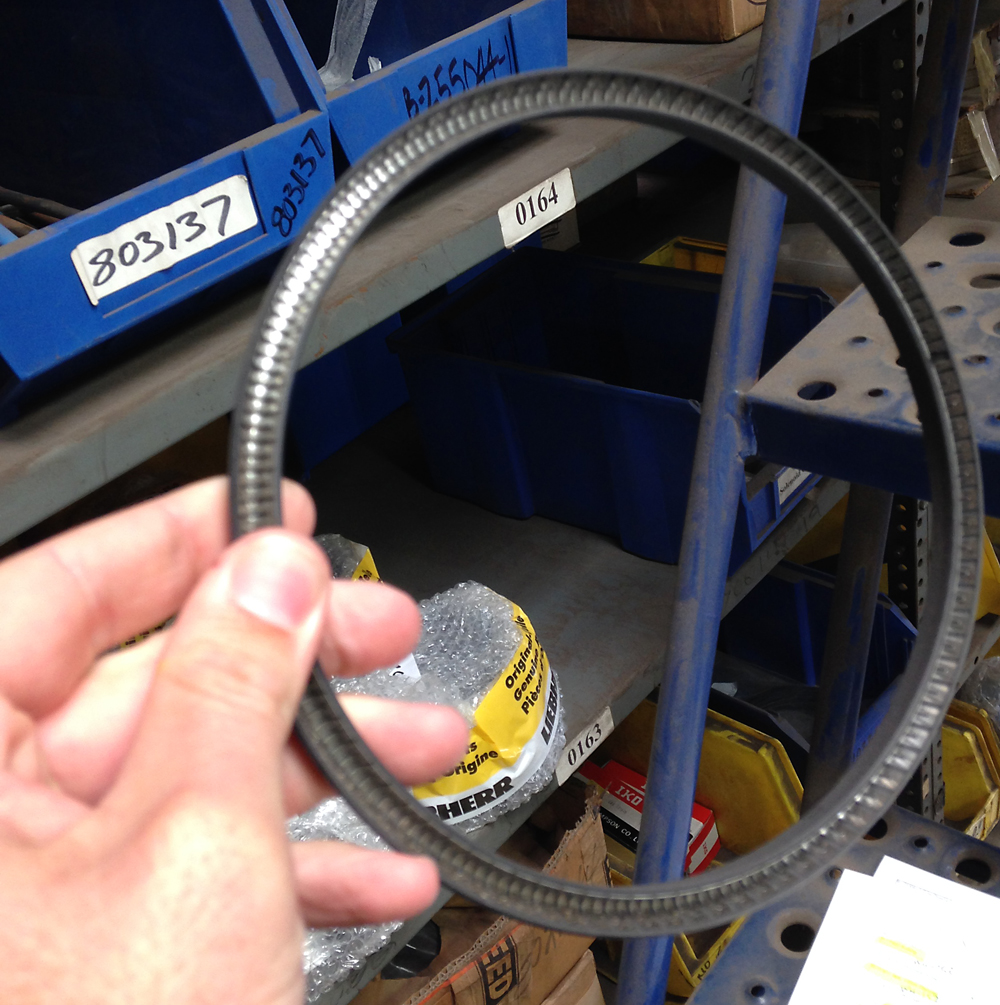

W-111611 - SEAL
