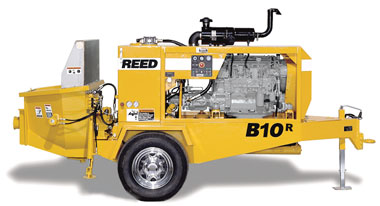

B10R (Refractory)

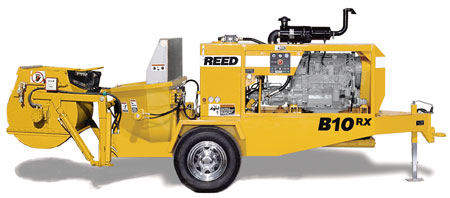

B10RX (B10R with Optional 10ft3 Paddle Mixer)
*B10R Specifications*
B10R Refractory Pumps Feature...
High Pressure (2100 psi). This conveys tough refractory materials long distances with ease.
High Horsepower Deutz 4 Cylinder Diesel Engine (84Hp). This provides the most power in refractory pumps. (Electric power is also available).
3" Material Cylinders, 3" Straight-thru Swing Tube, 3" Outlet. No Reduction at the Pump. This allows all pressure created by the pump to be used to convey material through the line.
Heavy-duty Dual Swing Rams on the Swing Tube. This allows you to swing through high-density, low slump mixes with ease.
Smooth-feeding, easy-to-clean, High-Pressure Reinforced Hopper.
